3 Engineering Information
3.1 Sealing and Material Concept

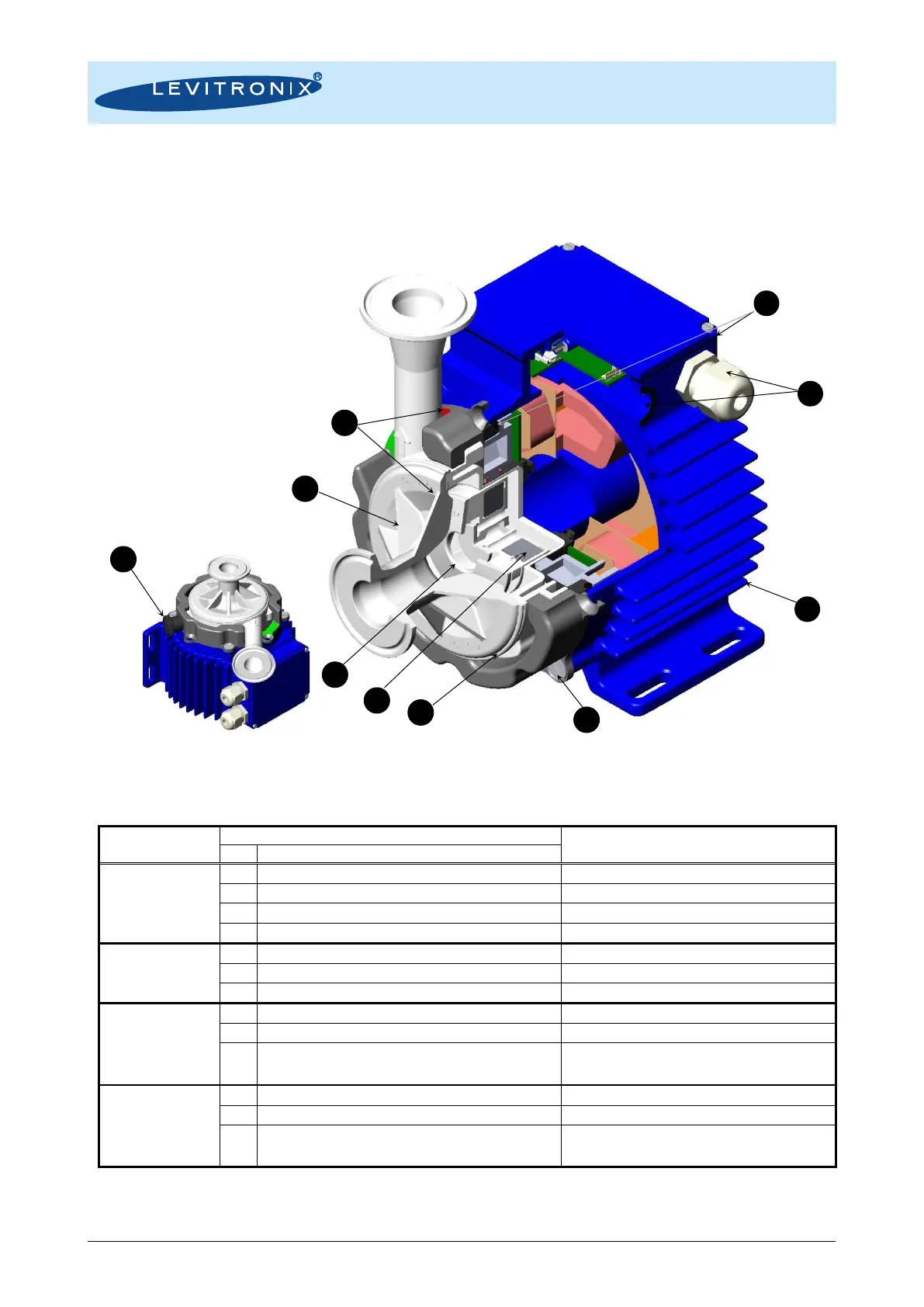

Figure 12: Sealing and material concept
(Motor LPM-600.x, pump head DCP-600.2 and pump head socket PHS-600.1)
System
Component
Item
Materials
No
Description
Pump Head
DCP-600.2
1
Pump housing (lid and bottom)
PP (polypropylene)
2
Impeller
PP (polypropylene)
3
Rotor magnet
Rare-earth material
4
Welding seam (lid and bottom)
Infrared welding
Pump Head Socket
PHS-600.1
5
Pump head socket ring
Anodized Aluminum
6
4x M6x18mm screws for motor mounting
Stainless Steel (INOX A4)
7
Locking Pin
PA
Motor
LPM-600.5
8a
Sealing O-ring and gasket for motor housing
FPM (= FKM)
9a
Cable bushing
PVDF, cable jacket is PVC
10a
Motor housing (blue)
Epoxy coating, waterproof (IP-67)
Coils and electromagnetic circuit potted with an
epoxy compound (UL94 V0).
Motor
LPM-600.4
8b
Sealing O-ring and gasket for motor housing
FPM (= FKM)
9b
Cable bushing
FPM, cable jacket is FEP
10b
Motor housing (grey)
ETFE coating, waterproof (IP-67)
Coils and electromagnetic circuit potted with an
epoxy compound (UL94 V0).
Table 7: Materials used in the LPM-600.x motors, DCP-600.2 pump head and PHS-600.1 pump head socket
(For other configurations refer to according specifications and drawings)
3
2
1
4
5
6
9
8
7
10
