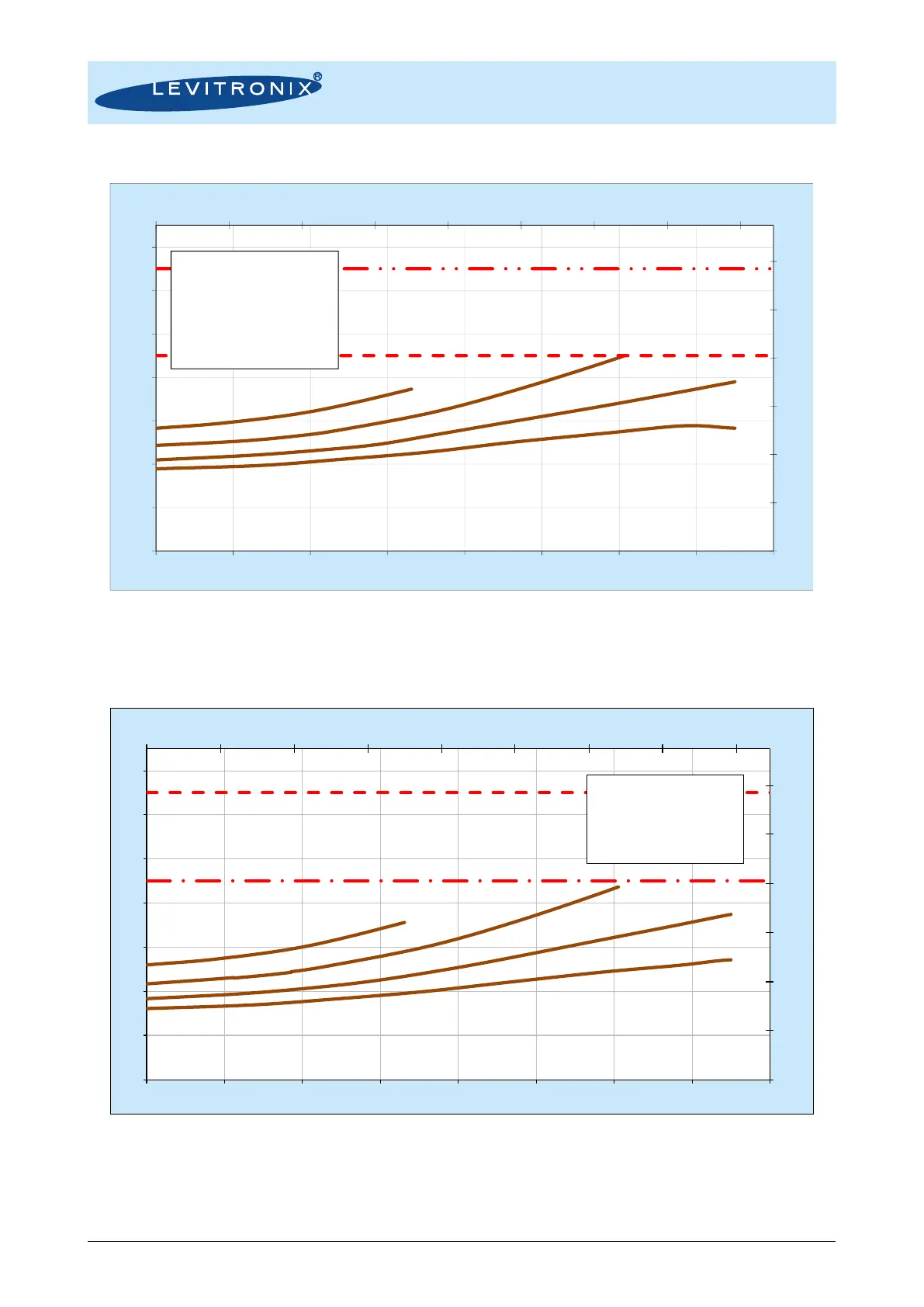

Figure 18: Temperature curves of motor LPM-600.x with air cooling module ACM-600.2
(Typical data for motor with pump head DCP-600.2. Temperature measured inside of the motor, contact temp. of surface is below this temperature.))
Figure 19: Temperature curves of motor LPM-600.x with fan cooling module FCM-600.1
(Typical data for motor with pump head DCP-600.2. Temperature measured inside of the motor, contact temp. of surface is below this temperature.)
77
97
117
137
157
177
197
0 2.5 5 7.5 10 12.5 15 17.5 20
25
35
45
55
65
75
85
95
0 10 20 30 40 50 60 70 80
[F]
[gallons/min]
[°C]
[liters/min]
Ambient Temp = 25 C
Liquid Temp. = 60 C
Specific gravity = 1 g/cm3
Viscosity = 0.7 cP
Air cooling with ACM-600.1
or ACM-600.2
1bar, ~20 C air
8000 rpm
7000 rpm
6000 rpm
9000 rpm
Absolute Temperature Limit
Recommended Operational Limit
77
97
117
137
157
177
197
0 2.5 5 7.5 10 12.5 15 17.5 20
25
35
45
55
65
75
85
95
0 10 20 30 40 50 60 70 80
[°F]
[gallons/min]
[°C]
[liters/min]
Ambient Temp = 25C
Liquid Temp. = 60C
Specific gravity = 1 g/cm3
Viscosity = 0.7 cP
Fan cooling with FCM-600.1
Absolute Temperature Limit
Recommended Operational Limit
9000 rpm
8000 rpm
6000 rpm
7000 rpm
