Lexmark CS410 series User Manual

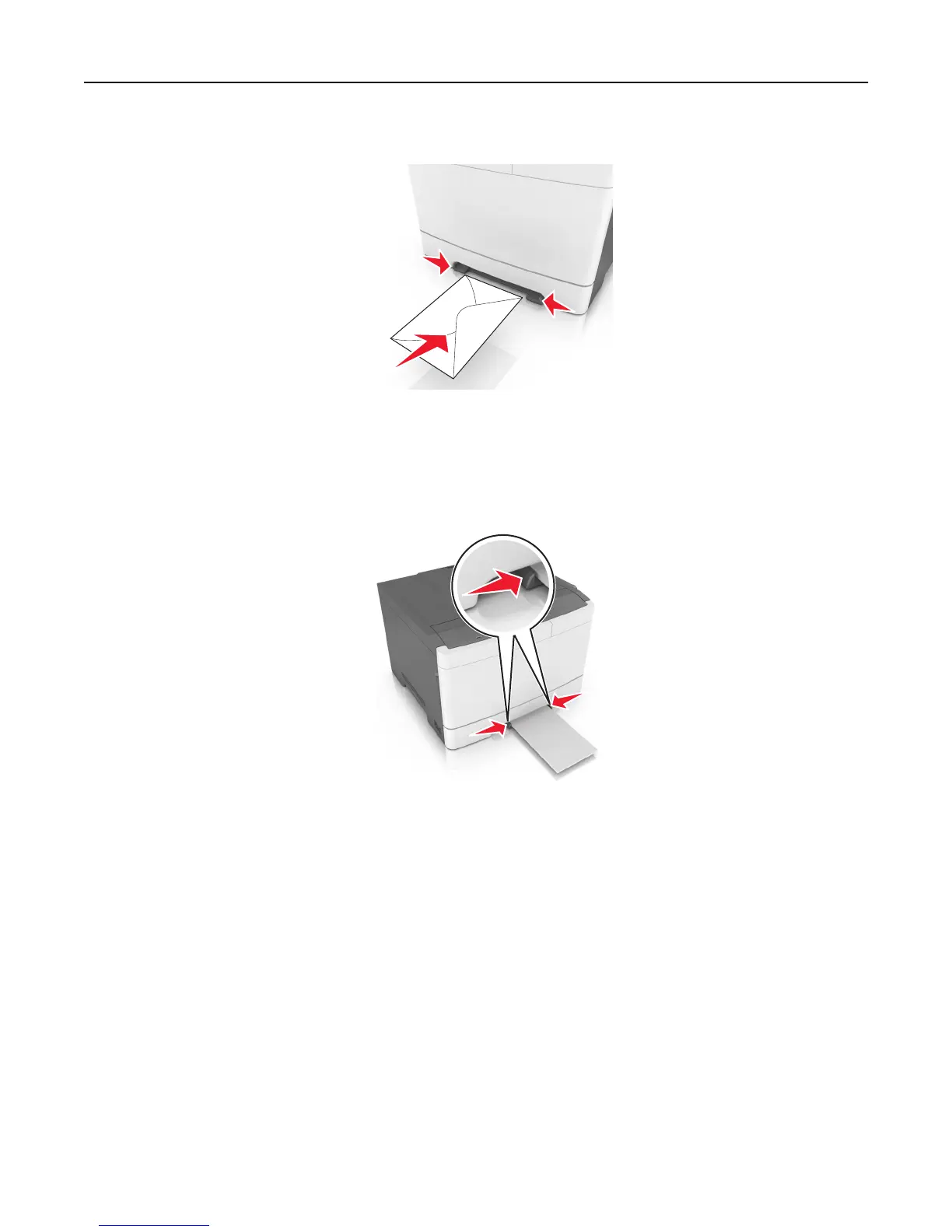

• Load envelope with the flap side up and against the right side of the paper guide.
2 Feed paper into the manual feeder only to the point where its leading edge can contact the paper guides.
Note: To achieve the best possible print quality, use only high‑quality media designed for laser printers.
3 Adjust the paper guides to the width of the paper loaded.
Warning—Potential Damage: Do not force the paper into the feeder. Forcing the paper may cause jams.
Linking and unlinking trays
The printer links trays when the specified paper size and type are the same. When a linked tray becomes empty, paper
feeds from the next linked tray. To prevent trays from linking, assign a unique custom paper type name.
Linking and unlinking trays
Note: This feature applies only in network printers.
1 Open a Web browser, and then type the printer IP address in the address field.
Notes:
• View the printer IP address in the TCP/IP section in the Network/Ports menu. The IP address appears as four
sets of numbers separated by periods, such as 123.123.123.123.
Loading paper and specialty media 39

Lexmark CS410 series Specifications

General

Print Technology	Color Laser
Print Speed (Letter, Black)	32 ppm
Print Speed (Letter, Color)	32 ppm
Print Resolution (Black)	1200 x 1200 dpi
Print Resolution (Color)	1200 x 1200 dpi
Processor Speed	800 MHz
First Page Out Time (Black)	9 seconds
Maximum Paper Size	8.5 x 14 inches
Supported Operating Systems	Windows, Mac OS, Linux
Monthly Duty Cycle	75, 000 pages
Input Capacity	250 sheets
Output Capacity	150 pages
Connectivity	USB, Ethernet
First Page Out Time (Color)	9.5 seconds
Recommended Monthly Page Volume	750 to 3, 000 pages
