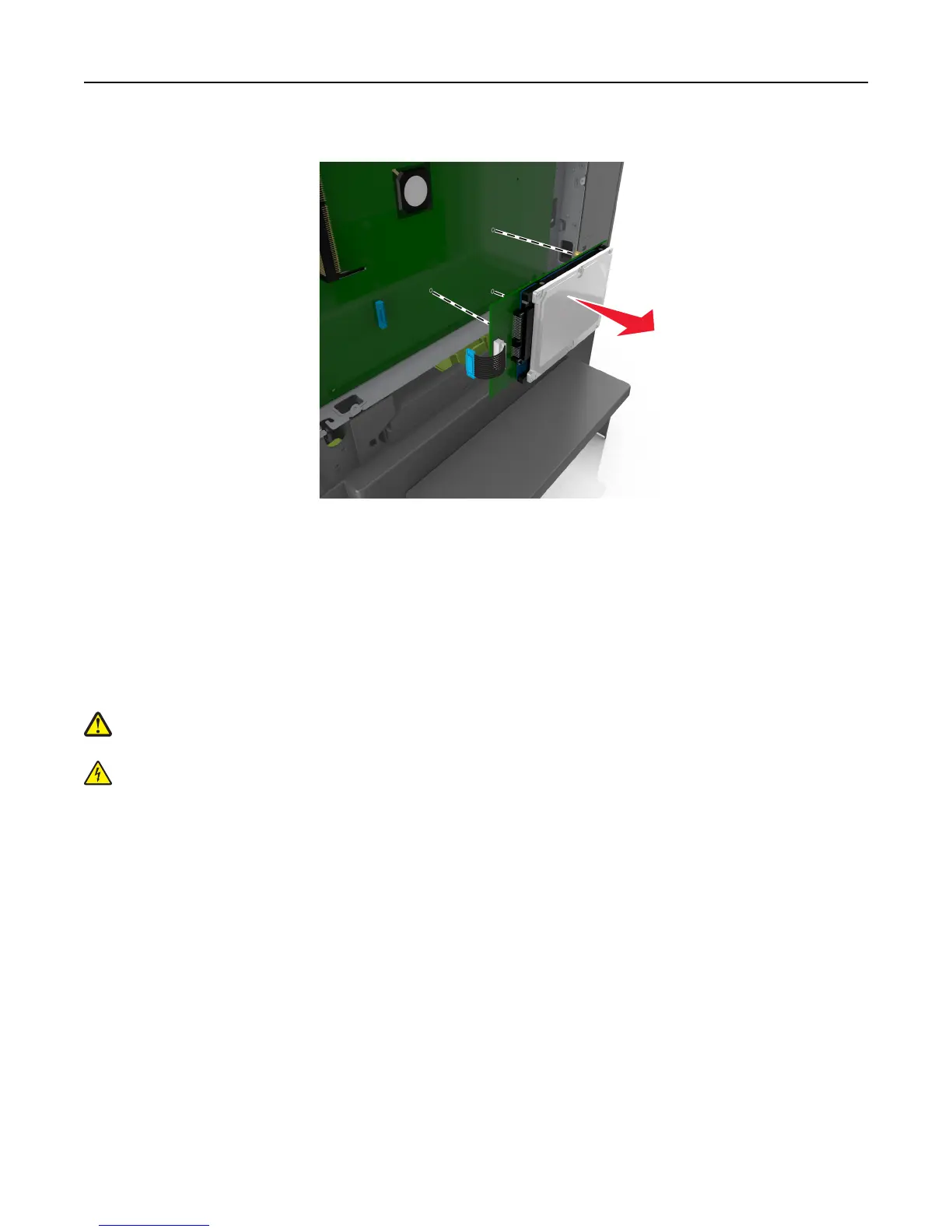

3 Remove the printer hard disk by pulling it away from the controller board.
4 Set aside the printer hard disk.
5 Close the controller board access cover.
Installing hardware options
Order of installation
CAUTION—POTENTIAL INJURY: The printer weight is greater than 18 kg (40 lb), and requires two or more
trained personnel to lift it safely.
CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or
memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord
from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn
them off as well, and unplug any cables going into the printer.
Install the printer and any optional tray in the following order:
• Optional 550‑sheet tray (Tray 3)
• 650‑sheet duo tray (Tray 2)
• Printer
Additional printer setup 36
