Lexmark MS321 Service Manual

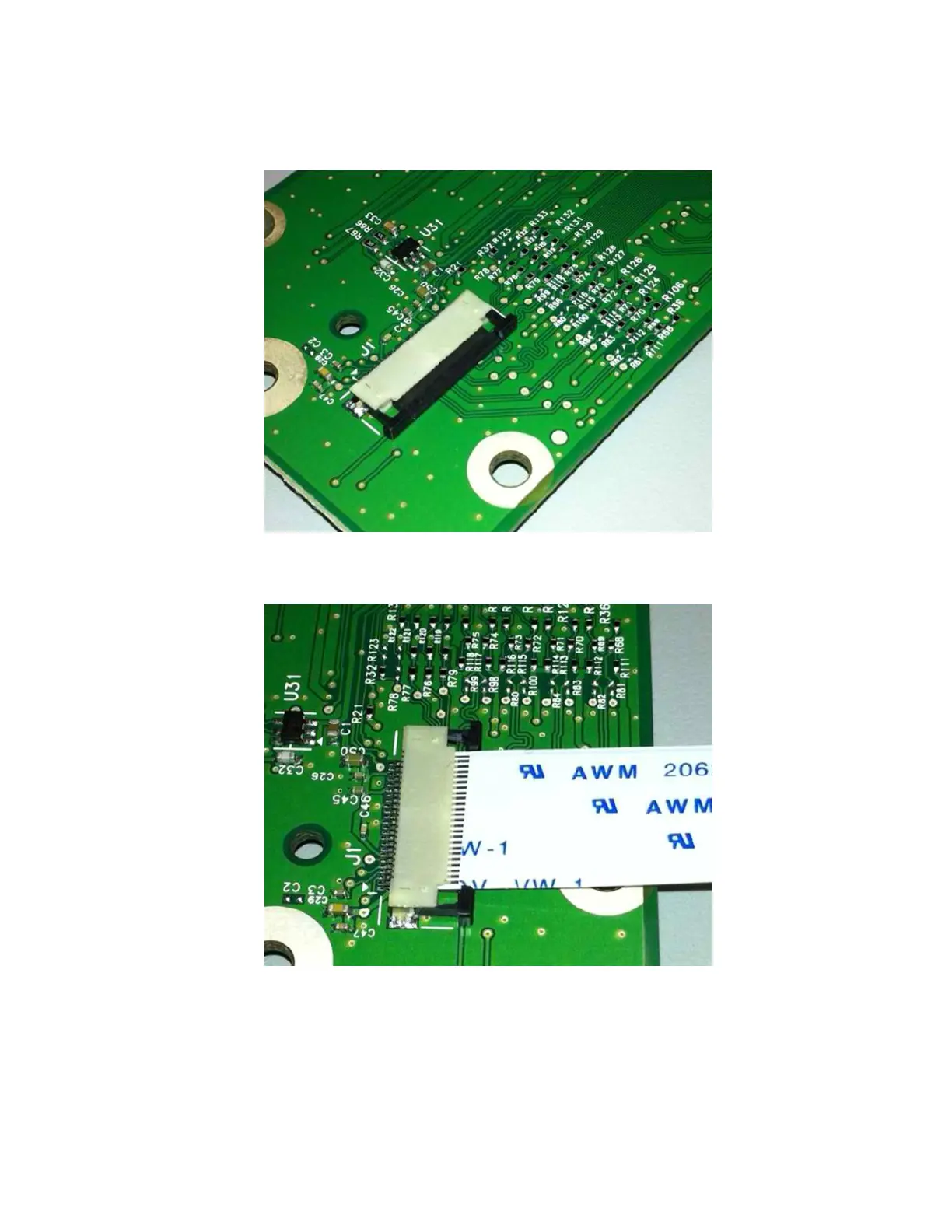

Inserting a cable into the horizontal sliding contact connector
1 When installing the cable, check the locking actuator to verify it is in the open position. If you are opening
the connector, pull back on both end tabs using equal force to avoid breaking the connector.
2 Insert the cable with the contacts on the cable facing away from the locking actuator. Insert the cable on
top of the actuator.
4600-830, -835, -895
Parts removal
172

Lexmark MS321 Specifications

General

Print Technology	Monochrome Laser
Memory	256 MB
Display	2-line LCD
Processor Speed	1 GHz
Maximum Monthly Duty Cycle	50, 000 pages
Recommended Monthly Page Volume	500 - 5000 pages
Input Capacity	250 sheets
Output Capacity	150 sheets
Connectivity	USB, Ethernet
Network Connectivity	Ethernet
Supported Operating Systems	Windows, Mac, Linux
Print Resolution	Up to 1200 x 1200 dpi
