Lexmark MS321 Service Manual

Front removals

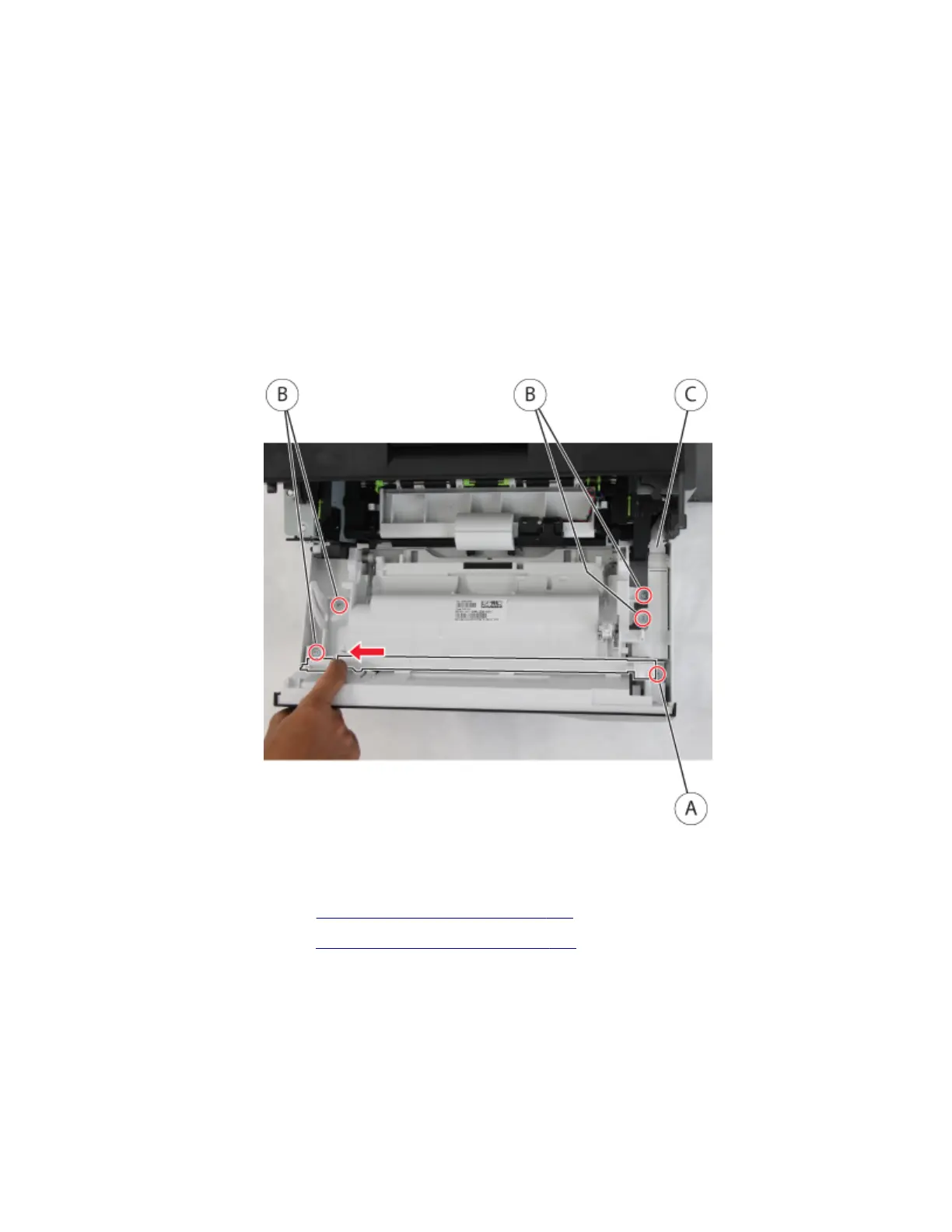

Nameplate removal
1 Open the front door.
2 Push the latch to the left, and then remove the screw (A).
3 Remove the four screws (B).
4 Remove the nameplate.
Note: The MPF hinders the removal.
Warning—Potential Damage: Avoid damaging the cable (C) when removing the nameplate.
MPF with front access cover removal
1 Remove the nameplate. See “Nameplate removal” on page 201.
2 Remove the right cover. See “Right cover removal” on page 186.
4600-830, -835, -895
Parts removal
201

Lexmark MS321 Specifications

General

Print Technology	Monochrome Laser
Memory	256 MB
Display	2-line LCD
Processor Speed	1 GHz
Maximum Monthly Duty Cycle	50, 000 pages
Recommended Monthly Page Volume	500 - 5000 pages
Input Capacity	250 sheets
Output Capacity	150 sheets
Connectivity	USB, Ethernet
Network Connectivity	Ethernet
Supported Operating Systems	Windows, Mac, Linux
Print Resolution	Up to 1200 x 1200 dpi
