Lexmark MS321 Service Manual

Paper present sensor flag removal
1 Remove the rear cover. See “Rear door and cover removal” on page 234.
2 Remove the power supply. See “Power supply removal” on page 216.
3 Remove the duplex. See “Duplex assembly removal” on page 218.

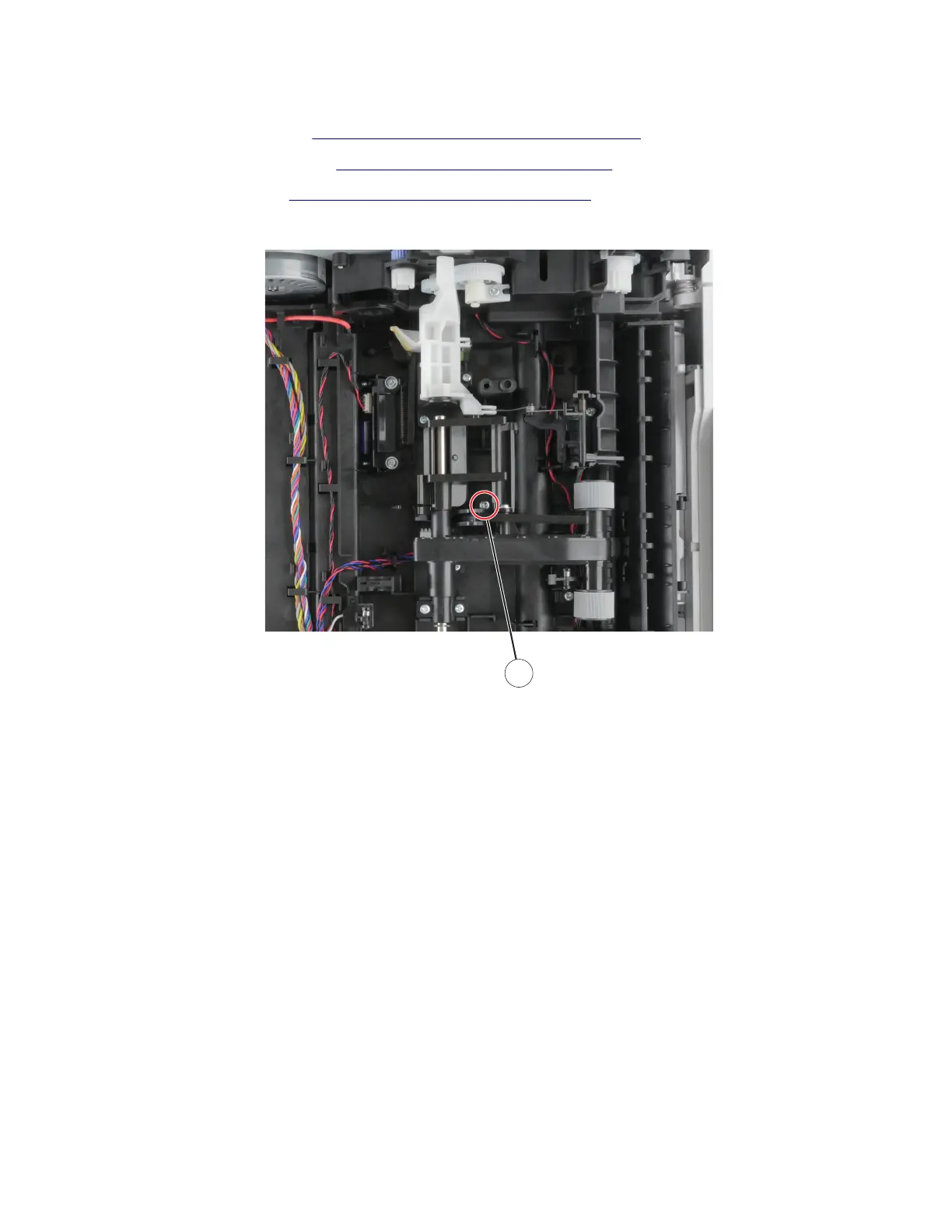

4 Remove the screw (A).
A
5 Lift the pick roller assembly, and then rotate the sensor flag to remove it.
Installation notes:
a Lift the pick roller assembly.
b Install the
flag
as shown.
Notes:
• Make sure that the bar (A) is between the fingers of the flag (B).
• Make sure that the two bosses (C) are inside the holes.
• Make sure that the finger (D) is aligned with the sensor (E).
4600-830, -835, -895
Parts removal
228
