Horizontal sliding contact connector
This FRU contains a horizontal sliding contact connector. Read the instructions before proceeding.
The horizontal sliding contact connector uses a slide locking actuator to lock the ribbon cable into the Zero
Insertion Force (ZIF) connector. The cable is inserted horizontally into the connector.
Warning—Potential Damage: When opening or closing this type of actuator, gently push or pull the two tabs
located on each end of the actuator. Do not close the actuator from the center of the actuator. Do not use a
screwdriver to open or close the actuator. Damage to the cable or connector could occur.
Removing a cable from the horizontal sliding contact connector

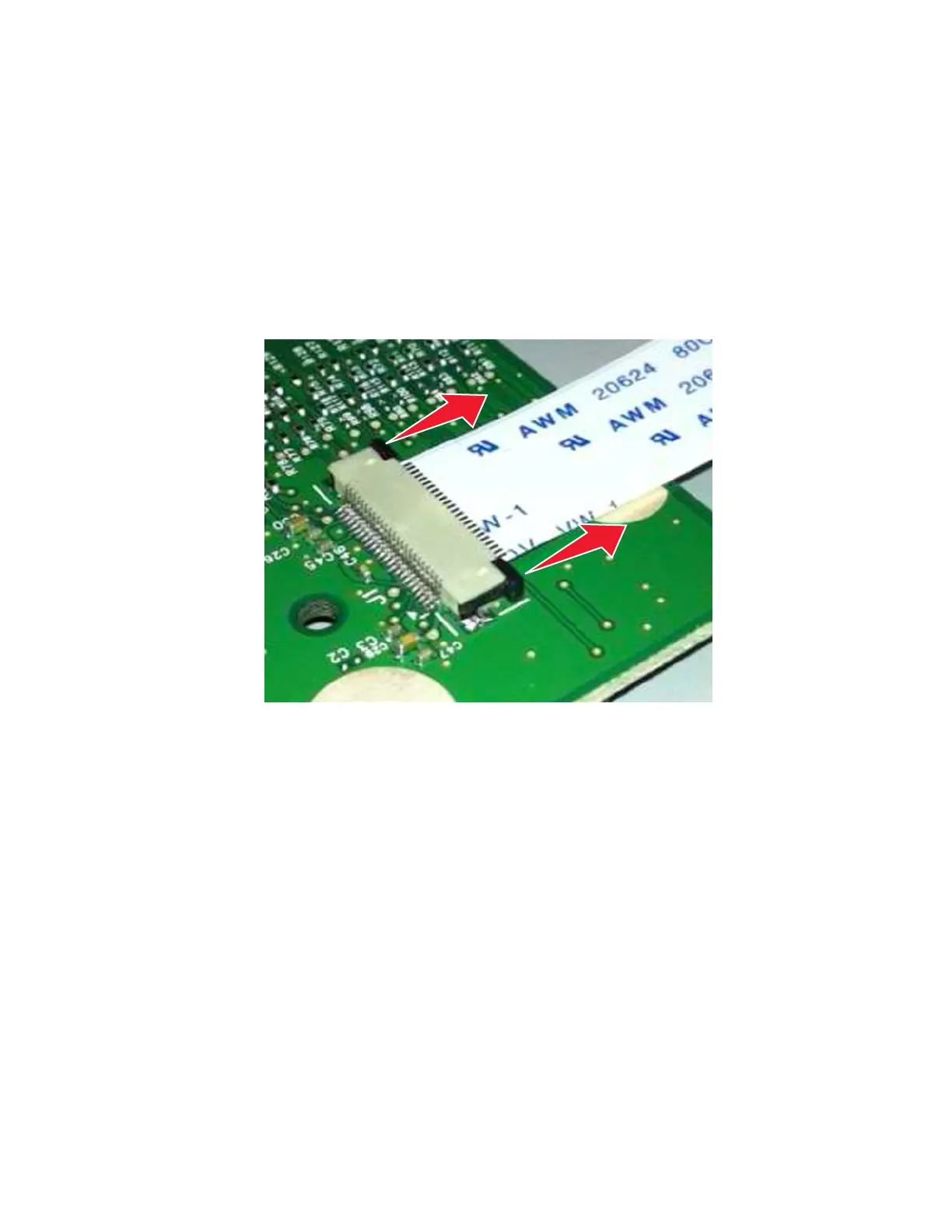

1 Simultaneously slide the two tabs located on the ends of the locking actuator away from the connector.
2 Slide the cable out of the connector.
4600-830, -835, -895
Parts removal
171
