Lexmark MS321 Service Manual

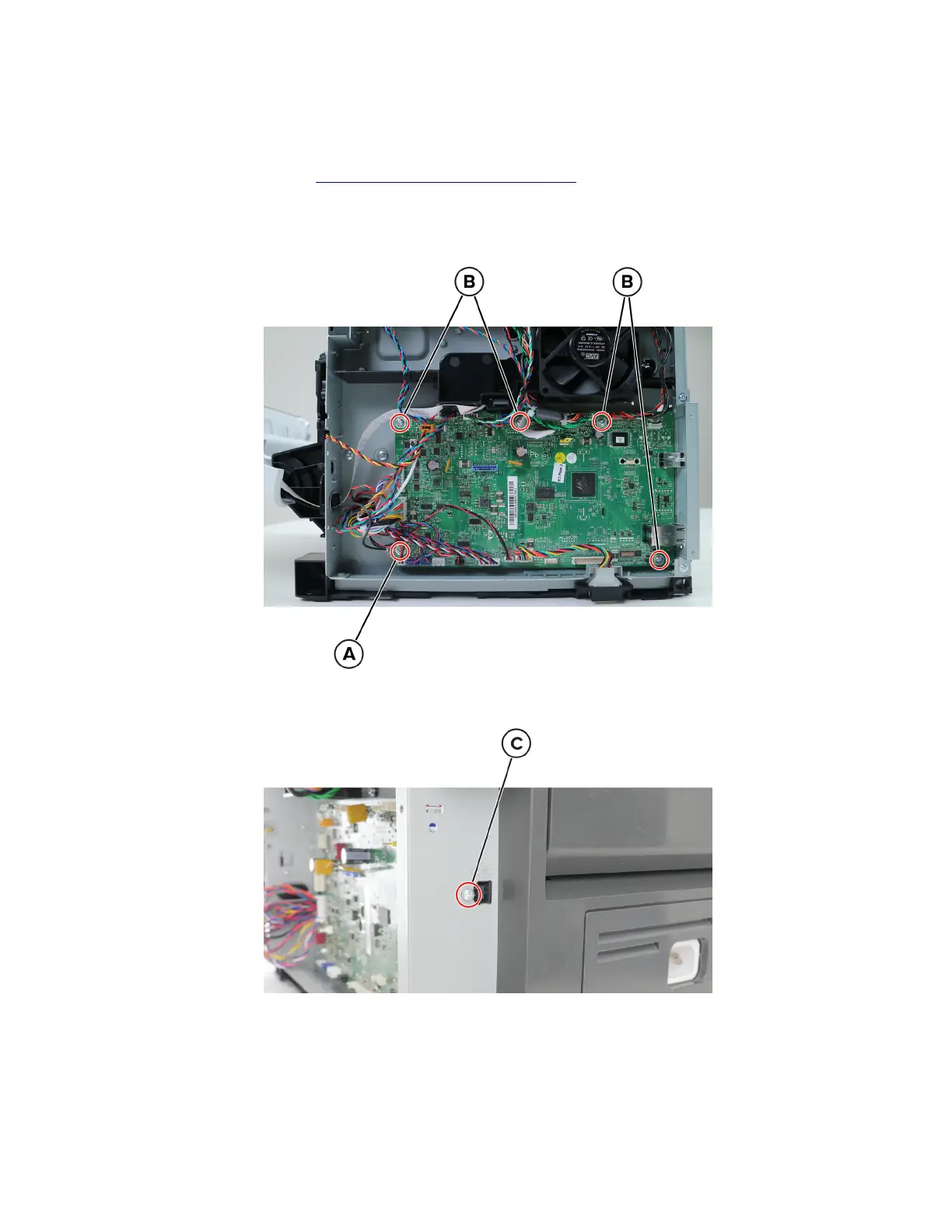

Controller board removal
MS621 controller board
1 Remove the right cover. See “Right cover removal” on page 186.
2 Disconnect all the cables.
3 Remove the ground screw (A) and the four screws (B).
4 Remove the screw (C).
5 Remove the controller board.
4600-830, -835, -895
Parts removal
194

Lexmark MS321 Specifications

General

Print Technology	Monochrome Laser
Memory	256 MB
Display	2-line LCD
Processor Speed	1 GHz
Maximum Monthly Duty Cycle	50, 000 pages
Recommended Monthly Page Volume	500 - 5000 pages
Input Capacity	250 sheets
Output Capacity	150 sheets
Connectivity	USB, Ethernet
Network Connectivity	Ethernet
Supported Operating Systems	Windows, Mac, Linux
Print Resolution	Up to 1200 x 1200 dpi
