Lexmark MS321 Service Manual

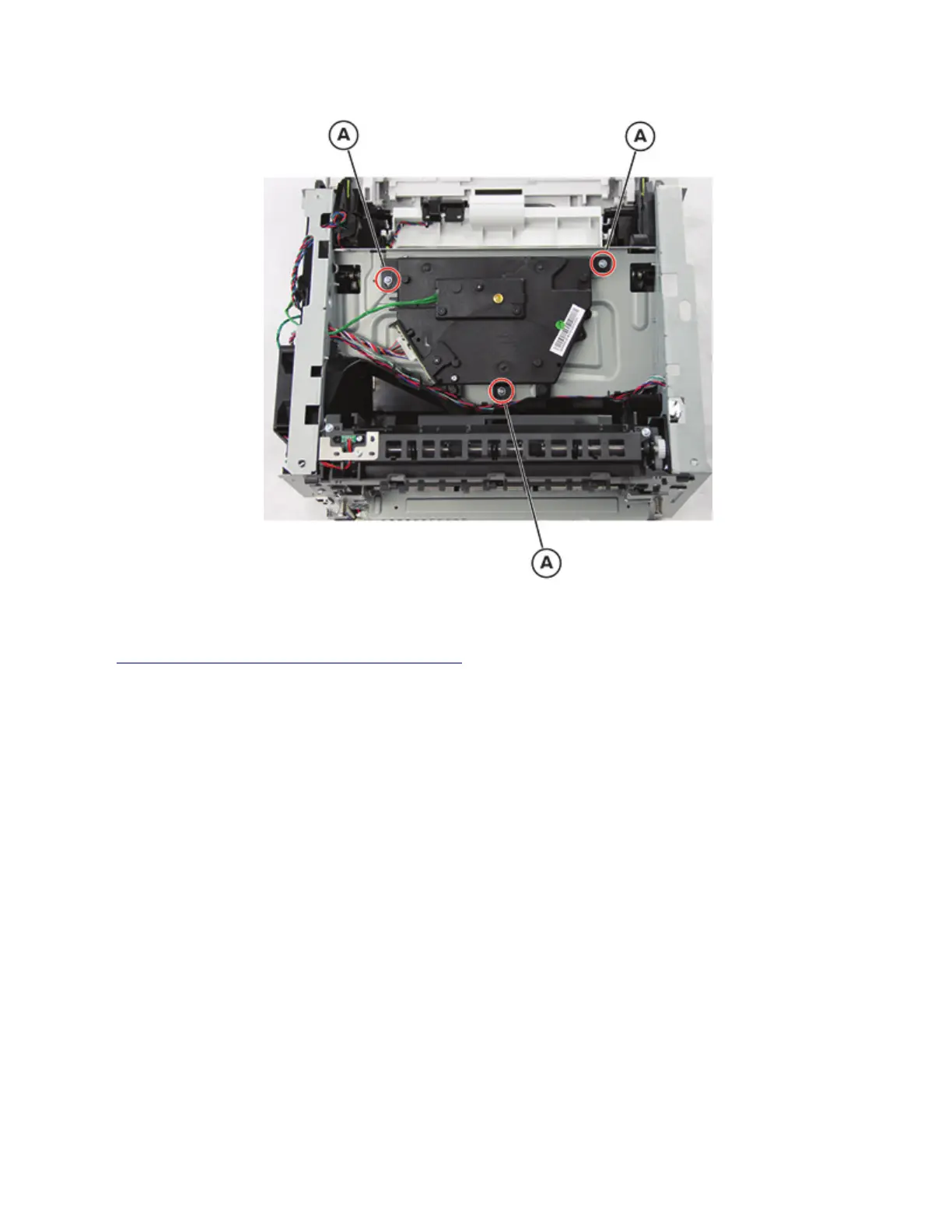

7 Remove the three screws (A).
8 Remove the printhead.
Installation note: Perform all the mechanical and electronic adjustments to the printhead after replacing it.
See
“Printhead assembly adjustment” on page 175.
4600-830, -835, -895
Parts removal
241

Lexmark MS321 Specifications

General

Print Technology	Monochrome Laser
Memory	256 MB
Display	2-line LCD
Processor Speed	1 GHz
Maximum Monthly Duty Cycle	50, 000 pages
Recommended Monthly Page Volume	500 - 5000 pages
Input Capacity	250 sheets
Output Capacity	150 sheets
Connectivity	USB, Ethernet
Network Connectivity	Ethernet
Supported Operating Systems	Windows, Mac, Linux
Print Resolution	Up to 1200 x 1200 dpi
