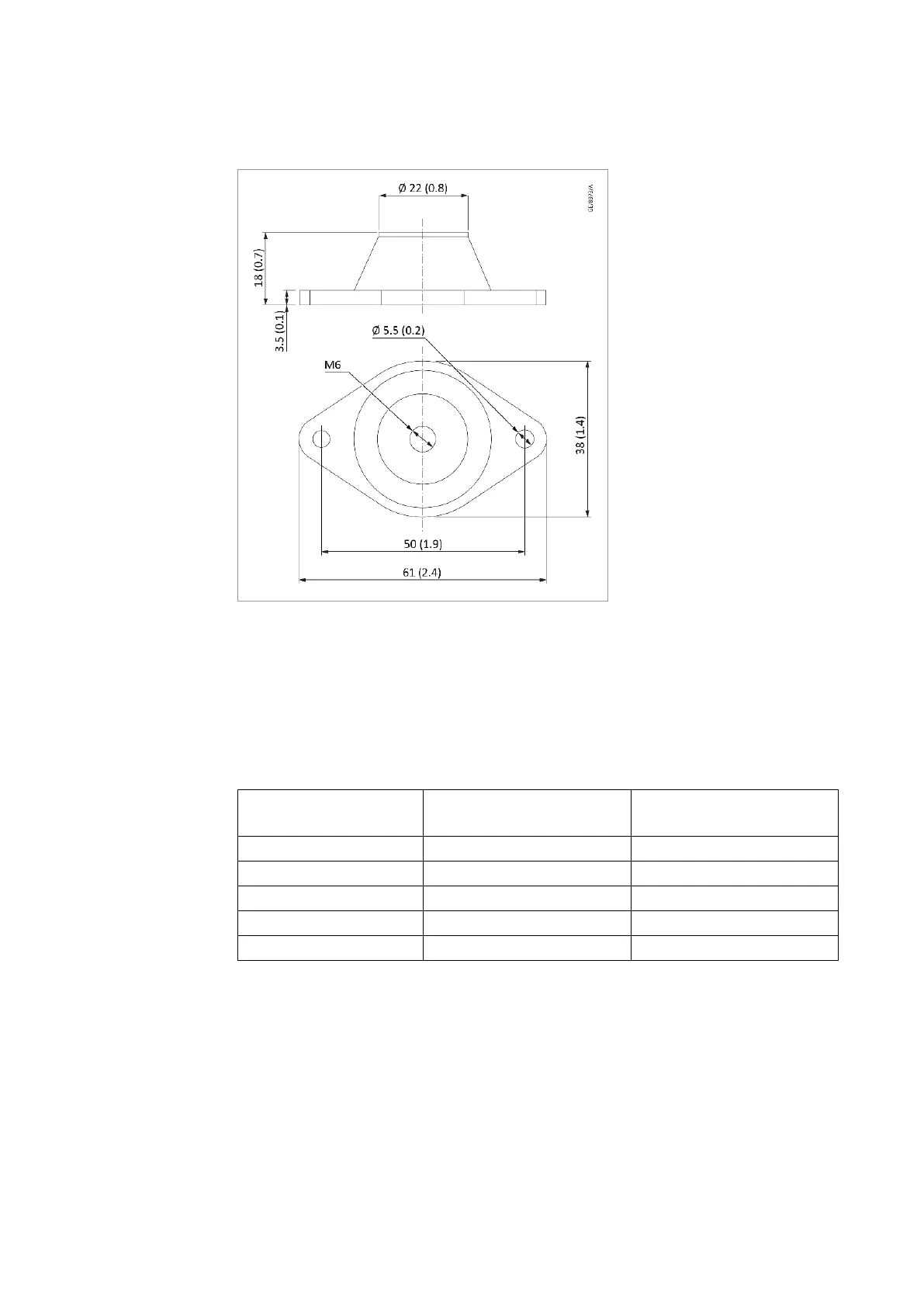

LEYBOLD SCROLLVAC plus - Chemical Resistance Conversion Kit; Figure 19. Vibration Isolator Dimension

Figure 19. Vibration isolator dimension

8.1.6Chemical resistance conversion kit
The adapter kit allows the conversion of a standard pump into an C‑version
pump. This conversion may be necessary if anticipating the use of the pump
on applications involving corrosive substances.
Table 17. Supplied equipment:
Part
Quantity for SCROLLVAC
7/10/15 plus
Quantity for SCROLLVAC
18 plus
Valve pad (Chemraz) 2 4
Valve spring 2 4
19.6 ID O-ring 2 2
NW25 stainless steel port 2 2
NW25 port O-ring 2 2
Installation
Make sur
e the pump is switched off before tting. Discard all
used19.6IDO‑rings.
Refer to

300668736_002_C7 - © Leybold 53
Accessories
