1. Place the pump on a at and stable surface with the fan cowl facing1.
upwards

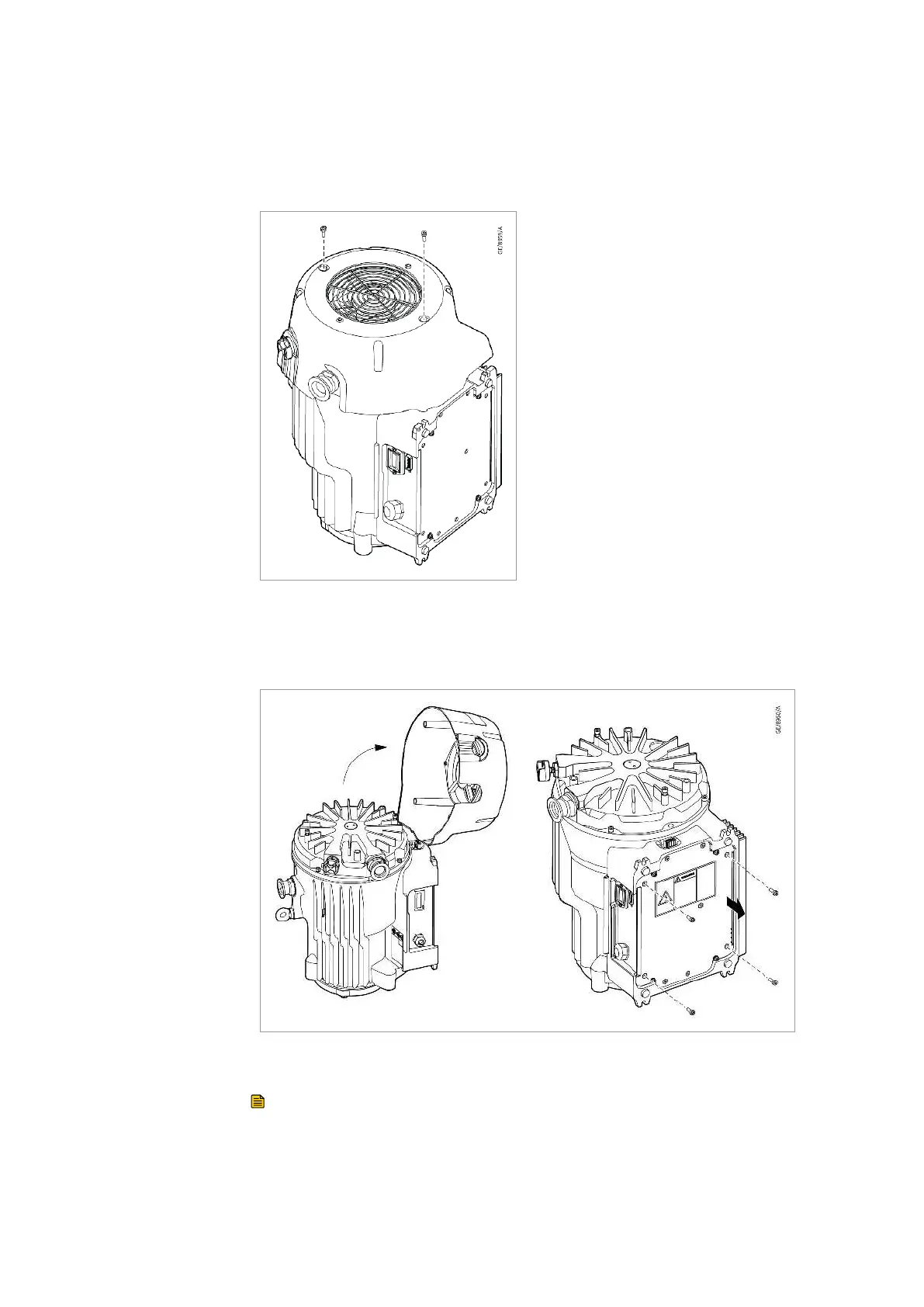

Figure 9. 3-phase pump-Installation setup
2. Remove the fan cowl via the two screws on the top and bottom of the2.
cowl. When the cowl is mechanically removed, disconnect the fan from
the electric terminal box via the thr
ee-way connector.
Figure 10. 3-phase pump-fan cowl removal
3. Remove the electric terminal box via the four M5 xing screws on the3.
under-side of the controller.
Note:
300668736_002_C7 - © Leybold 33
Installation
