COMPONENT ACCESS
REMOVING THE DOOR LA
REMOVING THE DOOR LA
TCH & DOOR SWITCH
TCH & DOOR SWITCH
WARNING
ELECTRICAL SHOCK HAZARD
Disconnect power before servicing the range.
Replace all panels before operating range.
Failure to do so can result in death or electrical
shock.
1. Turn off the electrical supply going to the range.
2. Open the oven door.
3. Raise the cooktop (see page 3-4 for the
procedure).

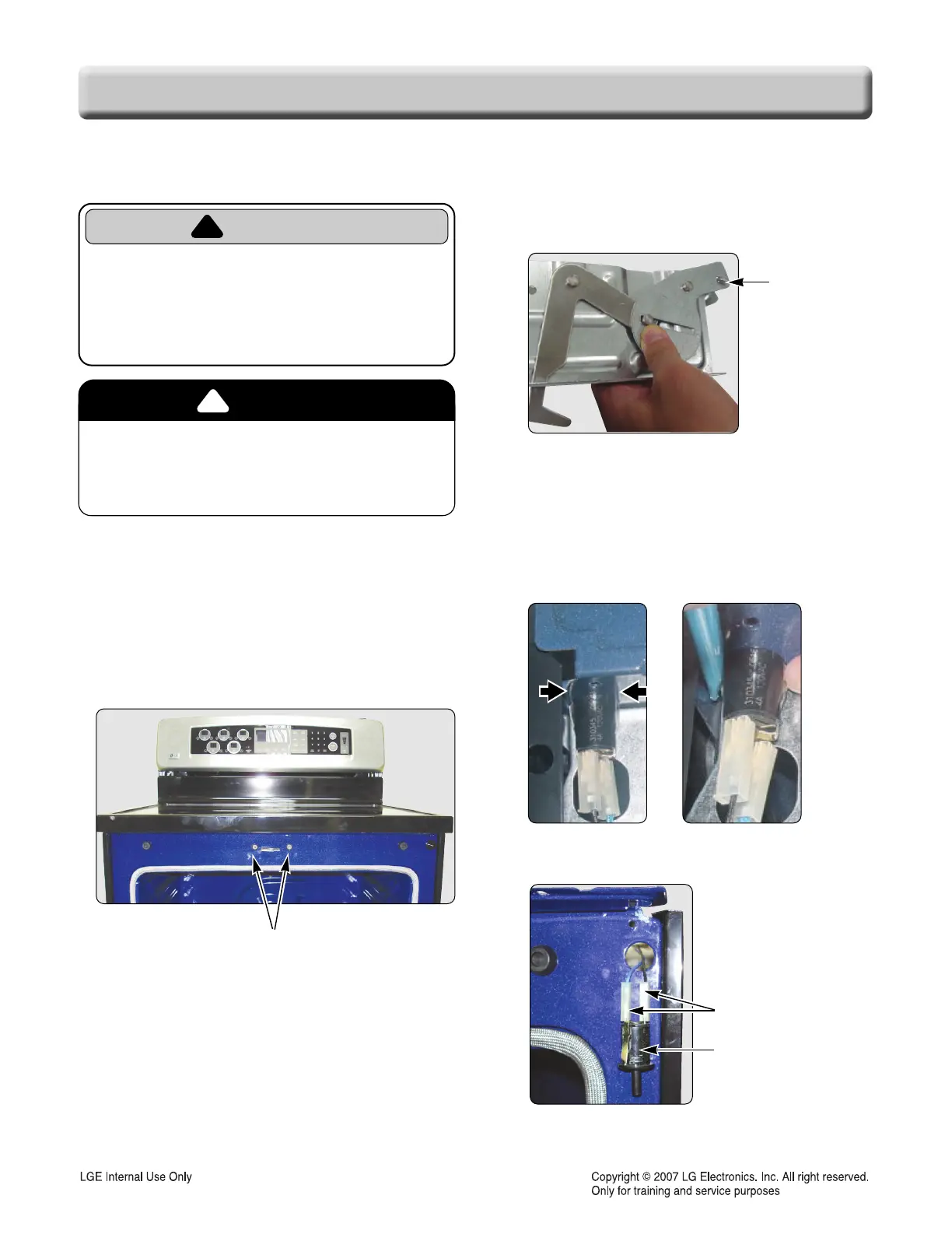

4. To remove the door latch:
a) Remove the two screws from the door latch
and remove the latch.
b) Remove the door latch from the burner box
and unhook the actuating rod.
5. To remove the door switch:
a) If not already done, raise the cooktop
(see page 3-4 for the procedure).
b) Remove the door switch from the range.
To do this, squeeze tabs and use a ratchet
extension or a small socket, and tap it out of
the hole with a hammer.
c) Disconnect the wires from the terminals.
!
CAUTION
When you work on the electric range, be careful
when handling the sheet metal parts. Sharp
edges may be present, and you can cut yourself if
you are not careful.
2 Screws
Unhook
Actuating
Rod
Wires
Door
Switch
To Next Page
