4-6
Center Rear(CR)
Element
;Warming Zone

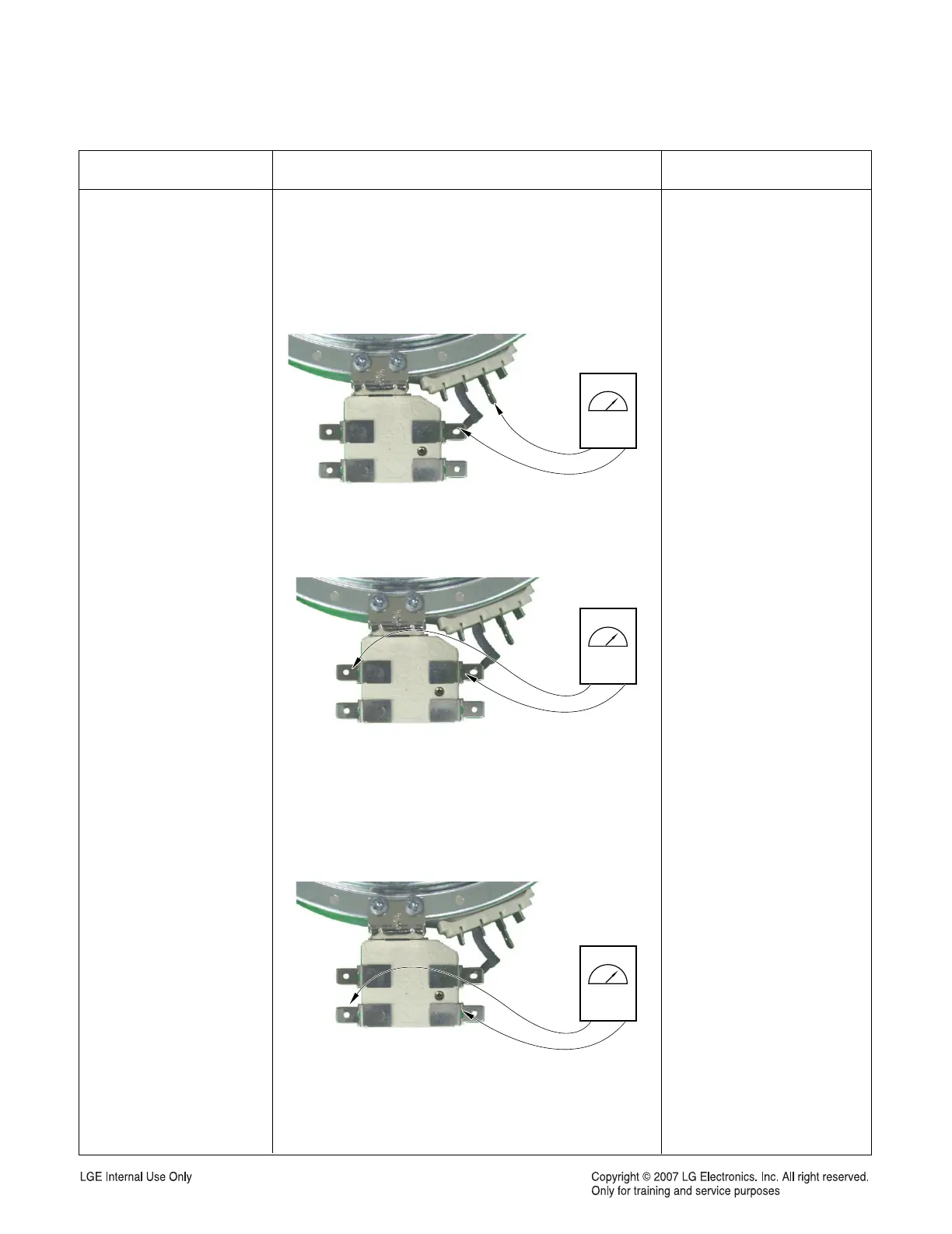

1. Refer to page 3-4 for the servicing procedure
2. Set the Multiple meter scale to the R x 1
3. Disconnect wires from CR elements
4. Touch the ohmmeter test leads to the element
terminal and 1A. The meter should indicate
565 Ω ± 10%
5. Touch the ohmmeter test leads to limiter
terminals 1A and 2A.the meter should indicate
continuity (0 Ω)
6. Touch the ohmmeter test leads to limiter
terminals 1B and 2B.
With the temperature below 150˚F, the meter
should indicate an open circuit(infinite).
With the temperature above 150˚F, the meter
should indicate continuity (0 Ω).
Components Test procedures Results
Normal: Approximately 565 Ω,
If not replace
Normal: continuity
(below 0.5 Ω)
If not replace
Below 150˚F
open circuit(infinite).
Above 150˚F
continuity (0 Ω)
Element
terminal
Element
terminal
1A
2A
1A
2B
1B
To Next Page
