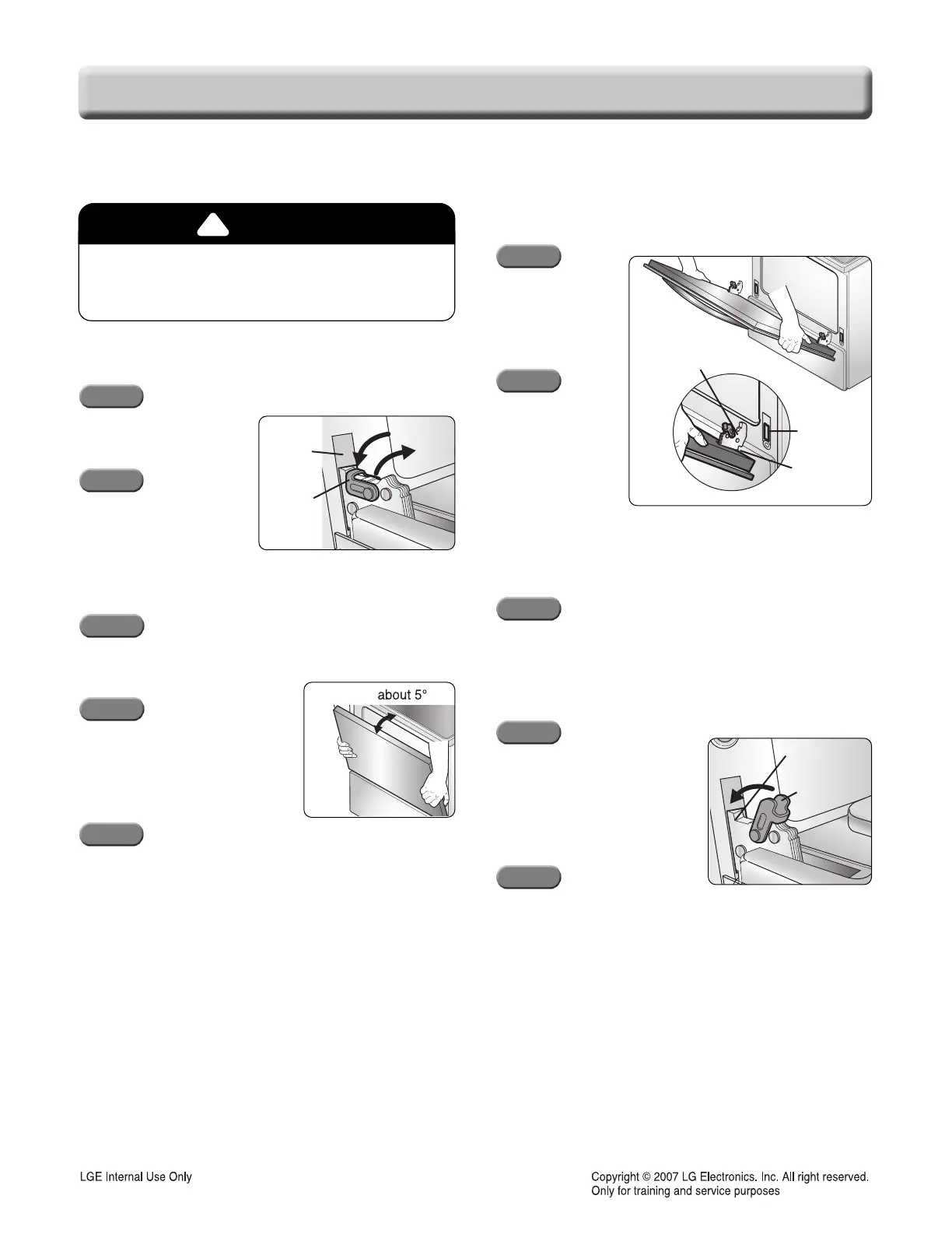

3-13
COMPONENT ACCESS
!
CAUTION
The door is very heavy. Be careful when
removing and lifting the door. Do not lift the door
by the handle.
REMOVING & REPLACING THE LIFT
REMOVING & REPLACING THE LIFT
-OFF OVEN DOOR
-OFF OVEN DOOR
To replace the door:
Step. 1
Firmly grasp both
sides of the door
at the top.
Step. 2
With the door at
the same angle as
the removal
position, seat the
indentation of the
hinge arm into the
bottom edge of the hinge slot. The notch in the hinge
arm must be fully seated into the bottom of the slot.
Step. 3
Fully open the door. If the door will not fully open, the
indentation is not seated correctly in the bottom edge
of the slot.
Step. 4
Push the hinge locks up
against the front frame of the
oven cavity to the locked
position.
Step. 5
Close the oven door.
To remove the door:
Step. 1
Fully open the door.
Step. 2
Pull the hinge locks down
toward (Fig.1) the door
frame, to the unlocked
position.
Step. 3
Firmly grasp both sides of the door at the top.
Step. 4
Close door to the door removal
position, which is approximately
5 degrees. (refer to the Fig.2)
Step. 5
Lift door up and out until the hinge arm is clear of the
slot.
Slot
Hinge
lock
Lock
Unlock
Hinge arm
Hinge lock
<Fig.1>
<Fig.2>
