LG LRE30451ST Service Manual

3-11
COMPONENT ACCESS
REMOVING THE OVEN TEMPERA
REMOVING THE OVEN TEMPERA
TURE SENSORS
TURE SENSORS
WARNING
ELECTRICAL SHOCK HAZARD
Disconnect power before servicing the range.
Replace all panels before operating range.
Failure to do so can result in death or electrical
shock.
!
1. Turn off the electrical supply going to the range.
2. Open the oven door and remove the racks from
the oven.
3. Pull the range away from the wall so that you can
access the rear panel.
4. Remove the 16 screws from the rear panel and
remove the panel (see step 3 on page 3-2).

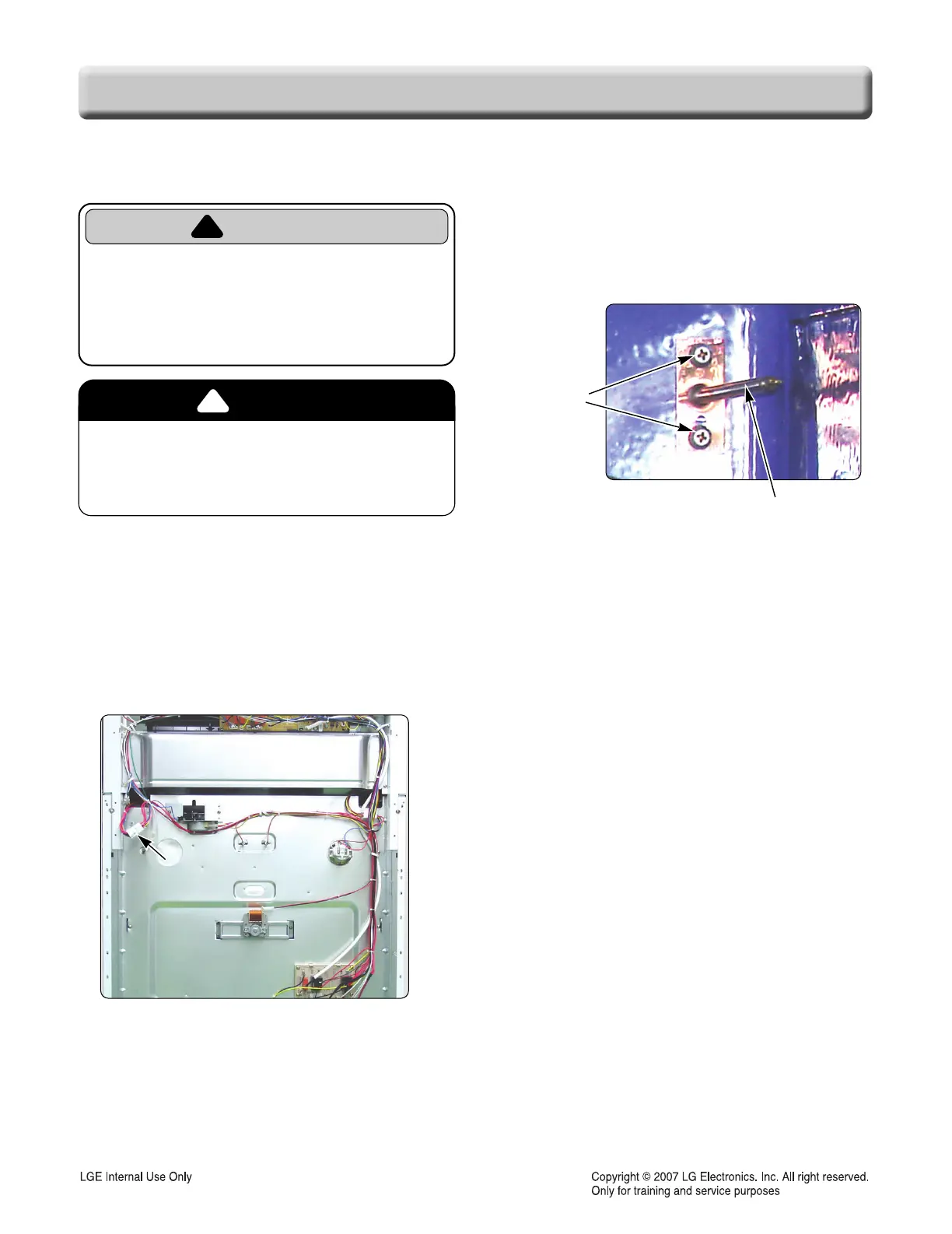

5. To remove an oven temperature sensor,
disconnect the connector from the main harness
and remove the two mounting screws in oven
cavity.
!
CAUTION
When you work on the electric range, be careful
when handling the sheet metal parts. Sharp
edges may be present, and you can cut yourself if
you are not careful.
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Main oven Sensor
connector
Screws
Main oven Sensor
