LG LRE30451ST Service Manual

9-1
For Model: LRE30451SW / SB / ST

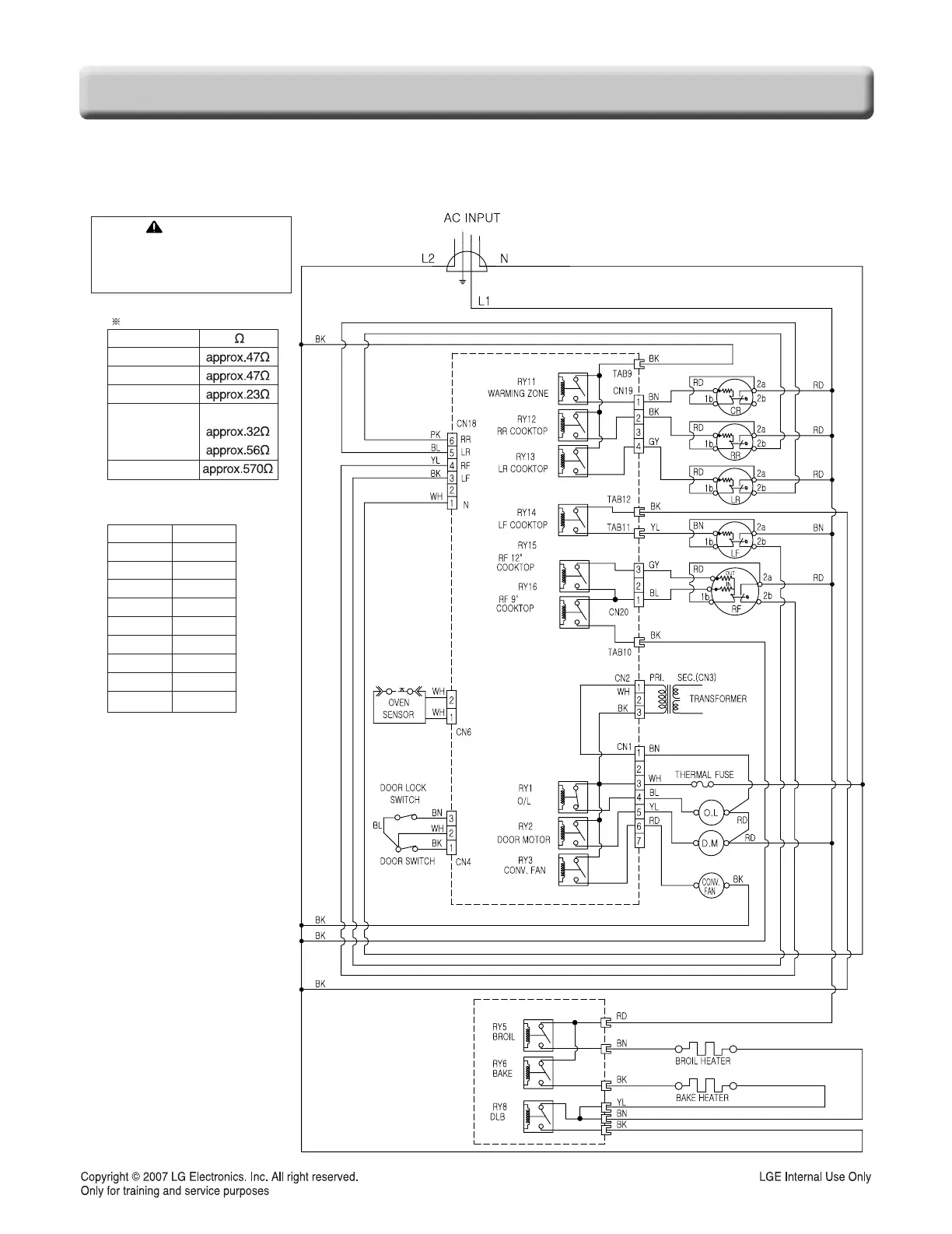

NOTE:Schematic diagram shows door
switch In the cook position with the oven
door open and elements off.
RADIANT COOK-TOP
Wattage
RR:1200W
LR:1200W
RF:2700W
LF(Left Front)
:1200W(inner)
:2500W(Dual)
CR:100W
WIRE COLORS
SYMBOL COLOR
WH WHITE
BK BLACK
RD RED
YL YELLOW
PK PINK
BL BLUE
BN BROWN
GN GREEN
GY GRAY
WARNING
POWER MUST BE
DISCONNECTED BEFORE
SERVICING THE APPLIANCE
SCHEMATIC DIAGRAM
