3-12
COMPONENT ACCESS
REMOVING THE ST
REMOVING THE ST
ORAGE DRA
ORAGE DRA
WER
WER
WARNING
ELECTRICAL SHOCK HAZARD
Disconnect power before servicing the range.
Replace all panels before operating range.
Failure to do so can result in death or electrical
shock.
!
CAUTION
When you work on the electric range, be careful
when handling the sheet metal parts. Sharp
edges may be present, and you can cut yourself if
you are not careful.

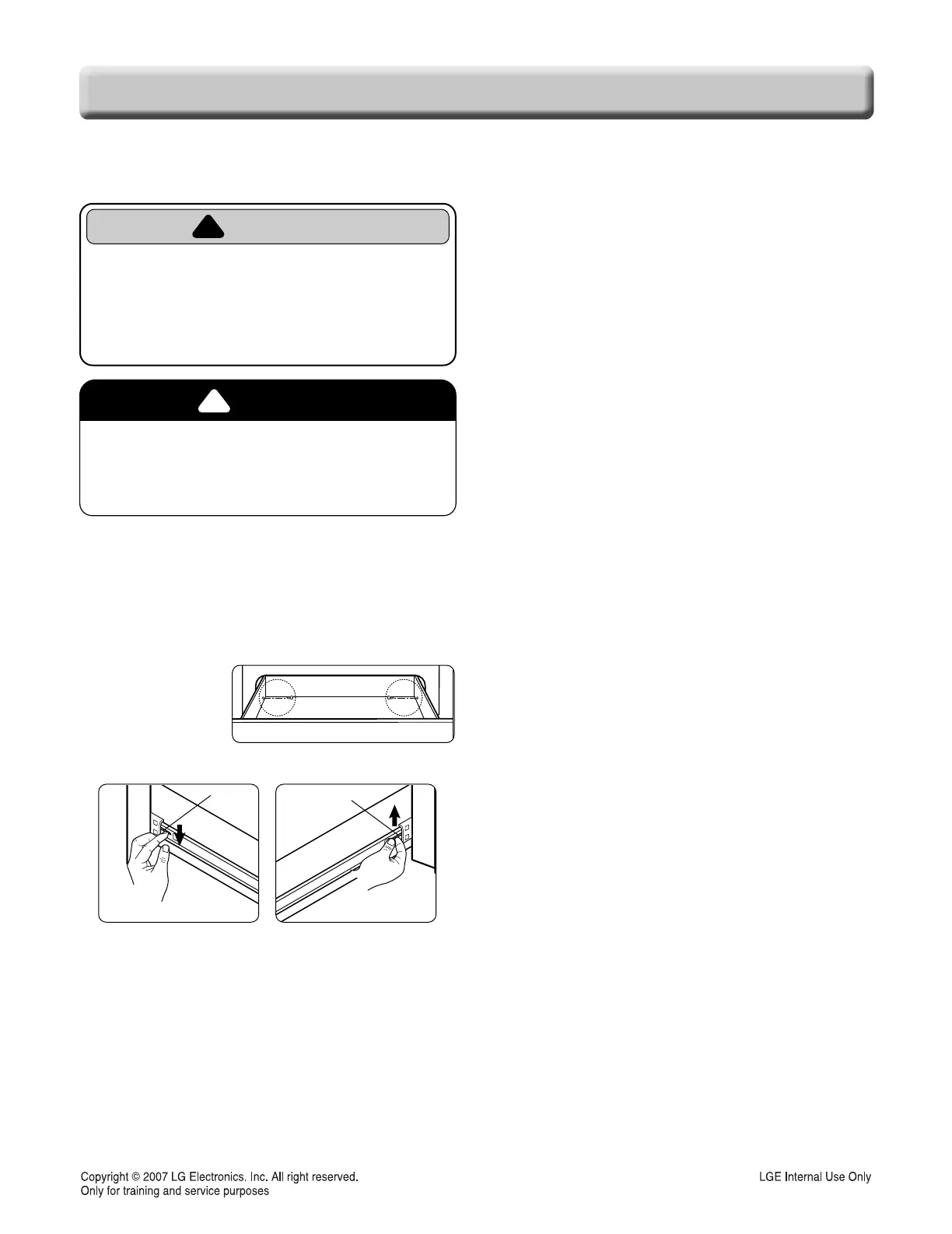

To Remove Storage Drawer:
1. CAUTION - Turn power OFF before removing
the Storage Drawer.
2. Open the drawer to the fully opened position.
3. Remove the 2 screws (right and left side). (refer
to below picture)
4. Locate glide lever
on each side of
drawer, push
down on the left
glide lever and pull up on the right glide lever.
5. Pull the Storage drawer away from the range.
To Replace the Storage Drawer:
1. Replace shield on the right glide of the drawer
body.
2. Pull the bearing glides to the front of the chassis
glide.
3. Align the glide on each side of the drawer with
the glide slots on the range.
4. Push the drawer into the range until levers “click”
(approximately 2”). Pull the drawer open again to
seat bearing glides into position. If you do not
hear the levers “click” or the bearing glides do not
feel seated remove the drawer and repeat steps
2-4. This will minimize possible damage to the
bearing glides.
Lever
Push down with finger
