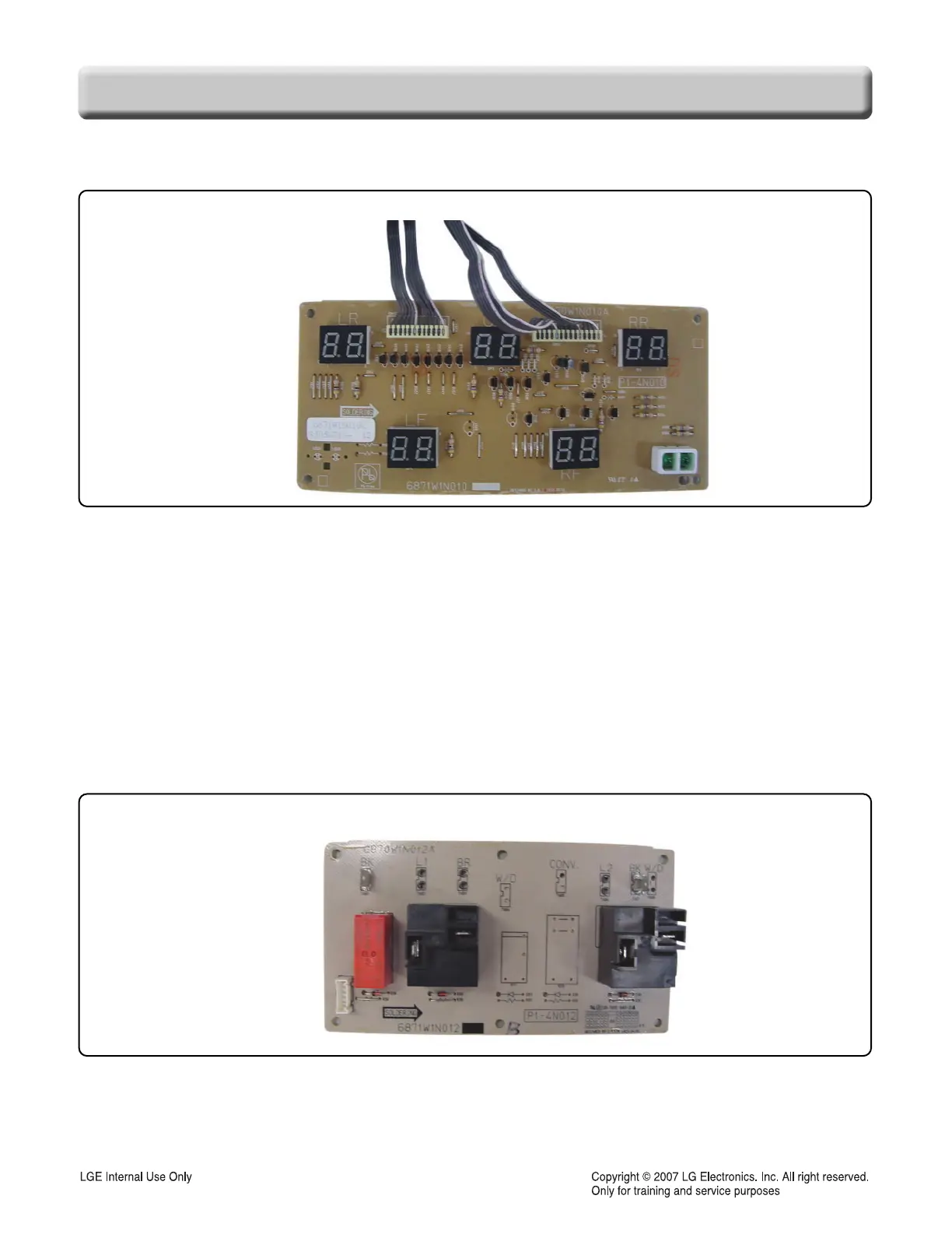

Cook-top display PCB
Cook-top display PCB
Main function
▶ Single radiant surface elements -Right Rear, Left Rear, Left Front- power level indication
▶ Dual radiant surface elements -Right Front inner,outer- power level indication
▶ Dual radiant surface element size indication-Right Front inner, outer
▶ Single radiant surface elements -warming zone (Center Rear)-power level indication
P/N : 6871W1N010B
Oven relay PCB
Oven relay PCB
Main function
▶ Oven heater on/off relay switching
(DLB / Broil / Bake)
P/N : 6871W1N012B
COMPOSITION OF CONTROL
