9-2
STRIP CIRCUITS
STRIP CIRCUITS
For Model: LRE30451SW / SB / ST
Complete the following steps before checking electric oven circuit :
1.Check the line voltage, household fuse or circuit breaker.
2.Check for loose wiring or mis-wiring within electric range.

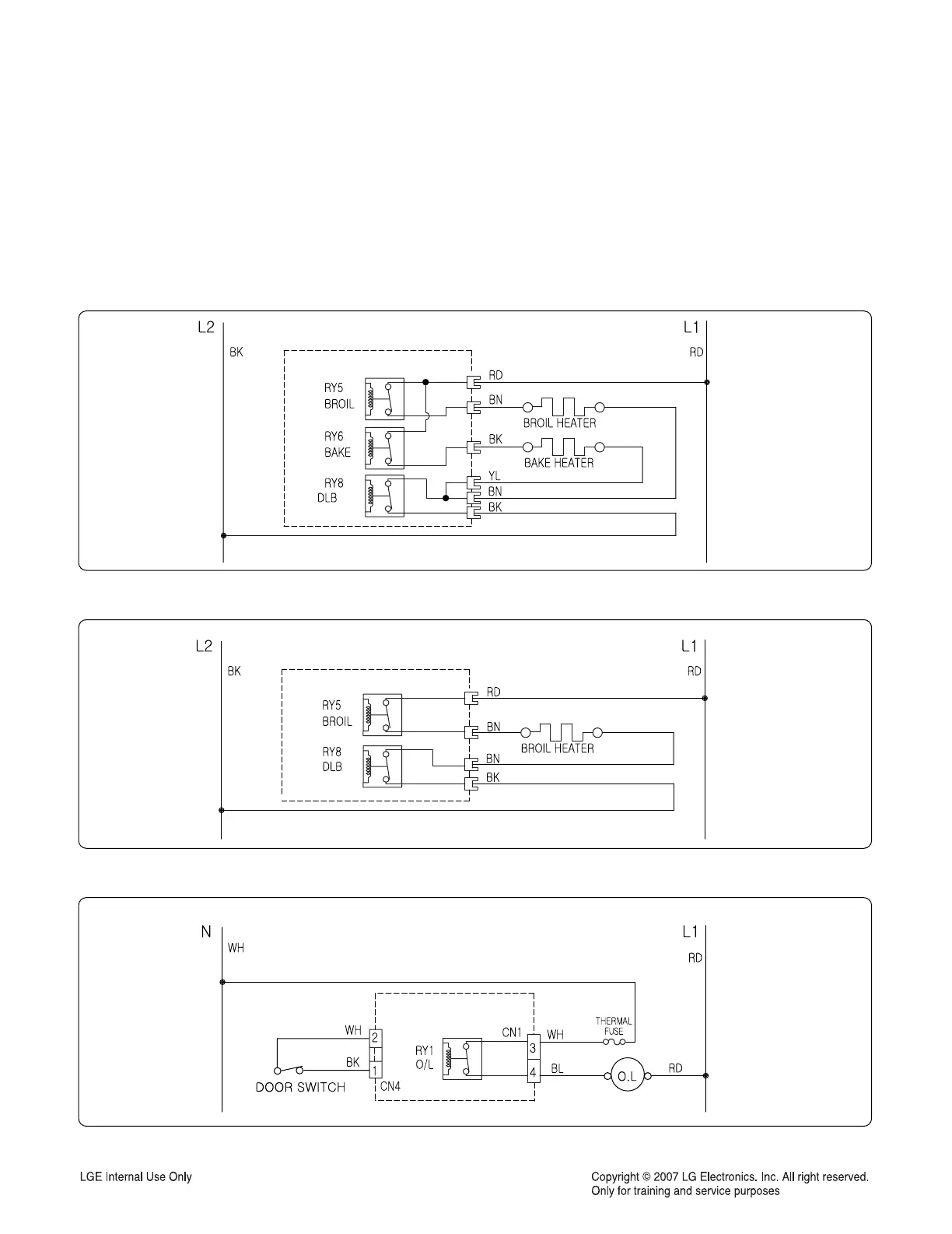

NOTE: The following individual circuits are for use in diagnosis, and are shown in the ON position.
BAKE / COOK & WARM / PROOF
BROIL
OVEN LIGHT
To Next Page
