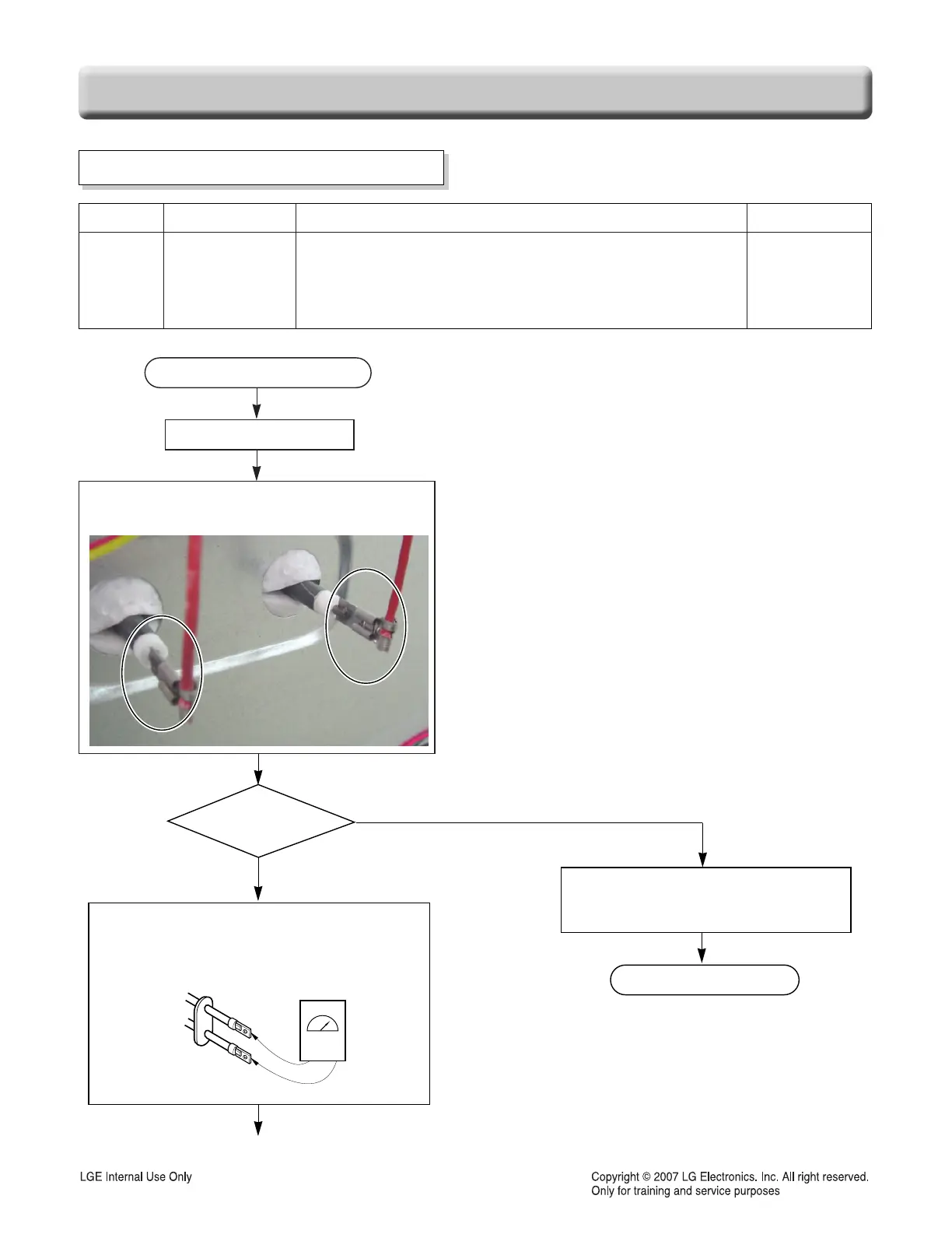

FAILURE MODE FLOW CHART
Oven does not heat
Code Error mode Operation Times/sampling
F-7 No heating If current oven temperature does not exceed 150˚F and
less than start temperature over 5 minutes on preheating,
where door is closed. (except proof and cook & warm )
During cook
No Heating(Main Oven)
Disconnect power
Check for loose connections at bake, broil,
convection heater terminal and harness
Check the bake heater
(measure the resistance after cooling down)
Normal: approximately 17Ω
Normal?
END
Continued on the next page
No
Yes
Reconnect.
If defective harness,replace or fix
To Next Page
