Oven Sensor
Door switch
Broil element
Bake element
1. Refer to page 3-11 for the servicing procedure
2. Measure the resistance after cooling down
(Multiple meter scale: R x 1000)

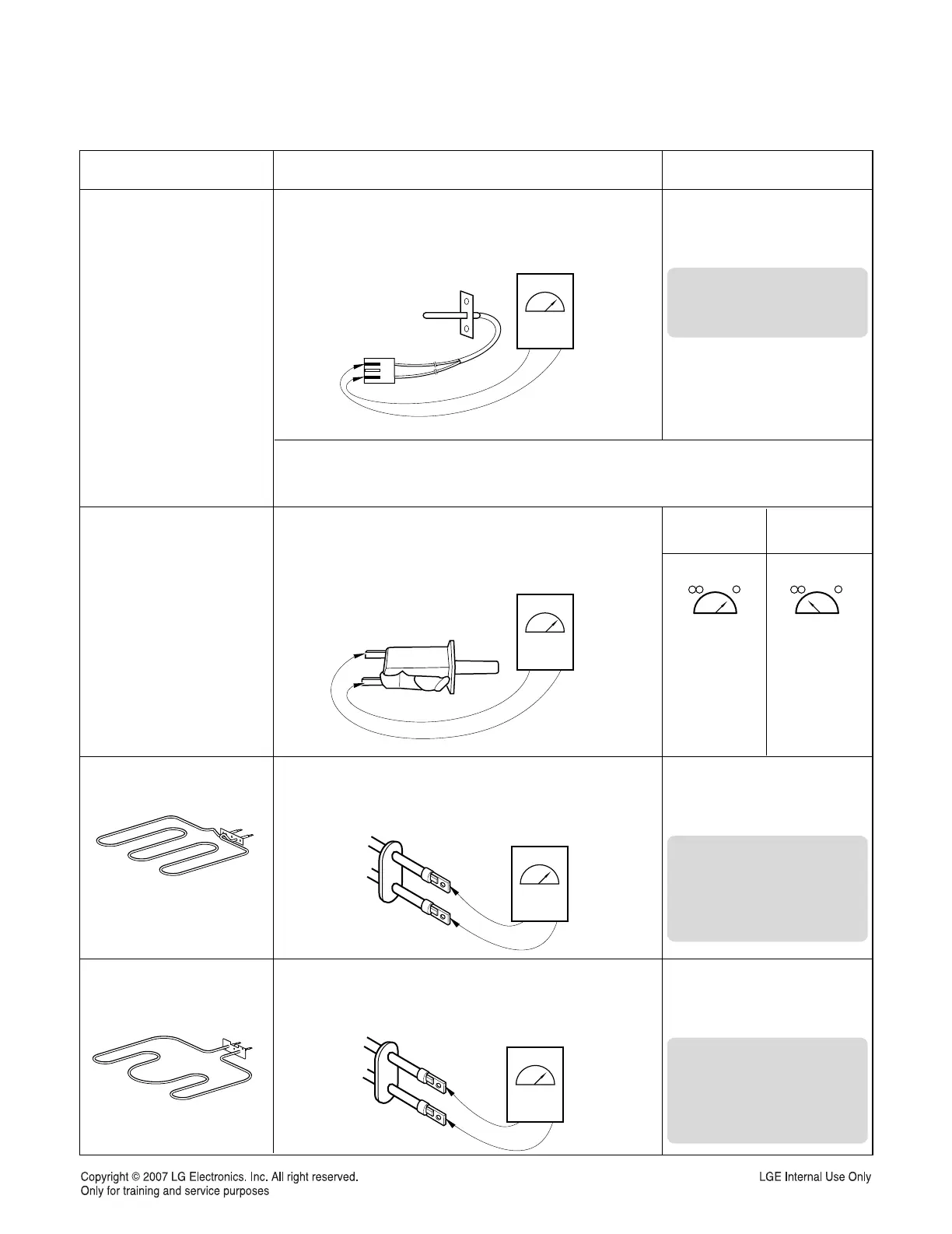

Components Test procedures Results
1. Refer to page 3-5 for the servicing procedure
2. Measure the resistance after cooling down
(Multiple meter scale: R x 1000)
Normal: Approximately
1.09 kΩ
± 10%
If not replace
Door open Door closed
Continuity Infinite
NOTE: Oven sensor is so sensitive to temperature
Do test after cooling down sufficiently
1. Refer to page 3-6 for the servicing procedure
2. Measure the resistance after cooling down
(Multiple meter scale: R x1)
Normal: Approximately
14 Ω
± 10%
If not replace
1. Refer to page 3-7 for the servicing procedure
2. Measure the resistance after cooling down
(Multiple meter scale: R x1)
Normal: Approximately
17 Ω
± 10%
If not replace
4-3
NOTE: Ω Value was tested
at room temperature
(77F/25˚C)
NOTE: Ω Value was tested
at room temperature
(77F/25˚C)
Be careful the element is
sensitive to temperature.
NOTE: Ω Value was tested
at room temperature
(77F/25˚C)
Be careful the element is
sensitive to temperature.
To Next Page
