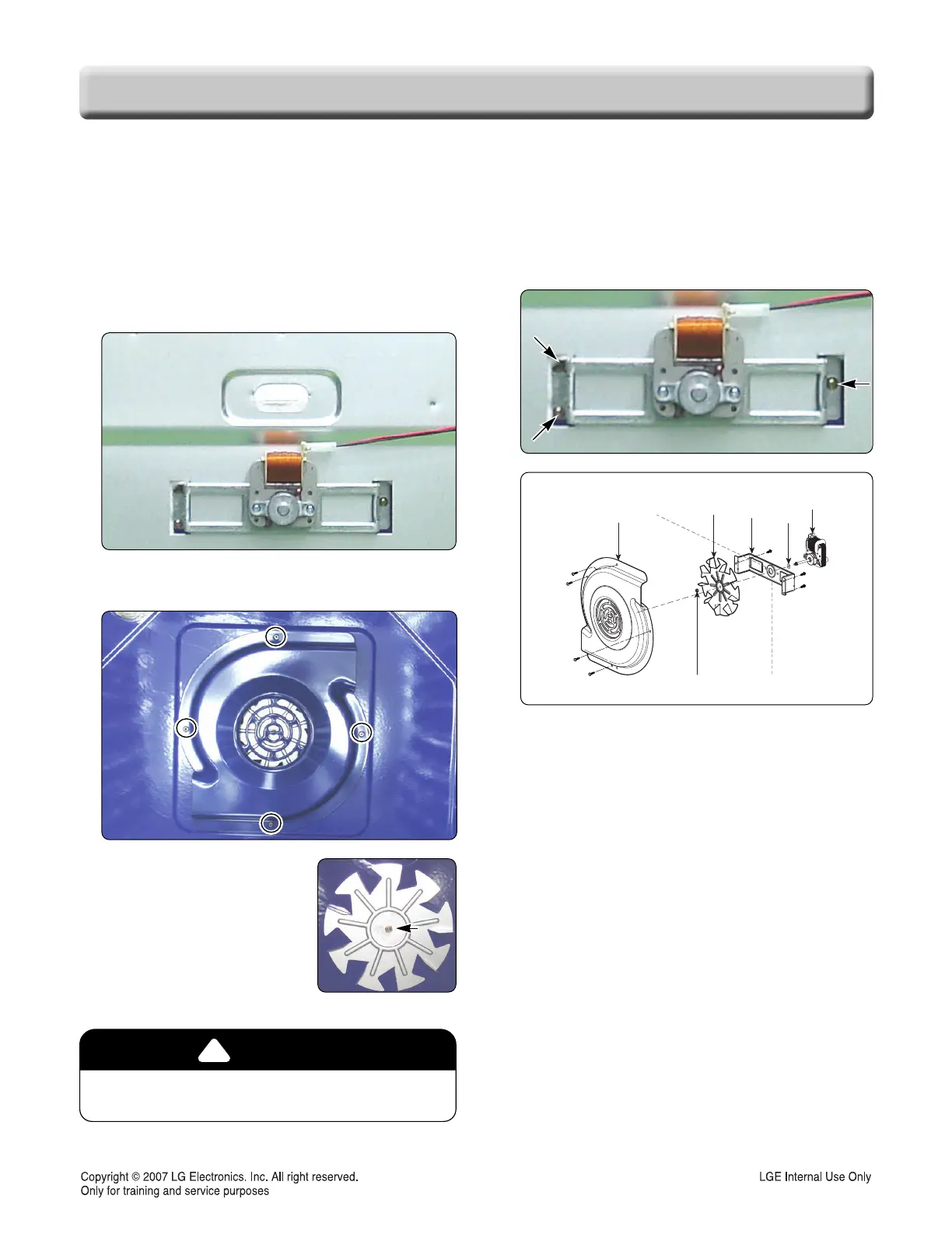

COMPONENT ACCESS
1. Disconnect power and remove oven racks.
2. Pull the range out of its mounting location so that
you can access the rear of the unit.
3. Remove the rear panel from the unit.
(See step 3~4 on page 3-2 for procedure)
4. Disconnect the wire connection.
5. Remove the four Fan cover screws and set the
fan cover aside.
6. To remove Fan blade,
remove Nut by screwing
clockwise. Fan blade can
|be replaced from inside oven.
8. To remove Fan motor assembly, disconnect
wire connection and remove the three bracket
screws
9. Pull the fan motor assembly forward.
REMOVING THE CONVECTION ELEMENT
REMOVING THE CONVECTION ELEMENT
, F
, F
AN BLADE AND F
AN BLADE AND F
AN MOT
AN MOT
OR
OR
Fan cover
Nut
Fan cover
Screws
(4ea)
Mounting
Screws
(3ea)
Cavity
Inner Outer
Fan
blade
Support
Washer
Fan motor
!
CAUTION
Be careful not to bend the fan blade.
