LG LRE30451ST Service Manual

3-15
COMPONENT ACCESS

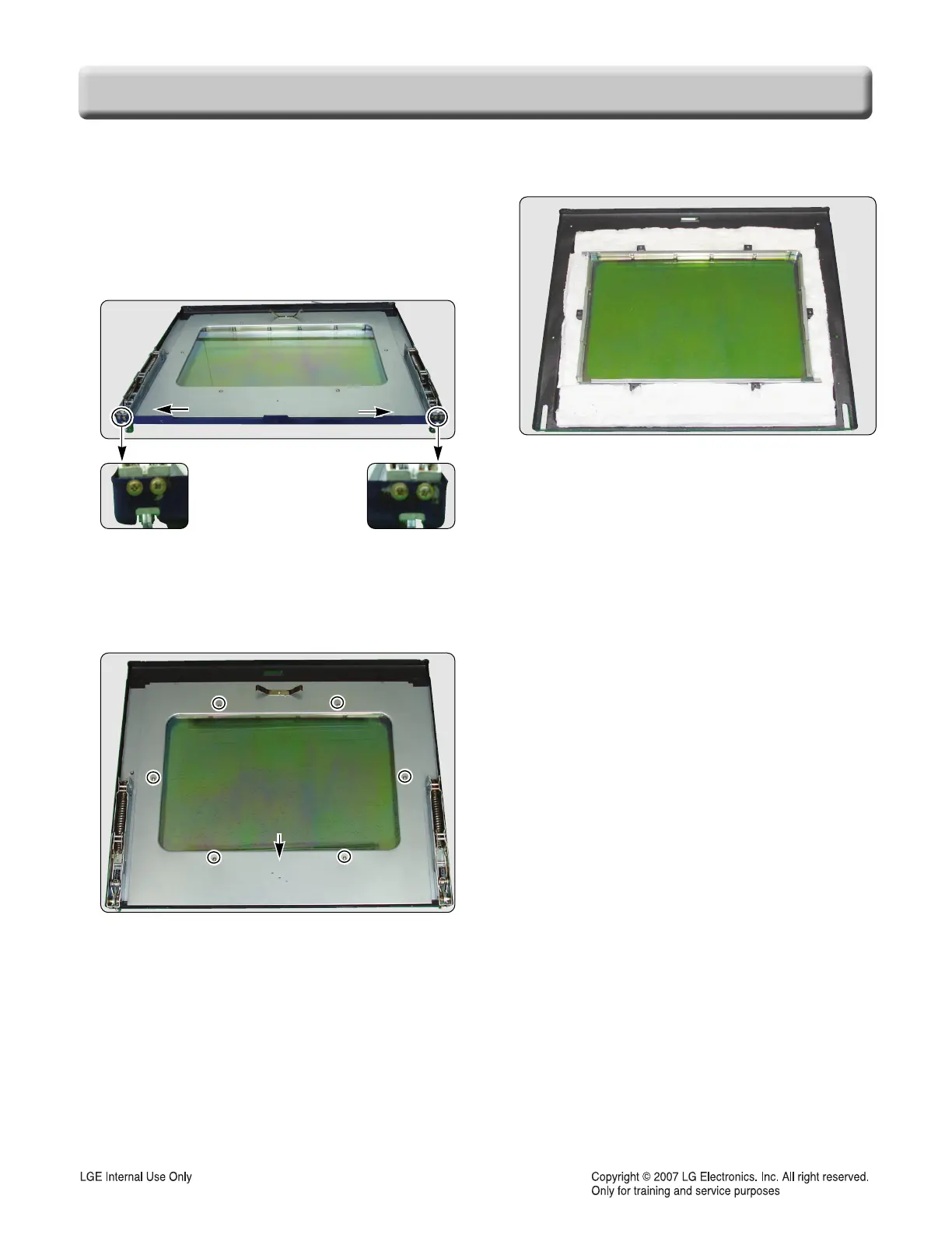

7. To remove a hinge hanger assembly:
a) Remove the 2 top liner screws
(See step 3 on page 3-14)
b) Place the door liner assembly on a padded work
surface with the hinge hangers over the edge.
c) Remove the two bottom screws.
d) Lift the hinge hanger out of the door liner slot.
8. To remove the oven door glass assembly:
a) Remove both hinge hangers (see step 8).
b) Remove the 6 screws.
c) Lift the insulation cover off the door liner.
d) Lift the inner oven door glass and bracket
assembly out of the door liner.
REASSEMBLY NOTE: When you reinstall the
insulation around the oven door glass, make sure
that the insulation is not visible in the glass after the
door is reassembled.
