PRODUCT DATA | 97

Product Data

'XHWRRXUSROLF\RIFRQWLQXRXVSURGXFWLQQRYDWLRQVRPHVSHFL¿FDWLRQVPD\FKDQJHZLWKRXWQRWL¿FDWLRQ

/*(OHFWURQLFV86$,QF(QJOHZRRG&OLIIV1-$OOULJKWVUHVHUYHG³/*´LVDUHJLVWHUHGWUDGHPDUNRI/*&RUS

OUTDOOR UNIT ACCESSORIES

Air Guides

(PRAGX2S0 and PRAGX3S0)

Optional air guides are available for Multi V IV outdoor units to change the discharge direction from vertical to

horizontal.

Use PRAGX2SO air guides with the following models:

ARUN072BTE4, ARUN072DTE4, ARUB072BTE4, ARUB072DTE4.

Use PRAGX3SO air guides with the following models:

ARUN096BTE4, ARUN121BTE4, ARUN144BTE4, ARUN145BTE4, ARUN168BTE4, ARUN169BTE4,

ARUN096DTE4, ARUN121DTE4, ARUN144DTE4, ARUN145DTE4, ARUN168DTE4, ARUN169DTE4

ARUB096BTE4, ARUB121BTE4, ARUB144BTE4, ARUB145BTE4, ARUB168BTE4, ARUB169BTE4,

ARUB096DTE4, ARUB121DTE4, ARUB144DTE4, ARUB145DTE4, ARUB168DTE4, ARUB169DTE4

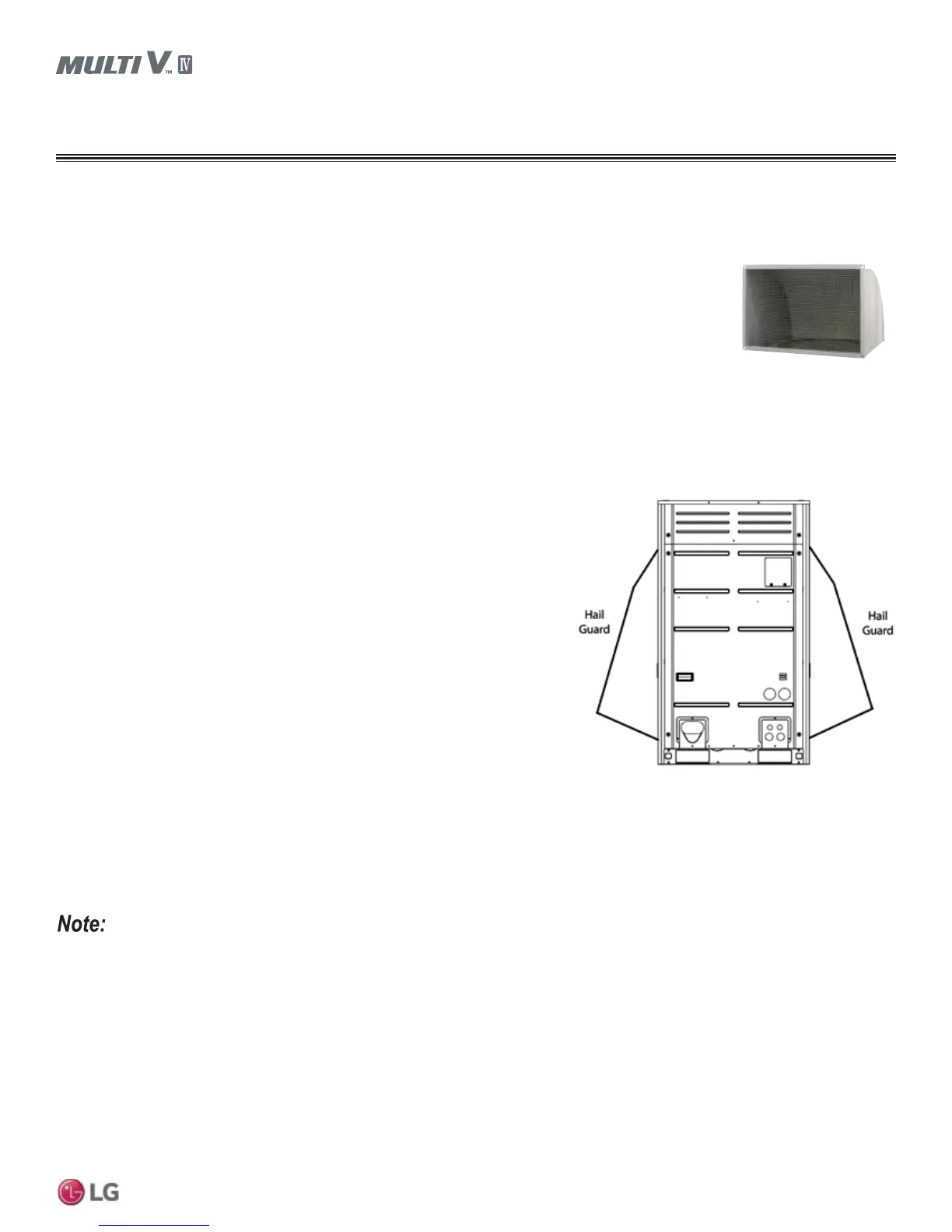

Figure 5: Air Guide.

ARUN145BTE4-DTE4 / ARUB145BTE4-DTE4, ARUN169BTE4-DTE4 / ARUB169BTE4-DTE4 frames are ONLY for use in large capacity

triple frame combinations. They cannot be used as stand alone models or in a dual frame combination. These frames ARE NOT interchange-

able with ARUN144BTE4-DTE4 / ARUB144BTE4-144DTE4, ARUN168BTE4-DTE4 / ARUB168BTE4-144DTE4 single frame models.

Multi V Hail Guard Kits

(ZHGDKA01A and ZHGDKA04A)

Optional hail guard kits help protect the heat exchangers in Multi V IV outdoor units.

Each kit includes:

• Right wind baffle

• Left wind baffle

• Rear wind baffle

• (50) #10 x 1/2 self-drilling hex head screws

Use ZHGDKA01A with the following Multi V IV models:

6-ton Outdoor Units ARUN072BT4, ARUN072DT4, ARUB072BT4, ARUB072DT4

Use ZHGDKA04A with the following Multi V IV models:

8-ton to 14-ton Outdoor Units ARUN096BTE4, ARUN096DTE4, ARUN121BTE4,

ARUN121DTE4, ARUN144BTE4, ARUN144DTE4, ARUN145BTE4, ARUN145DTE4, ARUN168BTE4, ARUN168DTE4, ARUN169BTE4,

ARUN169DTE4

ARUB096BTE4, ARUB096DTE4, ARUB121BTE4, ARUB121DTE4, ARUB144BTE4, ARUB144DTE4, ARUB145BTE4, ARUB145DTE4,

ARUB168BTE4, ARUB168DTE4, ARUB169BTE4, ARUB169DTE4

See submittals at www.lg-vrf.com to verify how many kits are needed for each combination frame.

Figure 6: Hail Guard Kit.
