Low Ambient Baffle Kits
(ZLABKA01A and ZLABKA03A)
Optional low ambient baffle kits allow for Multi V IV outdoor unit
operation down to -9.9°F in cooling mode. Can be applied to heat
pump and heat recovery systems. When used with heat recovery
systems, low ambient cooling to -9.9°F is possible only when all
indoor units are operating in cooling mode. Does not impact synchro-
nous operating range.
Each kit includes:
• Right wind baffle
• Left wind baffle
• Rear wind baffle
• Top discharge elbow with motorized damper and 24V damper
actuator
• (50) #10 x 1/2 self-drilling hex head screws
• Sealtite connector (for routing of actuator control and power wiring
down to outdoor unit electrical box)
• PRVC2 Control kit is a required accessory (sold separately)
Use ZLABKA01A with the following Multi V IV models:
6-ton Outdoor Units ARUN072BT4, ARUN072DT4, ARUB072BT4,
ARUB072DT4
Use ZLABKA03A with the following Multi V IV models:
8-ton to 14-ton Outdoor Units ARUN096BTE4, ARUN096DTE4,
ARUN121BTE4, ARUN121DTE4, ARUN144BTE4, ARUN144DTE4,
ARUN145BTE4, ARUN145DTE4, ARUN168BTE4, ARUN168DTE4,
ARUN169BTE4, ARUN169DTE4,
ARUB096BTE4, ARUB096DTE4, ARUB121BTE4, ARUB121DTE4,
ARUB144BTE4, ARUB144DTE4, ARUB145BTE4, ARUB145DTE4,
ARUB168BTE4, ARUB168DTE4, ARUB169BTE4, ARUB169DTE4
See submittals at www.lg-vrf.com to verify how many kits are needed
for each combination frame.
Front View Side View
6LGH:LQG%DIÀH
6LGH:LQG%DIÀH
Top Discharge Elbow Top Discharge Elbow
6LGH:LQG%DIÀH

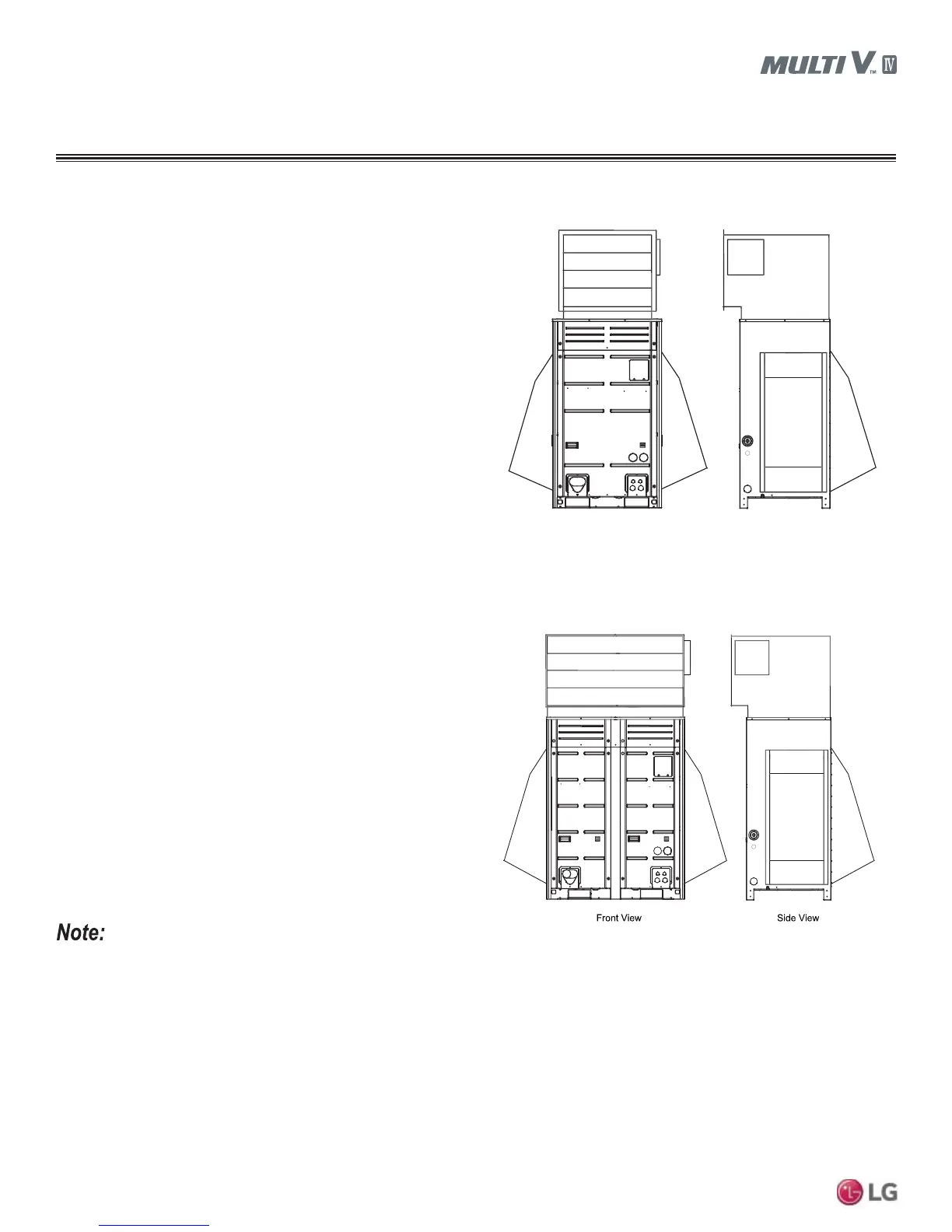

Figure 7: ZLABKA01A Low Ambient Kit for 6-ton Outdoor Units
Figure 8: ZLABKA03A Low Ambient Kit for 8-ton to 14-ton Outdoor Units
6LGH:LQG%DIÀH
Top Discharge Elbow Top Discharge Elbow
6LGH:LQG%DIÀH
6LGH:LQG%DIÀH
ARUN145BTE4-DTE4 / ARUB145BTE4-DTE4, ARUN169BTE4-
DTE4 / ARUB169BTE4-DTE4 frames are ONLY for use in large
capacity triple frame combinations. They cannot be used as stand
alone models or in a dual frame combination. These frames ARE
NOT interchangeable with ARUN144BTE4-DTE4 / ARUB144BTE4-
144DTE4, ARUN168BTE4-DTE4 / ARUB168BTE4-144DTE4 single
frame models.
