LI-600 Porometer/Fluorometer Instruction Manual
8-4

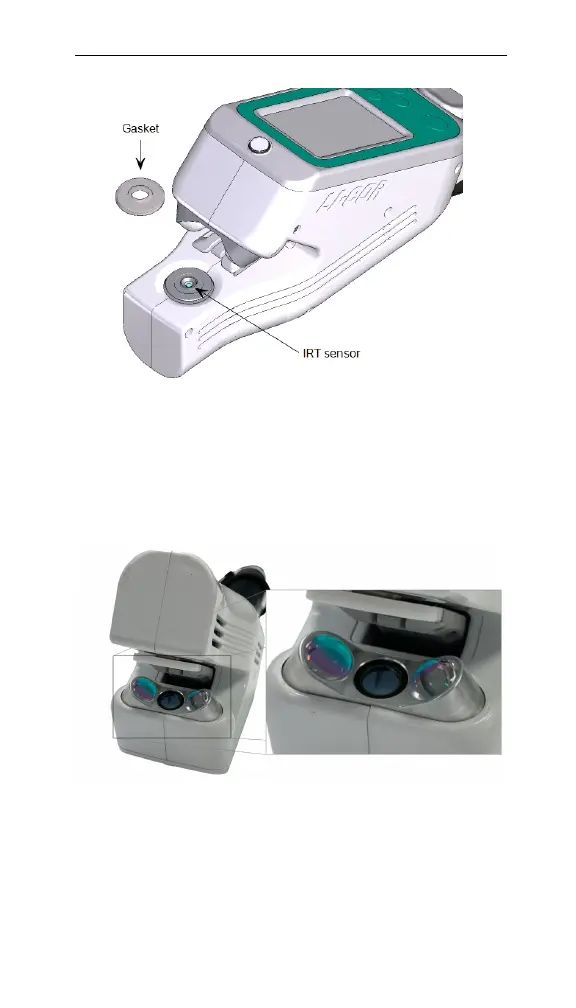

Figure 8-3. The IRT is under the center of the aperture.
4 Use a foam swab and isopropyl alcohol (IPA) to carefully clean
the sensor.
Fluorometer
Figure 8-4. The fluorometer LEDs and fluorescence detector.
Regularly check that the fluorometer LEDs and fluor-
escence detector are clean. Use foam swabs, a microfiber
