Mounting the LI-710
The LI-710 can be deployed as a stand-alone sensor, in a weather station, or as part
of an eddy covariance flux station. It mounts readily to hardware that is common to
irrigation infrastructure, weather stations, and other equipment.
Horizontal cross bar
The LI-710 can be attached to a standard ¾" crossover fitting or any other fitting
with a 1" opening. Suitable crossover fittings (¾" × 1") are available from LI-COR
(part number 259-13276).

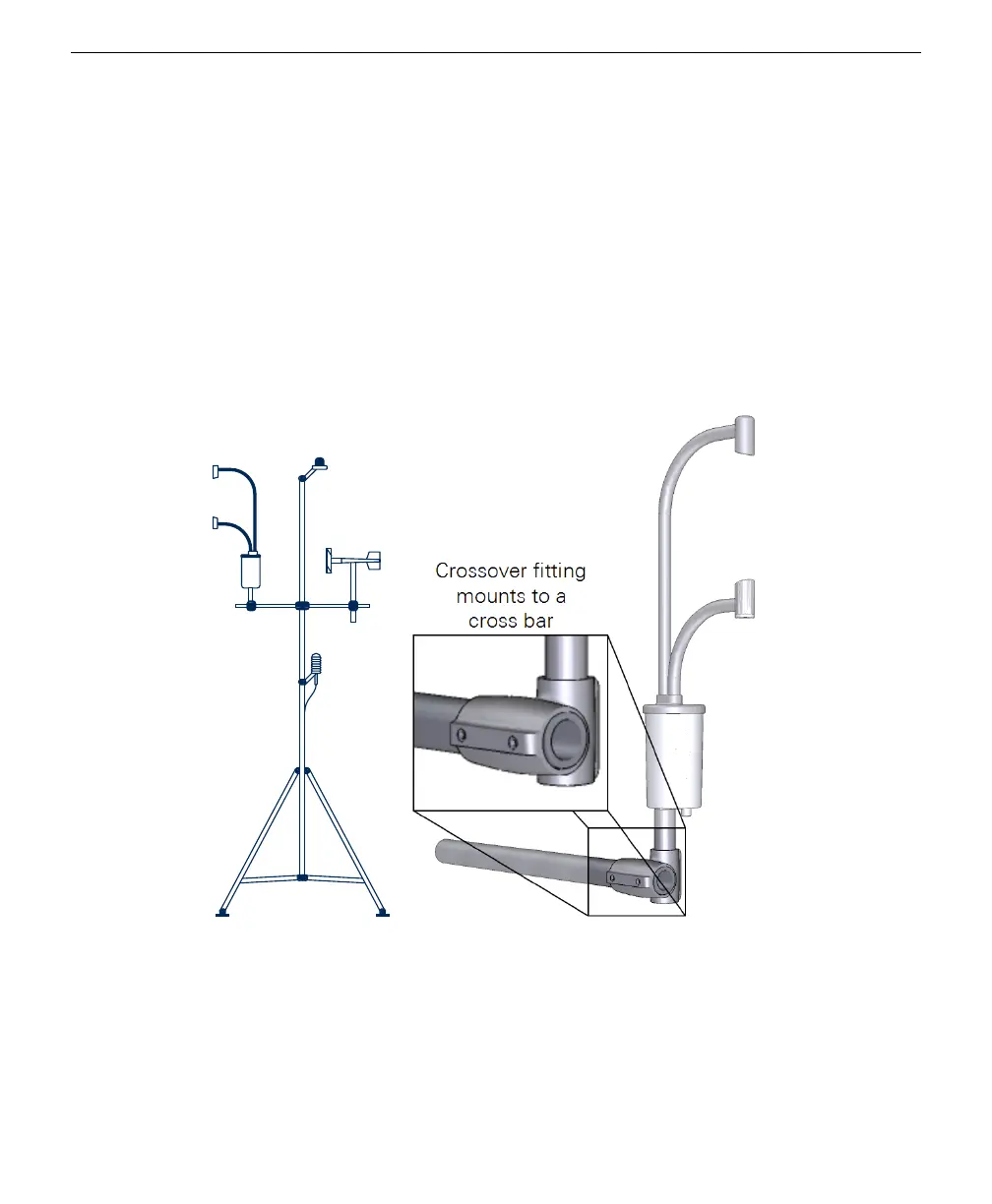

Figure 2-10. The LI-710 mounted to a cross bar with a crossover fitting.
Tighten set screws with a 5/32" hex key to 22 N-m (16 ft-lbs). If no torque wrench is
available, tighten each set screw until it contacts the pipe, then one more full revolu-
tion for aluminum pipe, or ¼ revolution for stainless steel.
Section 2. Deploying the LI-710
2-7Mounting the LI-710
