Section 3.
Overview of SDI-12 and the LI-710
The LI-710 is an SDI-12 device. Communication can be carried out over a device
that mediates the SDI-12 communication such as a datalogger with SDI-12 inputs or
an SDI-12-to-USB translator.
Wiring the sensor
The LI-710 is powered by over the brown wire (9 to 33 VDC). Data are transferred
over the blue DATA wire. The black wire connects to ground.

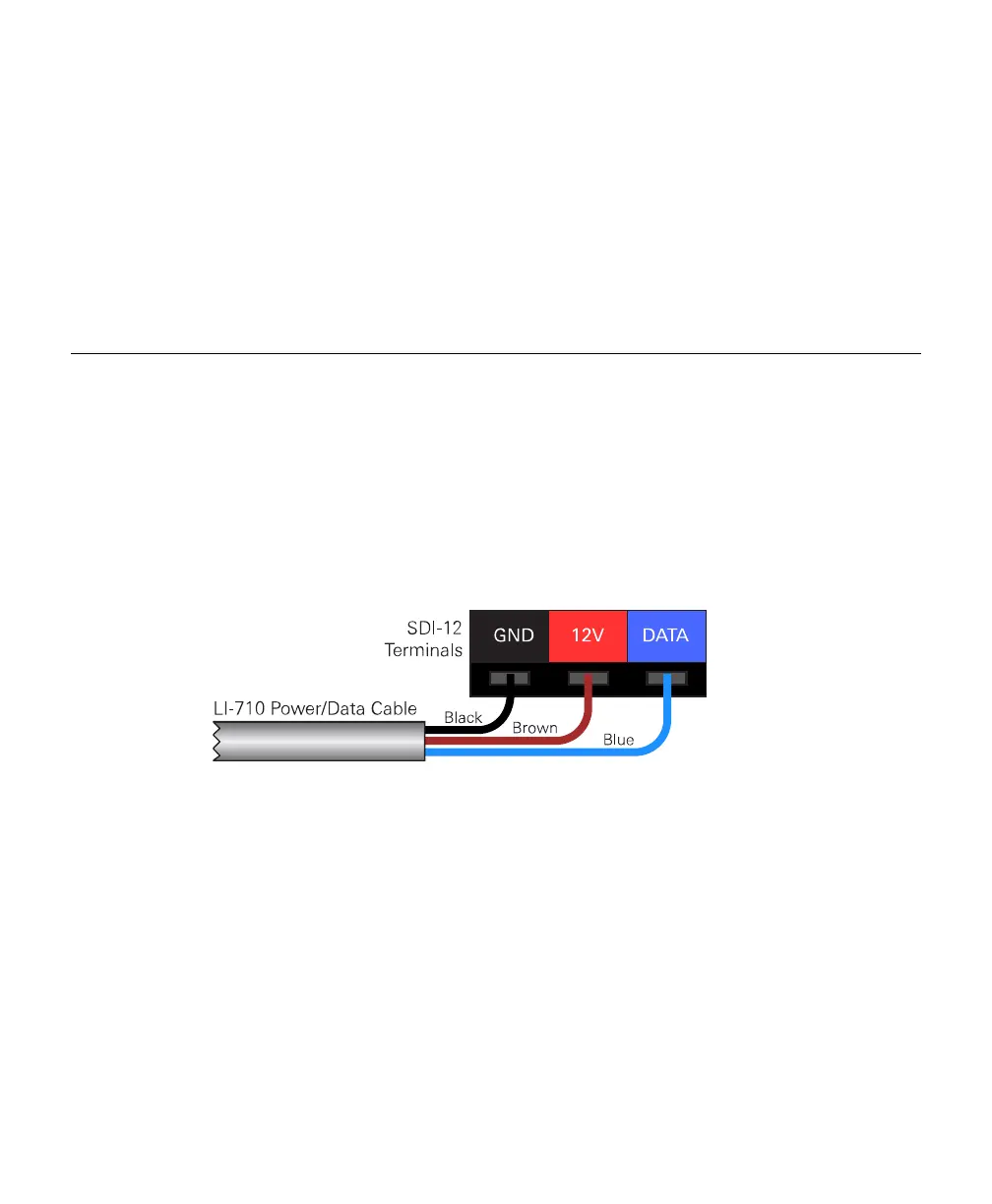

Figure 3-1. Wires from the LI-710 connect to power and an SDI-12 data bus.
Common commands
Here we provide a summary of commands that are used by the LI-710.
l
? – query the sensor address
l
I - get info
l
A – set the sensor address
l
M – measure
l
XT – start collection (trigger).
