Sensors

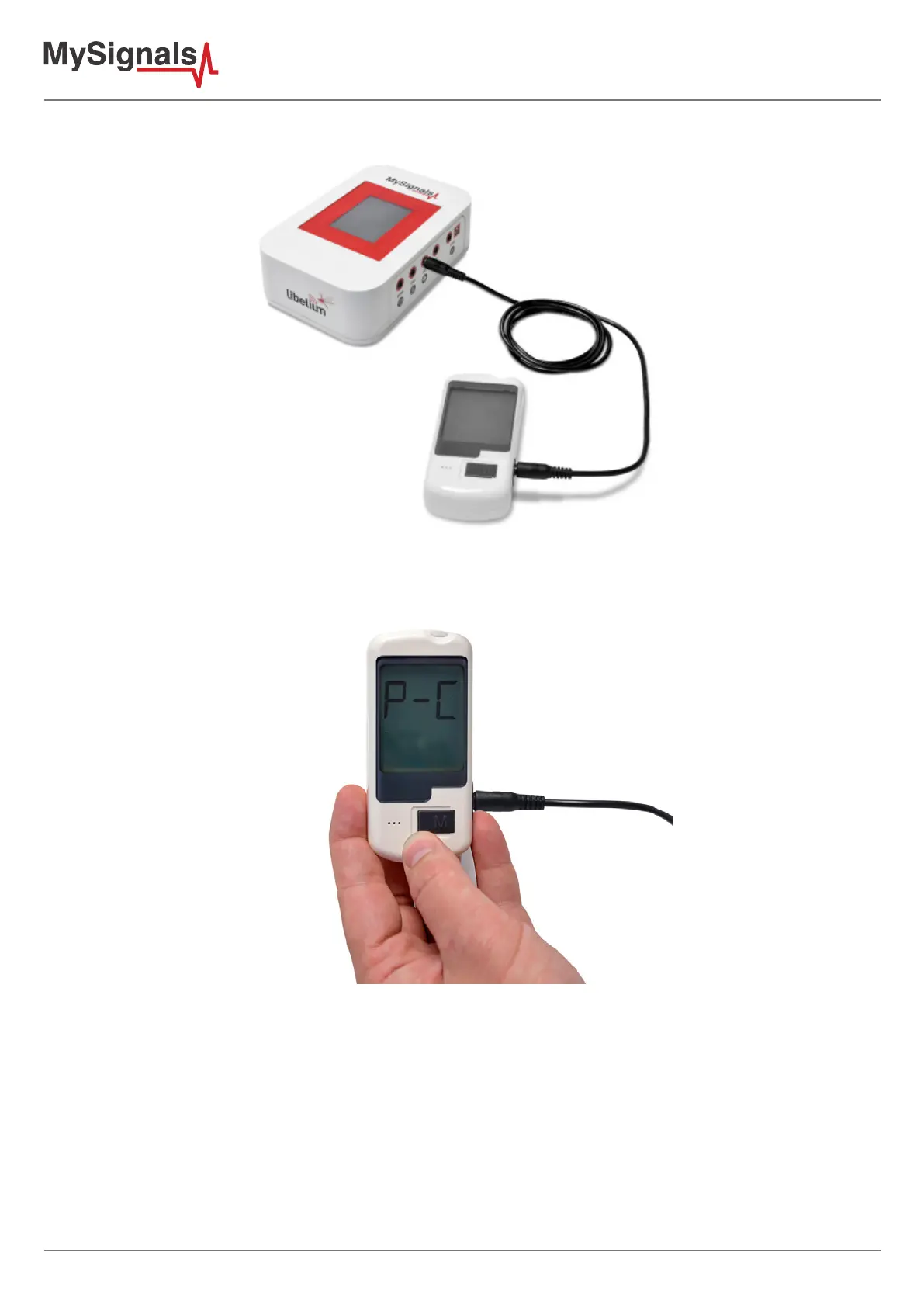

In order to extract the data from the glucometer to the Arduino, connect the cable as show in the picture.
Figure: Cable connection
You should view in the glucometer screen the message “P-C”, that indicates the correct connection.
Figure: PC indication glucometer
