Sensors
7.1.10.2. Connecting the sensor
Connect the jack sensor in the Body Position connector indicated in the MySignals Hardware board. The sensor
cable have only one way of connection to prevent errors and make the connection easier.

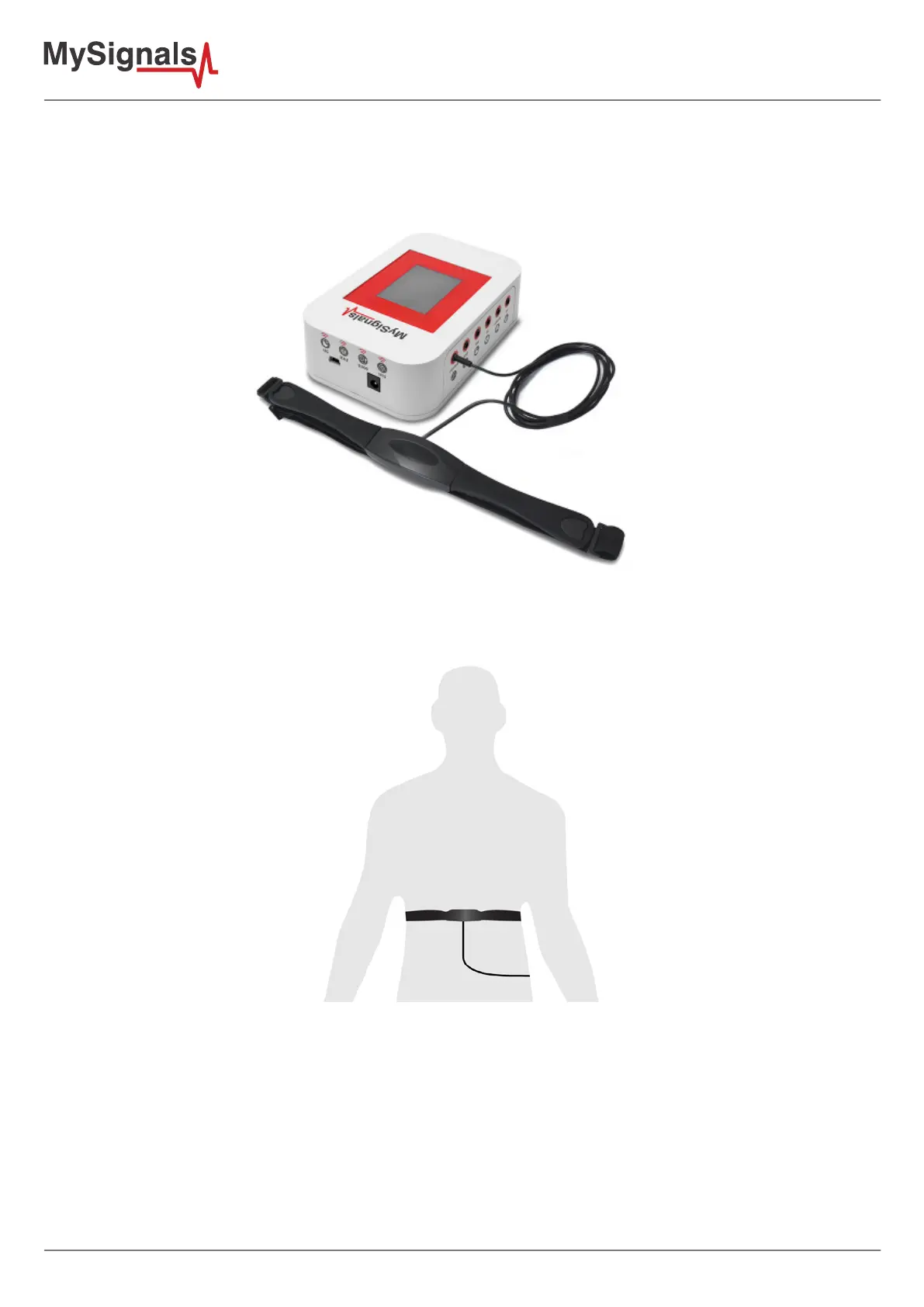

Figure: MySignals Hardware Development Platform with Body Position connected
Place the tape around the chest and the connector placed down
Figure: MySignals Hardware Development Platform with Body Position situated in the user body
After a few seconds you will get the values in the visualization method programmed.
