Sensors
7.2.2.2. Connecting the sensor
This sensor have not cable. This sensor send the data wirelessly to MySignals board.
Place the SPO2 on your nger as shown in the image below.

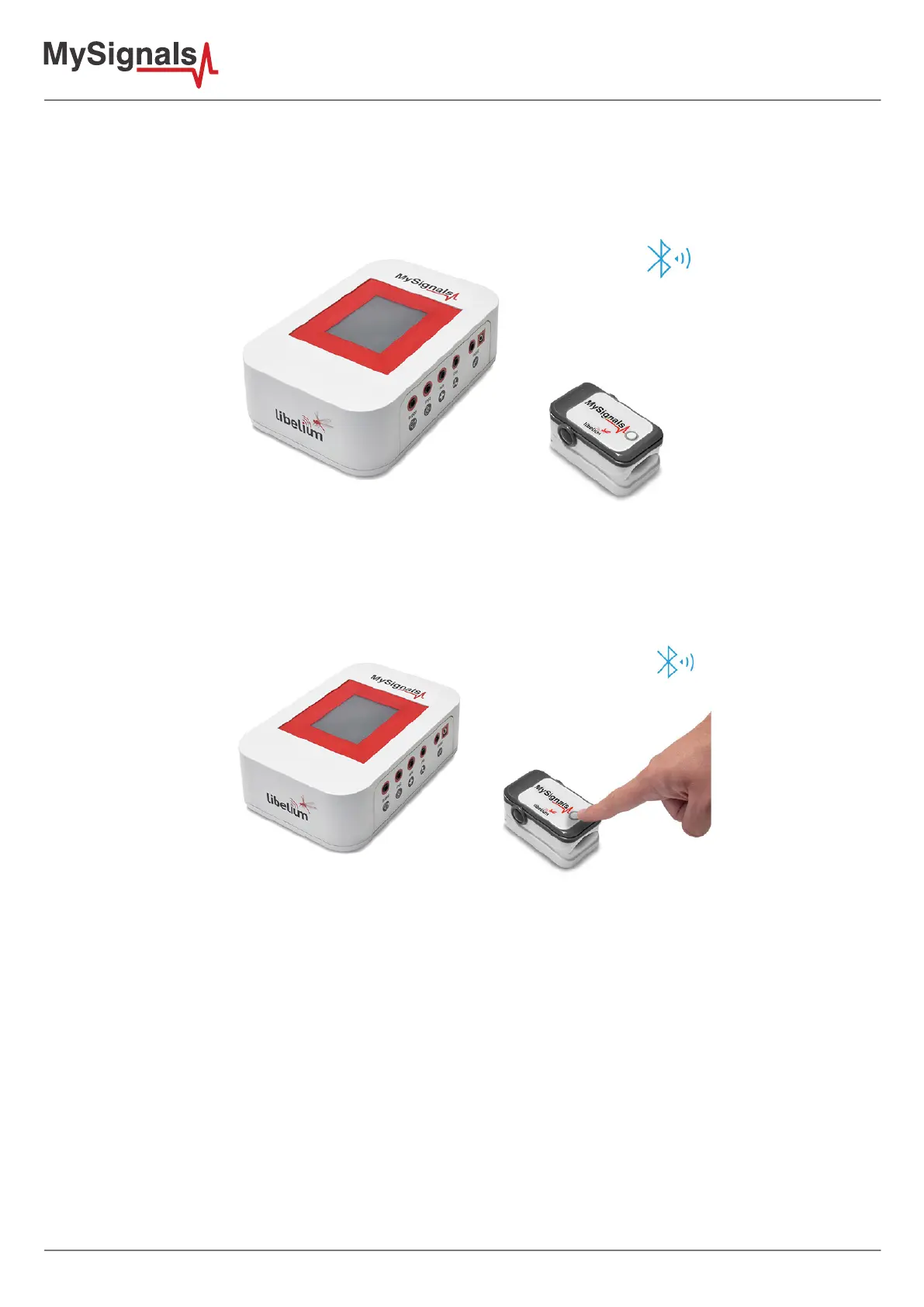

Figure: SPO2 connection diagram
Turn on the SPO2 (press ON button). The sensor will begin to make a measurement. In order to measure correctly
is important to maintain nger in the correct position.
Wait until MySignals program indicate that it is connected with the BLE sensor.
Figure: SPO2 sensor ON button
Do not make abrupt movements or the measure will be not reliable.
