10 Chapter 2 Mechanical Installation
Liebert NXC 30kVA And 40kVA UPS User Manual

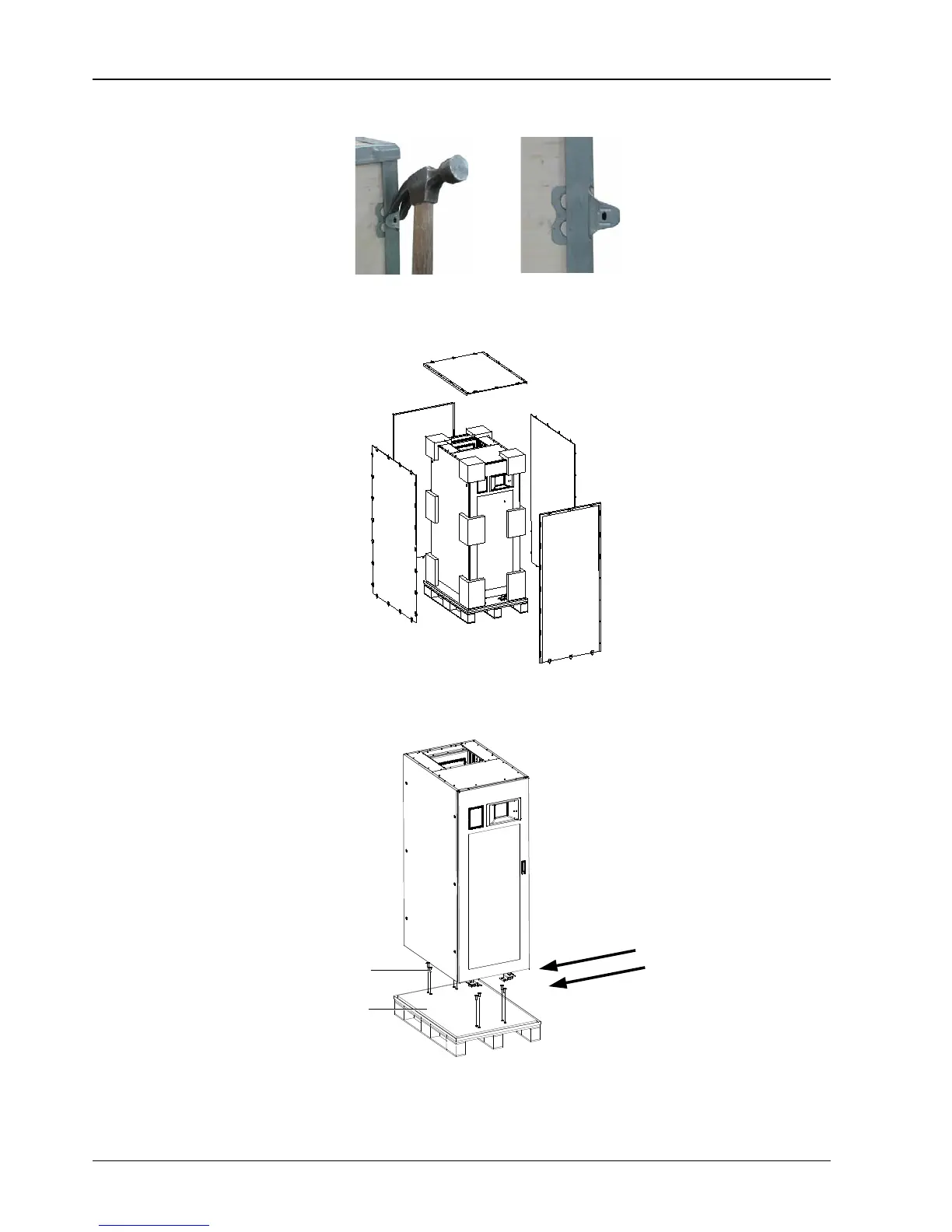

Use a hammer or straight screwdriver to straighten the connection hook that connects the side panels to the top cover,
as shown in Figure 2-2.
Figure 2-2 Straightening the hook
At first, straighten all the hooks that fix side panel I, and remove side panel I. Then straighten all the hooks that fix side
panel II, and remove side panel II. At last remove top cover III, as shown in Figure 2-3.
Figure 2-3 Removing side panels and top cover
2. Remove the fixing bolts of the bottom pallet (see Figure 2-4), and reserve the fixing bolts. Then use the forklift
(following the inserting direction shown in Figure 2-4) to move the cabinet near the installation place.
Figure 2-4 Removing bottom pallet
3. After moving the cabinet to the installation place, you should raise the four adjustable feet, and then use the castors
to move the cabinet to its final installation site.
