Chapter 6 Battery 49
Liebert NXC 30kVA And 40kVA UPS User Manual
W39 CROSS1
W39 CROSS1
W39 CROSS1
W39 CROSS1
W39 CROSS1
W39 CROSS1
W39 CROSS1
W63-DOWN
W64 BAT+BOX
Battery tray 2
W39 CROSS1
W39 CROSS1
W39 CROSS1
W39 CROSS1
W39 CROSS1
W39 CROSS1
W39 CROSS1
W63-DOWN W62+UP
W39 CROSS1
W39 CROSS1
W39 CROSS1
W39 CROSS1
W39 CROSS1
W39 CROSS1
W39 CROSS1
W39 CROSS1
W39 CROSS1
W39 CROSS1
W39 CROSS1
W39 CROSS1
W39 CROSS1
W39 CROSS1
W63-DOWN W62+UP
W65 BAT-BOX
W62+UP
Battery tray 3 Battery tray 4 Battery tray 5
W66 BATN-BOX
PP75 terminal of W63 connects
to PP75 terminal of W62
PP75 terminal of W63 connects
to PP75 terminal of W62

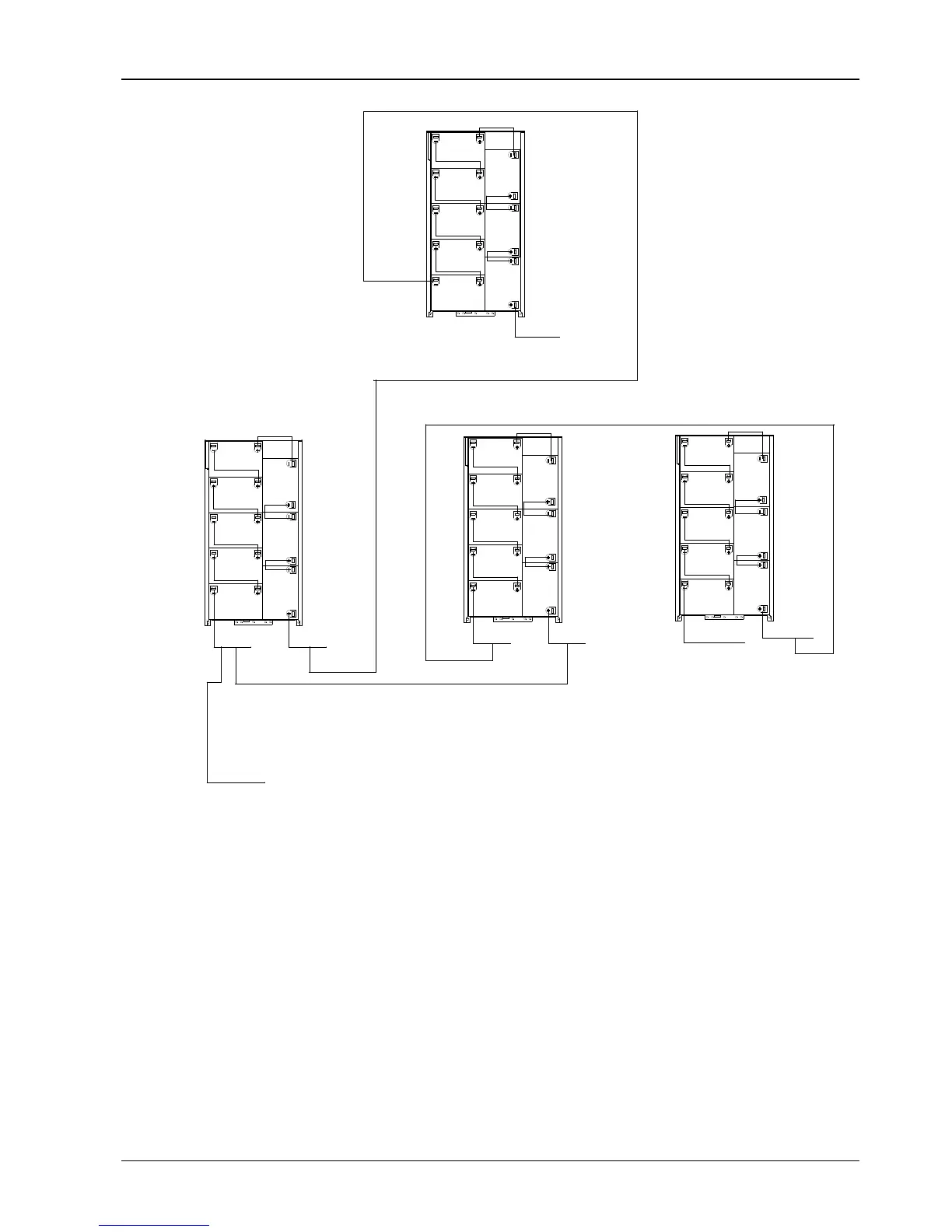

32-block battery
