2. Carry out the installation strictly following the instructions. Failure to observe this could cause personnel injury or damage to the
UPS and seismic anchor kits.
Preparation
1. Prepare the installation tools, including a cross head screwdriver, a torque spanner and an adjustable spanner.
2. Check that all installation materials are present and complete, including five seismic anchors, four M10 × 30 sems
screws, eight M16 × 50 sems screws, eight M12 expansion bolts.
Procedures
The installation procedures are as follows:

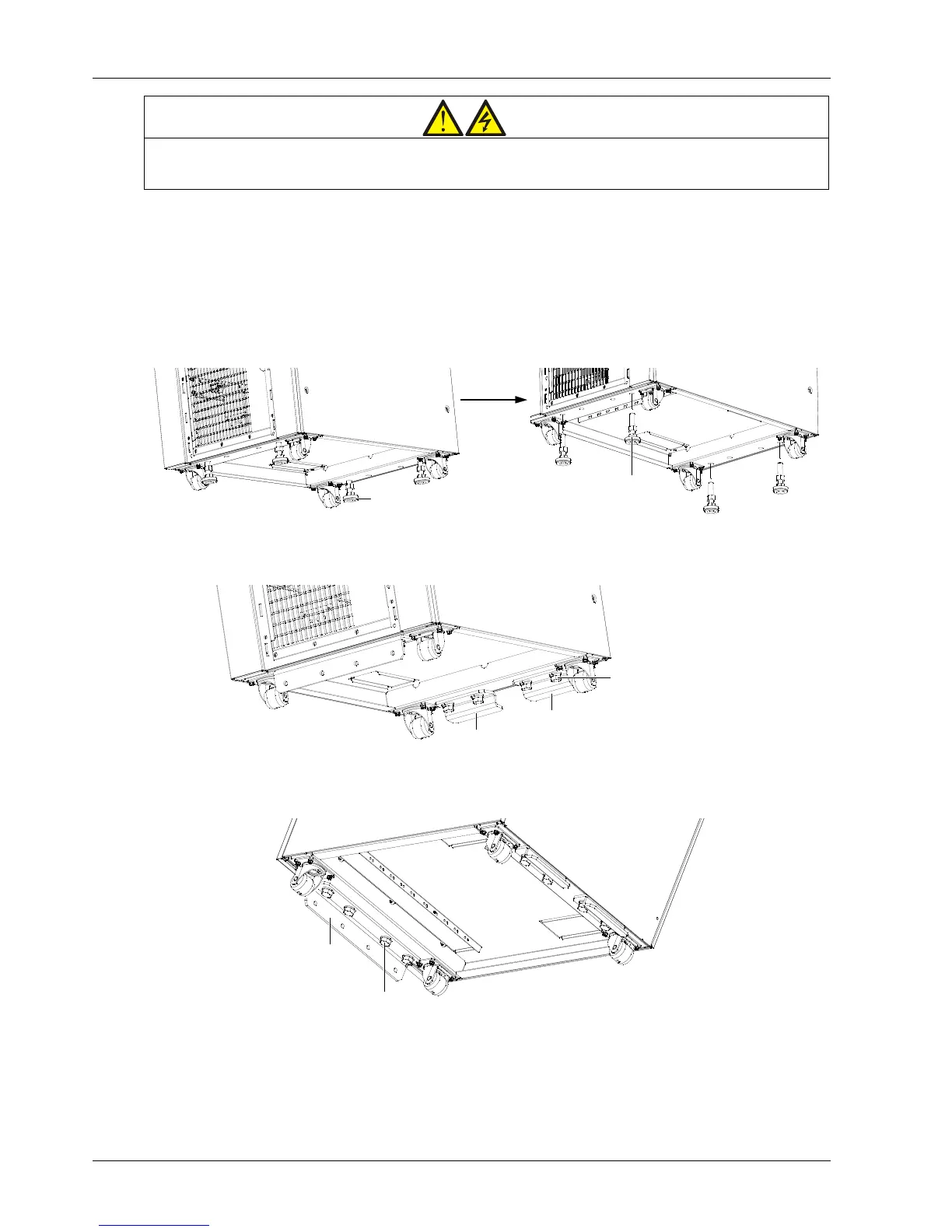

1. Lift up the UPS cabinet and remove the four adjustable feet on the bottom, as shown in Figure 8-9.
Figure 8-9 Removing adjustable feet
2. Use four M16 × 50 sems screws to install seismic anchor 1 and seismic anchor 2 on the rear bottom of the UPS
cabinet, as shown in Figure 8-10.
Figure 8-10 Installing seismic anchor 1 and seismic anchor 2
3. Use four M16 × 50 sems screws to install seismic anchor 3 on the front bottom of the UPS cabinet, as shown in
Figure 8-11; then carefully place the UPS cabinet on the ground.
Figure 8-11 Installing seismic anchor 3
4. As shown in Figure 8-12, use four M12 expansion bolts to fix seismic anchor 4 on the ground, then push the UPS
backward to insert seismic anchor 1 and seismic anchor 2 into the two holes of seismic anchor 4 respectively.
