ApexRp Operators Manual
49 248083480-1 Rev 3

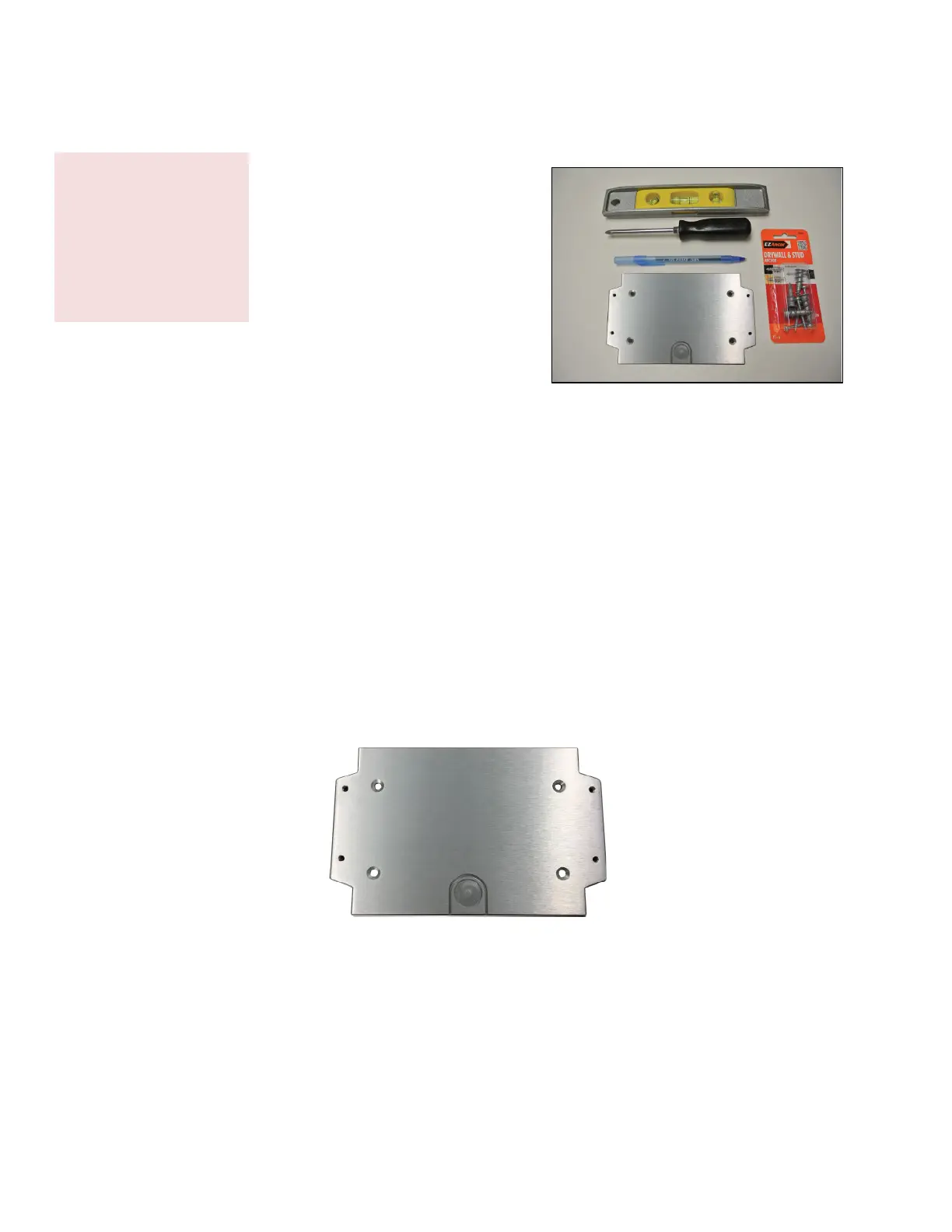

Figure 7-1 Required Tools and Hardware
1. Find a point close to
necessary connections, such
as network and AC power,
and where the instrument
can be easily
accessed by operators or
technical support personnel.
The power input connection
must allow safe and easy
manual disconnect of
power if needed.
2. If the optional Wall Bracket was not ordered, the body of the
ApexRp can be used as a template to mark the two mounting
holes. Make sure the instrument is level then use a pencil to mark
the center of the mounting holes. The distance between the holes
should be 5.75". Proceed to step 4.
3. If the Wall Bracket was ordered, use the Wall Bracket as a
template. Make sure it is level then use a pen or pencil to mark the
center of the mounting holes. The Wall Bracket has 3/16" holes
and has been designed to accept 3/16-24, #8 or #10 flat head
screws. See Figure 7-2.
Figure 7-2 Mark Location of Mounting Holes
4. Use the appropriate size drill bit and drill the holes as marked.
Install the anchors into the drilled holes.
sure target location is
electrically safe for
drilling. Wear safety
goggles while drilling.
To Next Page
