Lighthouse Worldwide Solutions ApexR3p - Power Consumption; Exhaust Port

ApexRp Operators Manual
248083480-1 Rev 3 52
Power Consumption:
The ApexRp has a connection for an external 24VDC supply. See
figure 7-8.
Exhaust Port
ApexRp uses an internal blower to provide a vacuum source. The
blower exhaust is HEPA filtered so as not to contaminate the
surrounding monitoring environment. See figure 7-8.

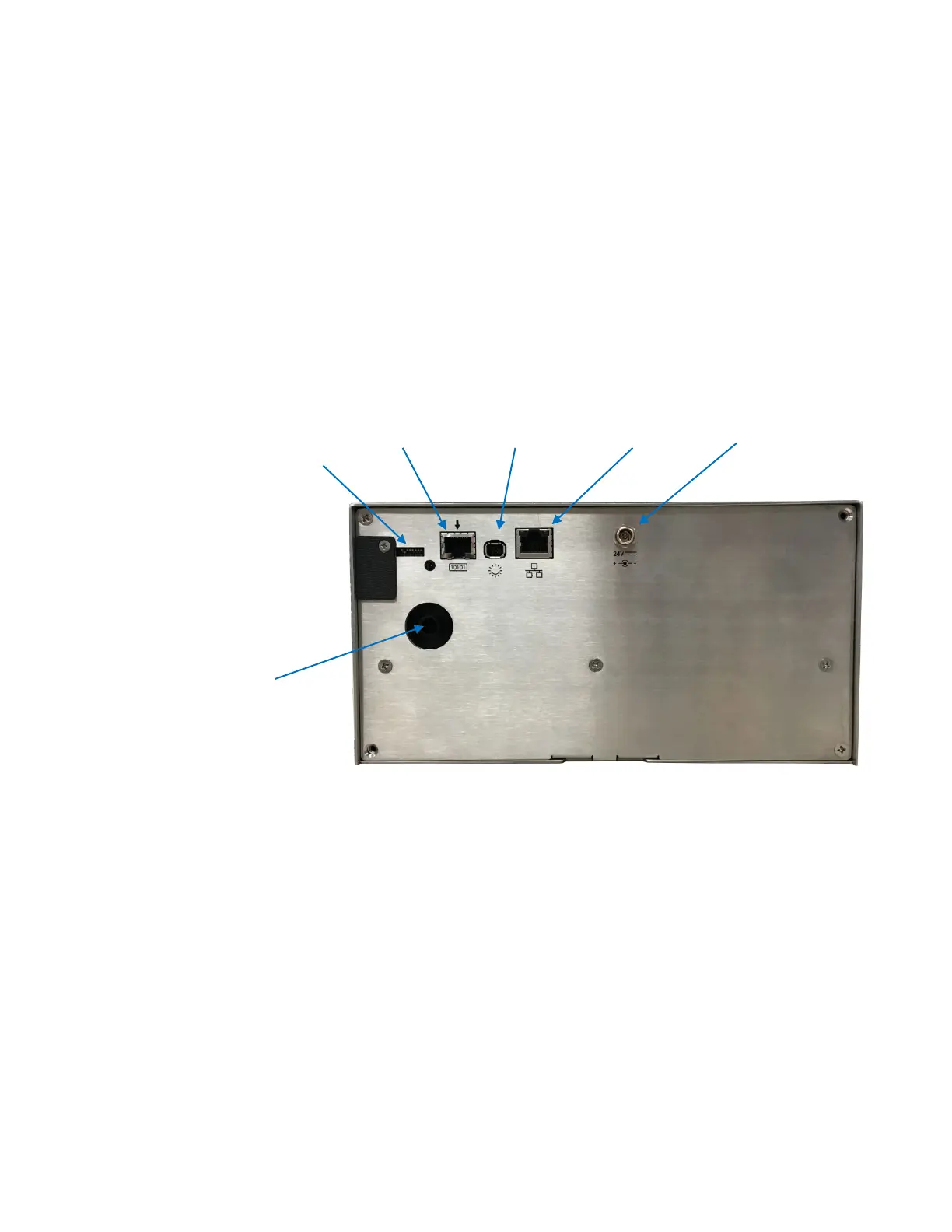

Figure 7-8 ApexRp Connections
DIP Switches
Switch 1 - 5
Serial Port
SmartPort
Ethernet Port
HEPA Filtered
Exhaust
(1 CFM models)
24 VDC Power Port
