ApexRp Operators Manual
51 248083480-1 Rev 3
Connections
The top of the instrument has one connection: the inlet nozzle for
sample input shown in Figure 7-6.

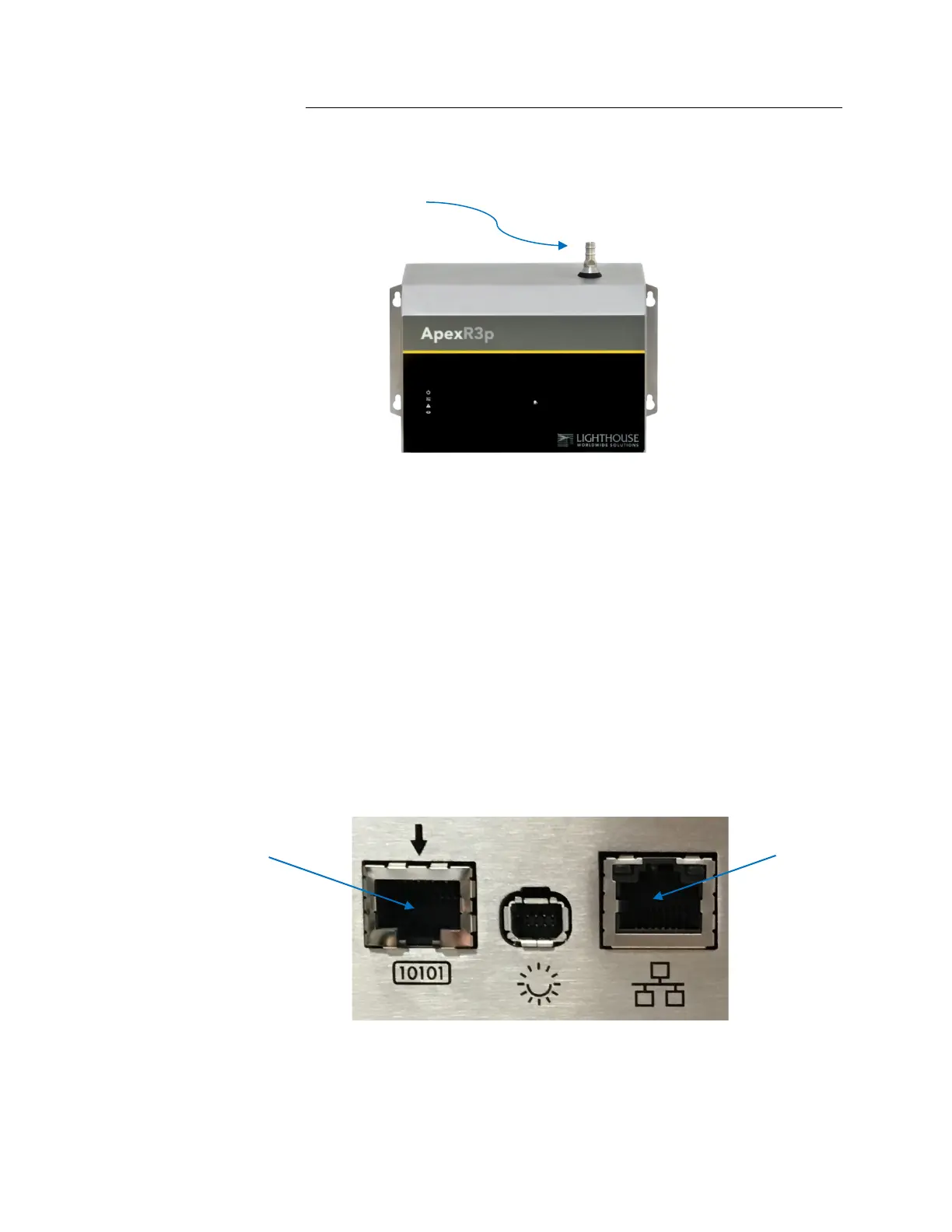

Figure 7-6 Connections on Top
The 1.0 CFM instruments (ApexR3p, ApexR5p) sensors can be used
with a 3/8” barbed inlet ISO probe attached via 3/8" ID tubing.
The 0.1 CFM instruments (ApexR02p, ApexR03p, ApexR05p) sensors
can be used with a 1/8” barbed inlet ISO probe attached via 1/8" ID
tubing.
The sum of exhaust tubing length plus inlet tubing length to ISO
kinetic probe may not exceed 10 feet, (3.0 meters).
Figure 7-7 shows both the Serial and Ethernet connections at the
bottom of the ApexRp.
Figure 7-7 Serial and Ethernet Instrument Connections
