6. Software Control – Lightware Device Controller Software MX-FR Series Modular Matrix Frames – User's Manual 88
DVI-OPT Type Output Port
Supported Boards:
▪ MX-DVI-OPT-OB-LC, -SC, -ST
▪ MX-DVIDL-OPT-OB-LC, -NT
▪ MX-DVI-OPT-OB-R-LC, -NT, -SC, -ST

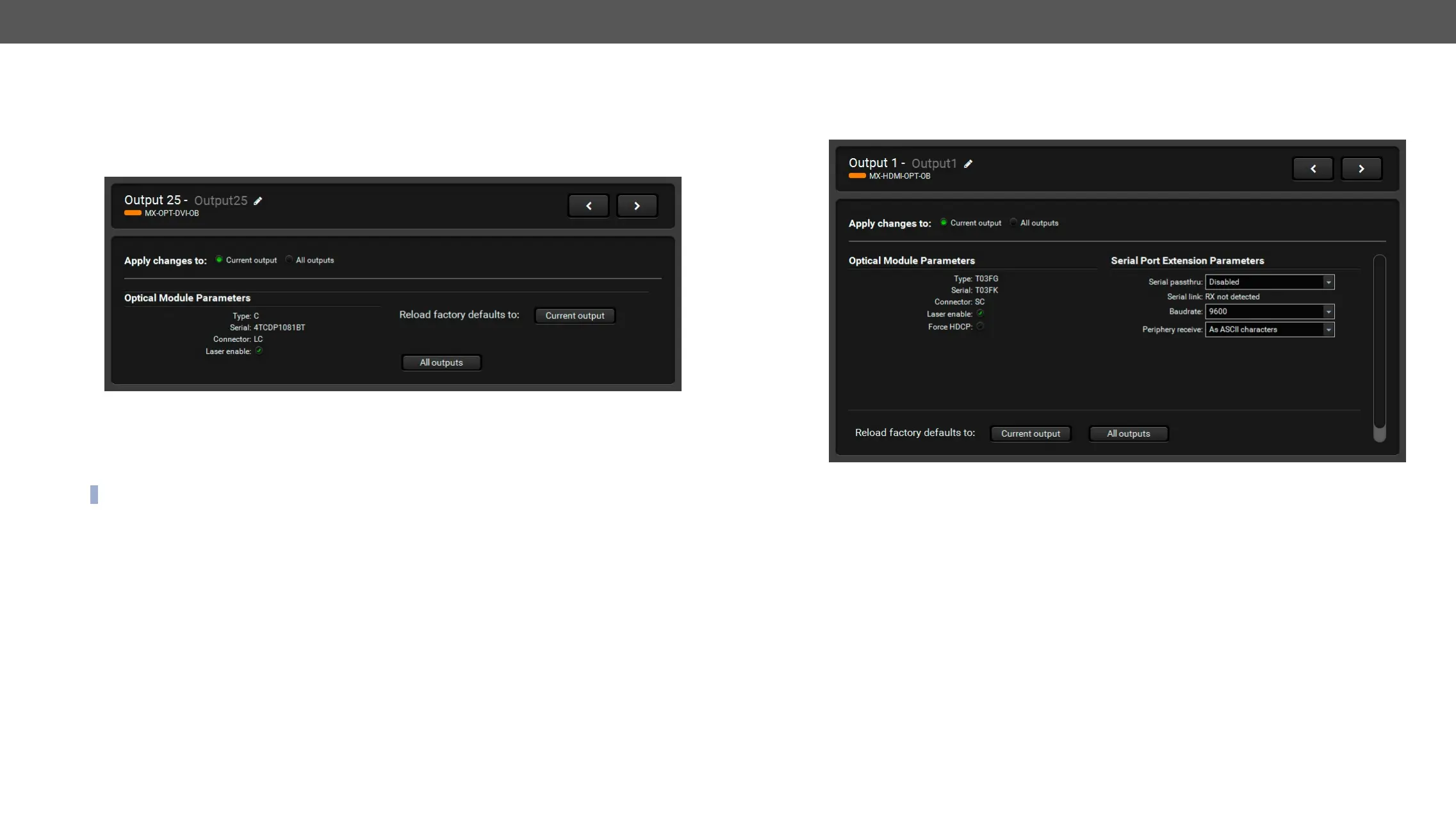

DVI-OPT Output Port Properties (MX-DVI-OPT-OB-LC)
Laser Enable
The optical module can be powered down with this setting. This can help prevent aging of the laser
transmitter. If the laser is disabled, then no signal transmission is available
INFO: The port properties window of MX-DVIDL-OPT-OB boards look the same as above.
Supported board:
▪ MX-HDMI-OPT-OB-LC, -NT, -SC
HDMI-OPT Type Output Port Properties (MX-HDMI-OPT-OB-SC)
Optical Module Parameters
board. The connector type can be: LC, SC, ST, and NT (Neutrik OpticalCON).
Laser Enable
The optical module can be powered down with this setting. This can help prevent aging of the laser
transmitter. If the laser is disabled, then no signal transmission is available.
