6. Software Control – Lightware Device Controller Software MX-FR Series Modular Matrix Frames – User's Manual 89
Supported Boards:
▪ MX-HDMI-OPT-OB-R-LC, -NT, -SC
Optical Module Parameters
board. The connector type can be: LC, SC, and NT.
Laser Enable
The optical module can be powered down with this setting. This can help prevent aging of the laser transmitter
and save lifetime. If the laser is disabled, then signal is not transmitted.

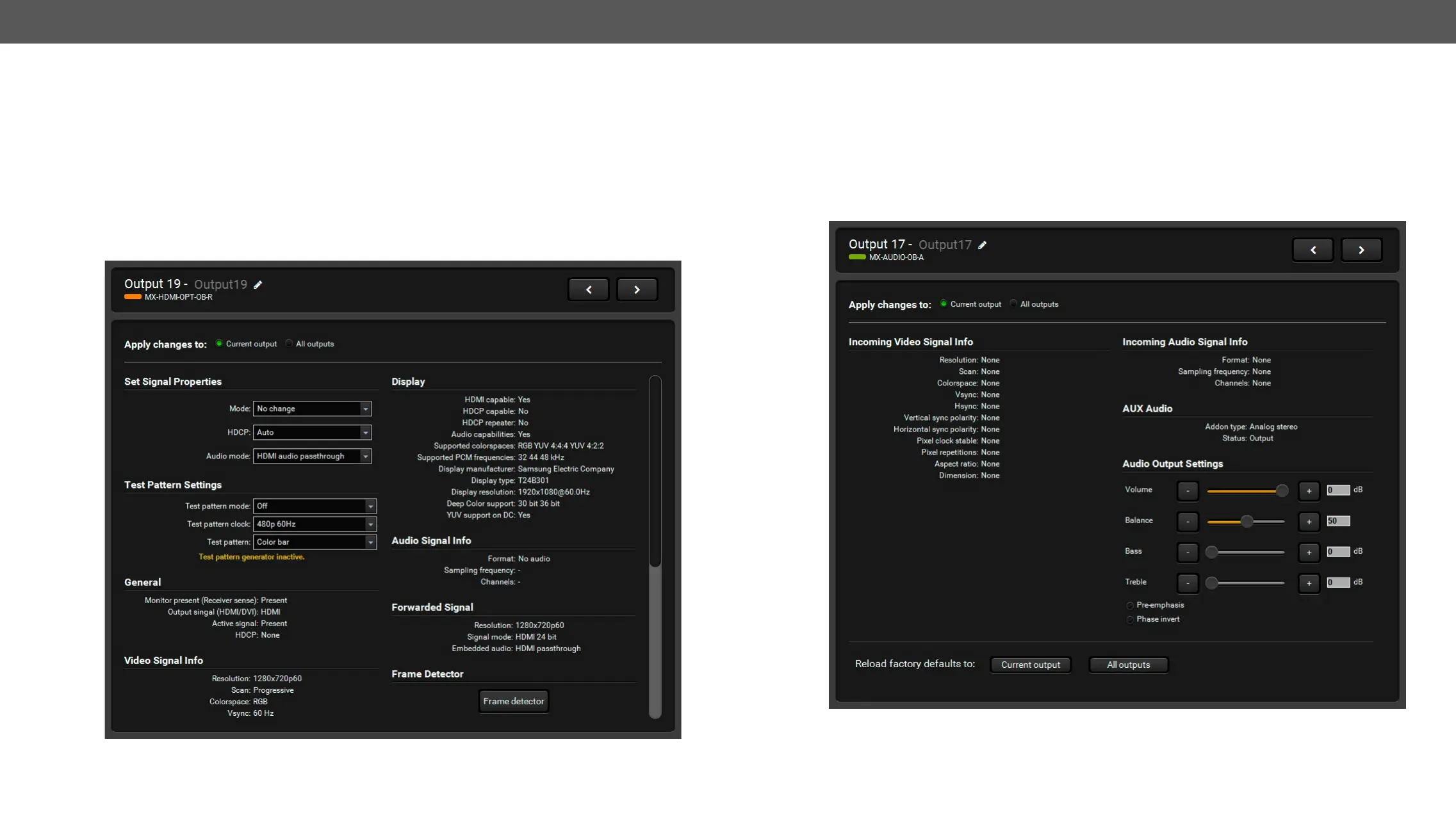

HDMI-OPT-R Type Output Port Properties (MX-HDMI-OPT-OB-R-SC)
Signal Properties
▪ The signal mode can be set to DVI, HDMI or No change mode.
▪ The HDCP encryption can be set to Auto or Always.
▪ The Audio mode can be set to HDMI audio passthrough or No audio.
Audio Type Output Port
Covered board:
▪ MX-AUDIO-OB-A #audio #analogaudio #volume
Audio Type Output Port (MX-AUDIO-OB-A)
Plain audio output boards forward audio signals only. The sliders allow to adjust the desired output levels.
