D9U001AM2-0101_06
25
If isolating foil is damaged, contact the manufacturer
’
s service department immediately
.
NOTE:
It is recommended to wear gloves when removing the isolating foil.

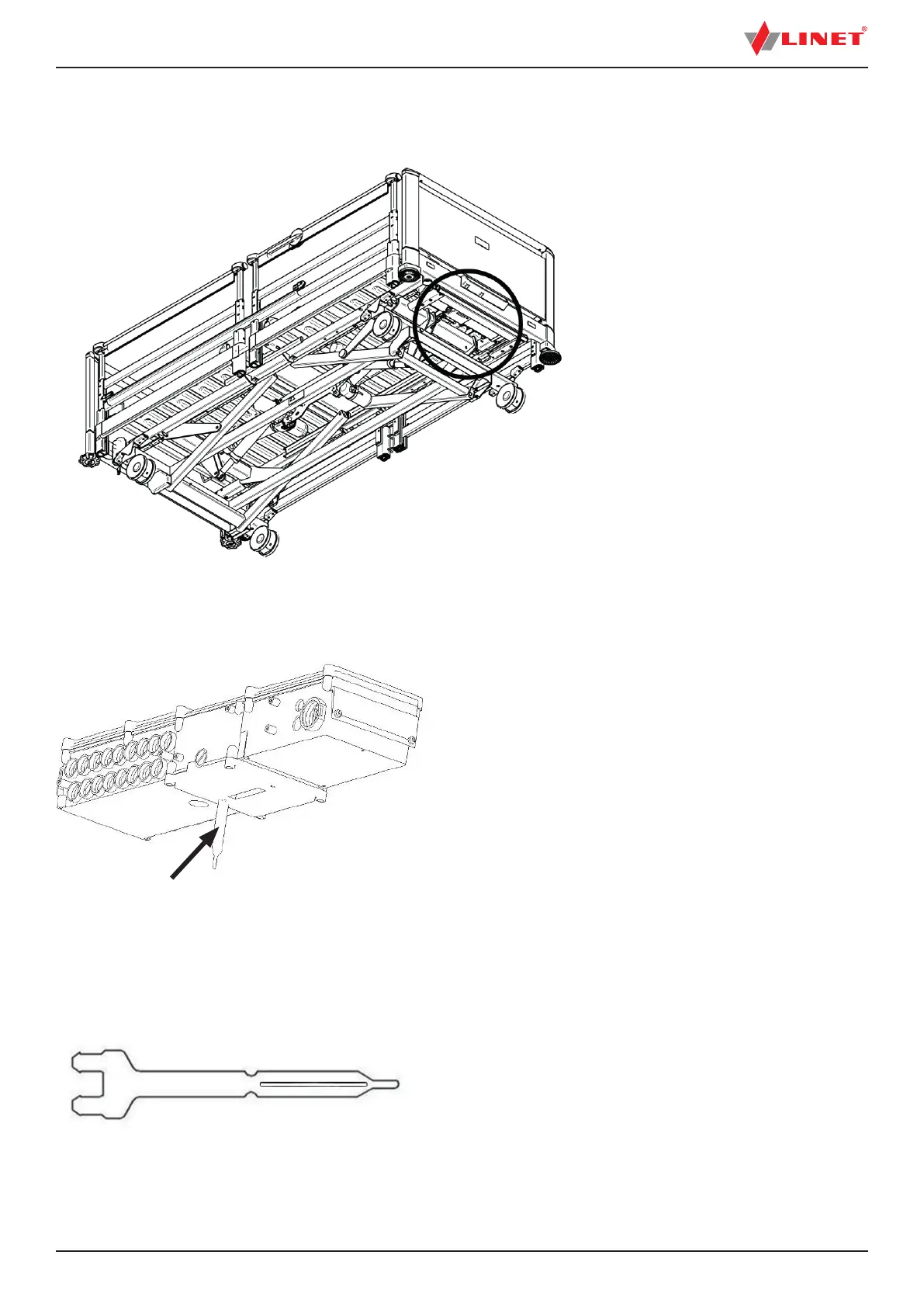

PULL
9.1
Accumulator Activation
9.1.1
Placement of Control Section
9.1.2
Removing the Isolating Foil
9.1.3
Isolating Foil
Check if isolating foil is complete and undamaged as shown:
24
26
Table of Contents
Table of Contents
3
Symbols and Definitions
4
Warning Notices
4
Types of Warning Notices
4
Structure of Warning Notices
4
Instructions
4
Lists
4
Symbols on the Package
5
Symbols and Labels on the Bed
6
Serial Label with UDI
9
Acoustic Signalisation
9
Visual Signalisation
10
Mains Power LED (Attendant Control Panel)
10
Accumulator Indicator (Attendant Control Panel)
10
Lock LED (Attendant Control Panel)
10
Night Bed Illumination
11
Definitions
12
Abbreviations
13
Safety Instructions
14
Intended Use
17
User Population
17
Contraindications
17
Operator
17
Incorrect Use
17
Product Description
18
Image 3 B (1AM2) - Single Collapsible Siderails and Powder Coated Head Board and Foot Board
18
Technical Specification
19
Applied Parts Type B
19
Mechanical Specification
19
Environment Conditions
19
Electrical Specifications
20
Electromagnetic Compatibility
20
Manufacturer Instructions - Electromagnetic Emissions
21
Manufacturer Instructions - Electromagnetic Susceptibility
21
Use and Storage Conditions
22
Scope of Delivery and Bed Variants
23
Scope of Delivery
23
Bed Variants
23
Standard Version: Image 3 B Model 1AM2
23
Putting into Service
24
Accumulator Activation
25
Placement of Control Section
25
Removing the Isolating Foil
25
Isolating Foil
25
Head Board and Foot Board
26
Aluminium Head Board and Foot Board
26
Powder Coated Head Board and Foot Board
27
Correct Orientation of Head Board and Foot Board
27
Mattress Support Platform
28
Potential Equalisation
29
Before Use
30
Transport
30
Firmware
30
Power Supply Cord (Mains Power Cable)
31
Accumulator
31
Status Faulty Accumulator
32
Status Discharged Accumulator
32
Removing the Bed from Service
32
Deactivating the Accumulator
33
Manipulation
33
ACP - Attendant Control Panel (Nurse Controller)
34
Central STOP Button
35
Activating GO Button
35
Function Buttons
35
Lock Buttons
35
Position Buttons
35
Handset
37
CPR Backrest Release
38
Siderails
39
Castor Control and Bed Transport
39
Bed with Castor Control Levers
39
Equipment
40
Accessory Rails
40
The Fifth Castor
40
Brake Signal - Signalization of Unbraked Bed
40
Mattress
40
Accessories
41
Lifting Pole
42
Infusion Stands
42
Siderails Extension - Extender
43
Image 3 B Protector
44
Cleaning/Disinfection
45
Safety Instructions for Cleaning and Disinfection of the Bed
46
General Instructions for Cleaning and Disinfection
46
Daily Cleaning
46
Cleaning before Changing Patients
46
Complete Cleaning / Cleaning before First Use
46
Cleaning of Spilled Fluids
46
Damaged Foam Mattress
46
Modes of Cleaning and Disinfection
47
Troubleshooting
48
Maintenance
49
Regular Maintenance
49
Spare Parts
49
Safety Technical Checks
49
Disposal
50
Environment Protection
50
Within Europe
50
Outside Europe
50
Warranty
