To move the bed:
► Adjust the bed height to at least 20cm below maximum height.
► Push the bed using handles on head board or foot board.
13 Equipment
13.1 Accessory Rails

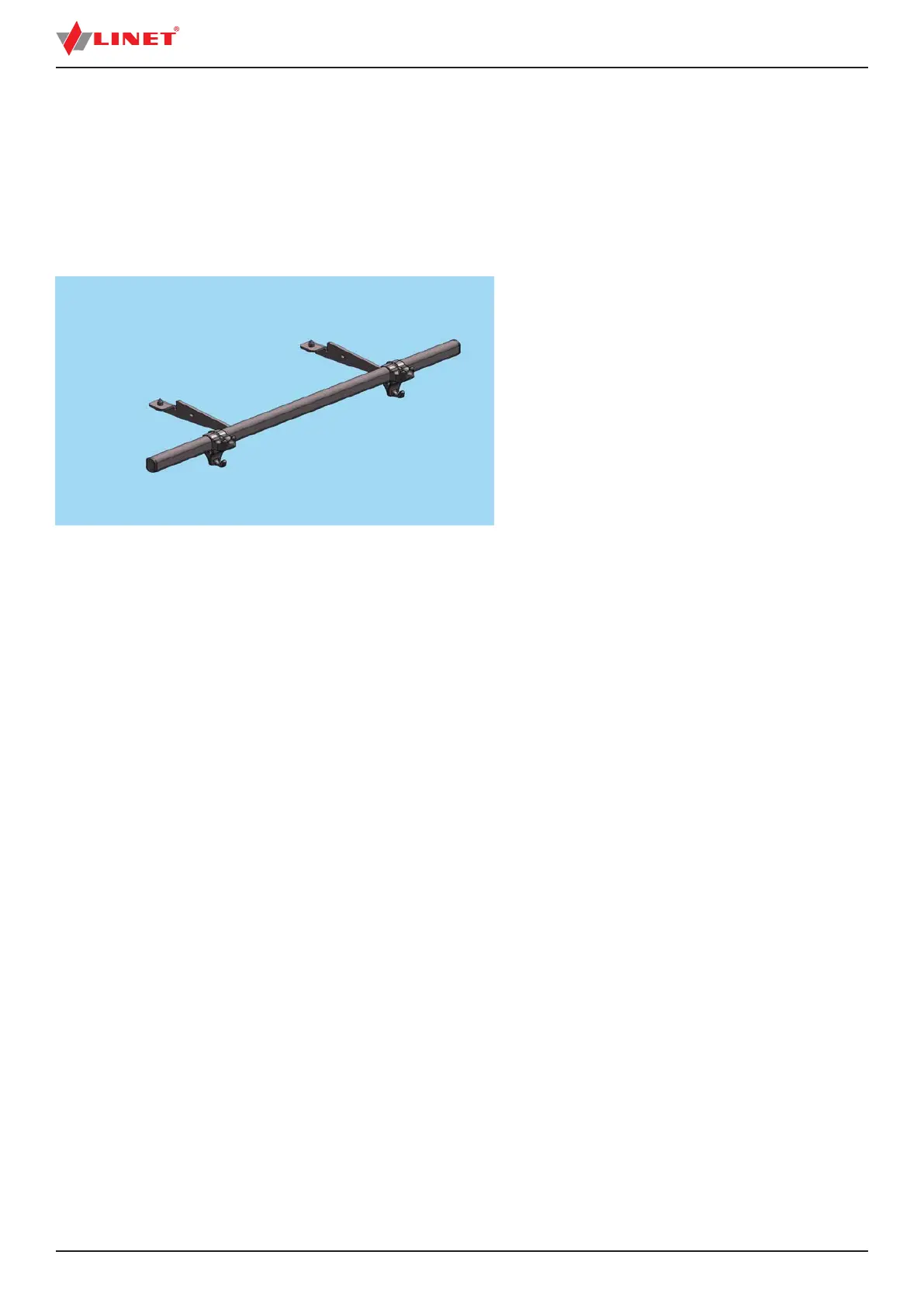

Fig. Accessory Rail
Load capacity:
► Maximum load of 5 kg without leverage.
► Maximum load of hook pair 10 kg.
Accessories for hanging on the accessory rail:
► Cannula holder
► Urinary bag holder
► Urinary bottle basket
► DIN steel bar
13.2 The Fifth Castor
The bed can be equipped with a 5th castor to make it easier to manoeuvre and control the bed. The standard locking castor will
automatically be excluded from the bed specication if the 5th castor is requested as this will replace the need for this function.
The control lever for the 5th castor is identical to the control lever for the braking system. To activate the 5th castor, press the foot
operated lever shown in Figure 14, position 1.
13.3 Brake Signal – Signalization of Unbraked Bed
It is possible to equip Image 3 B with signalization of unbraked bed. The signalization of unbraked bed signalizes, that bed is co-
nnected to the mains but is not braked. This status is signalized by acoustic signal. To shut down acoustic signal brake the bed or
unplug bed from the mains.
14 Mattress
The manufacturer recommends the use of the following mattress systems on the Image 3 B bed:
► EFFECTACARE 20+
► PRIMACARE 20 B
