LINET Image 3 B Instructions For Use And Technical Description

D9U001AM2-0101_0644
15.4 Image 3 B Protector®
WARNING!
Risk of injury due to patient falling out of bed!
► Ensure the Protector® is securely anchored to the housing.
► To check stability, push the Protector up without touching the release button.
► Always check that the siderail is properly locked.
WARNING!
Risk of damage to the bed or patient injury!
► Do not attach the head board or foot board to accessory housing (3).
► Do not use the Protector with bed extension.
► The Protector® can be used with powder coated head/foot board only.
The Protector® is not a component of the bed. The Protector® is an optional accessory.

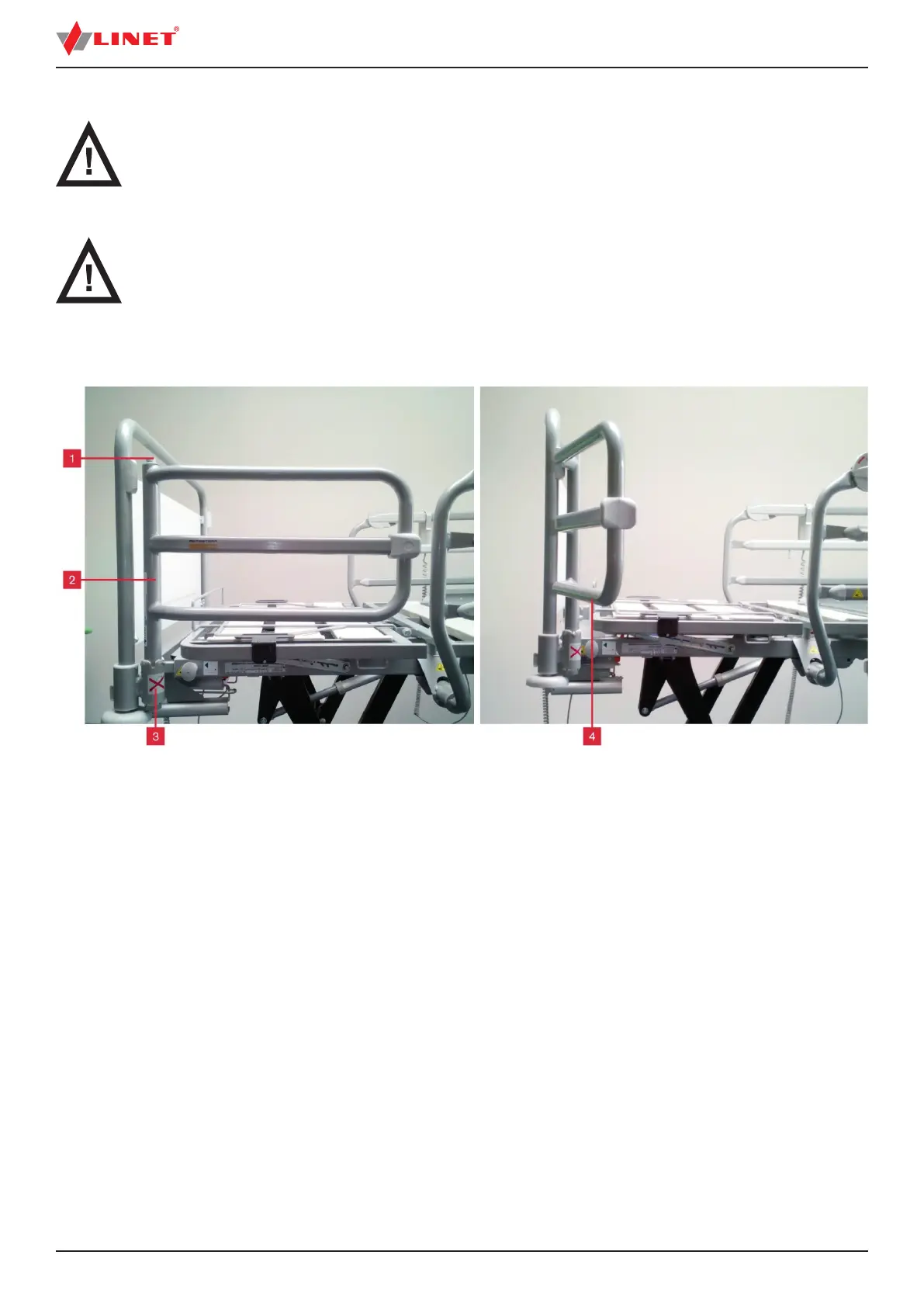

Fig. Closed Protector Fig. Open Protector
Mount the Protector in the closed position as follows:
► Put the tube of the Protector (2) into the housing near the foot of the bed (3), so that the Protector is facing the siderail.
► The safety pin must be locked in place.
Mount the Protector in the open position as follows:
► Put the tube of the Protector (2) into the housing near the foot of the bed (3), so that the Protector is facing out from bed.
► The safety pin must be locked in place.
Dismount the Protector as follows:
► Press and hold the release button (1).
► Push the Protector up.
