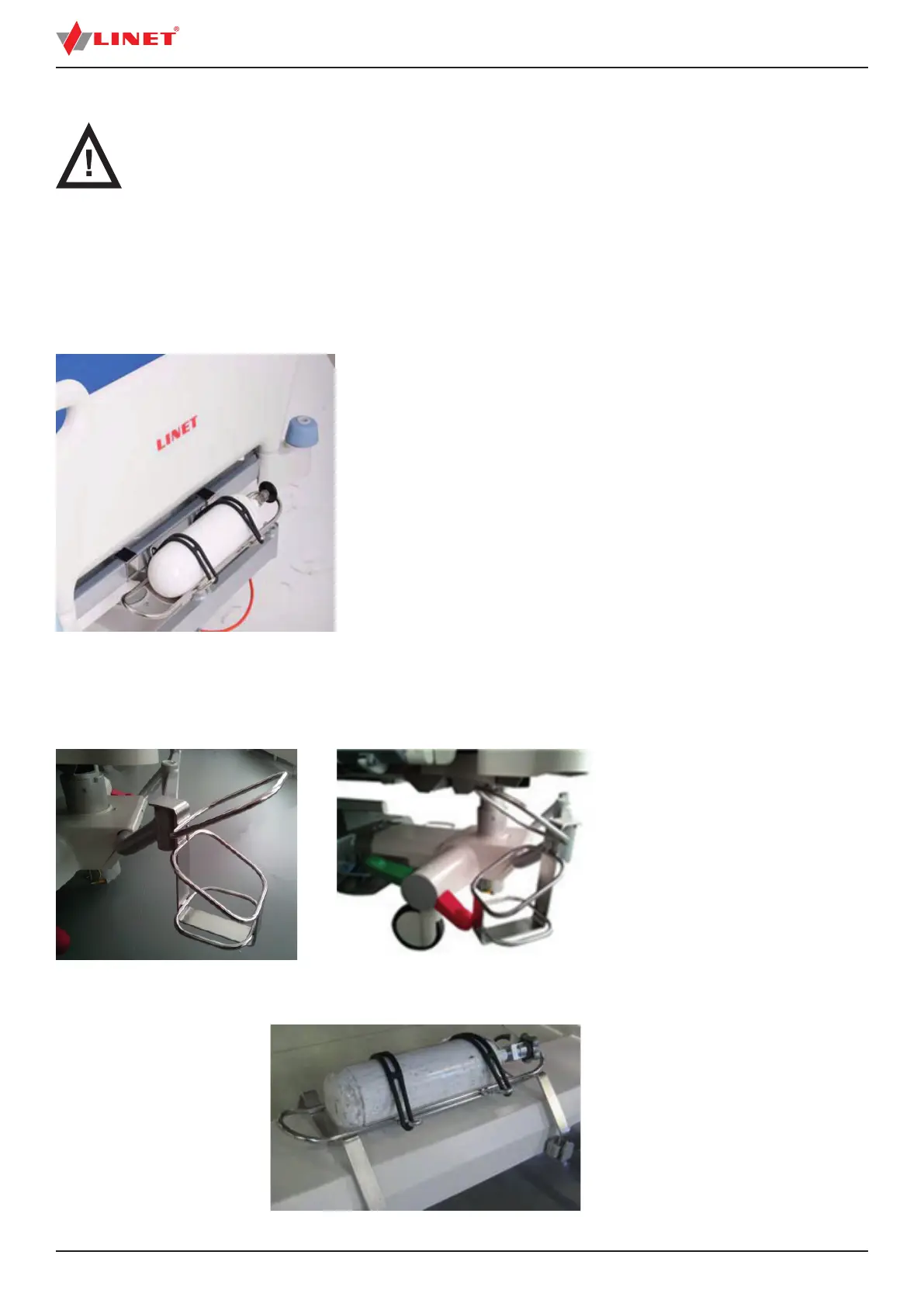

18.6 Oxygen Bottle Holders
WARNING!
Risk of injury with oxygen bottle holder due to incorrect use or due to careless driving!
► Ensure the oxygen bottle holder is correctly tted in correct position.
► It is necessary to place oxygen bottle holder (with or without O2 bottle) before transport to secure transport
position.
► Be aware of people or objects in close proximity when driving or manipulating the bed equipped with oxygen
bottle holder.
► Secure the oxygen bottles against falling or involuntary movement with rubber strap.
► Place the oxygen bottle holder on the bed by instructions in the following text.
► Ensure the oxygen bottle valve will not get damaged by careless or incorrect manipulation or placement.
The oxygen bottle holders are suitable for transporting oxygen bottles with a weight of up to 15 kg (33.07 lbs) and a volume of 5
litres.
Version A
► Put oxygen bottle holder on transversal pro le behind head end.
NOTE Using oxygen bottle holder 4MAR2010PC004 is not possible if the
bed is equipped with an additional adapter for a lifting pole.
Version B
► Put holder on sleeve ttings in multifunctional accessory adapter on chassis.
► Ensure the locking pin of oxygen bottle holder B is locked in sleeve tting.
Fig. Oxygen Bottle Holder B – correct
fi tment
Fig. Oxygen Bottle Holder B – incorrect fi tment
Version C
► Put oxygen bottle
holder on all 4 accessory
adapters on chassis.
Fig. Oxygen Bottle Holder C
Fig. Oxygen Bottle Holder A
