11.4 Undercarriage Cover
CAUTION!

► Do not place objects on the undercarriage cover outside storage space!
► Respect dimensions of objects placed in storage spaces of the undercarriage cover during lifting, lowering and
tilting of the bed!

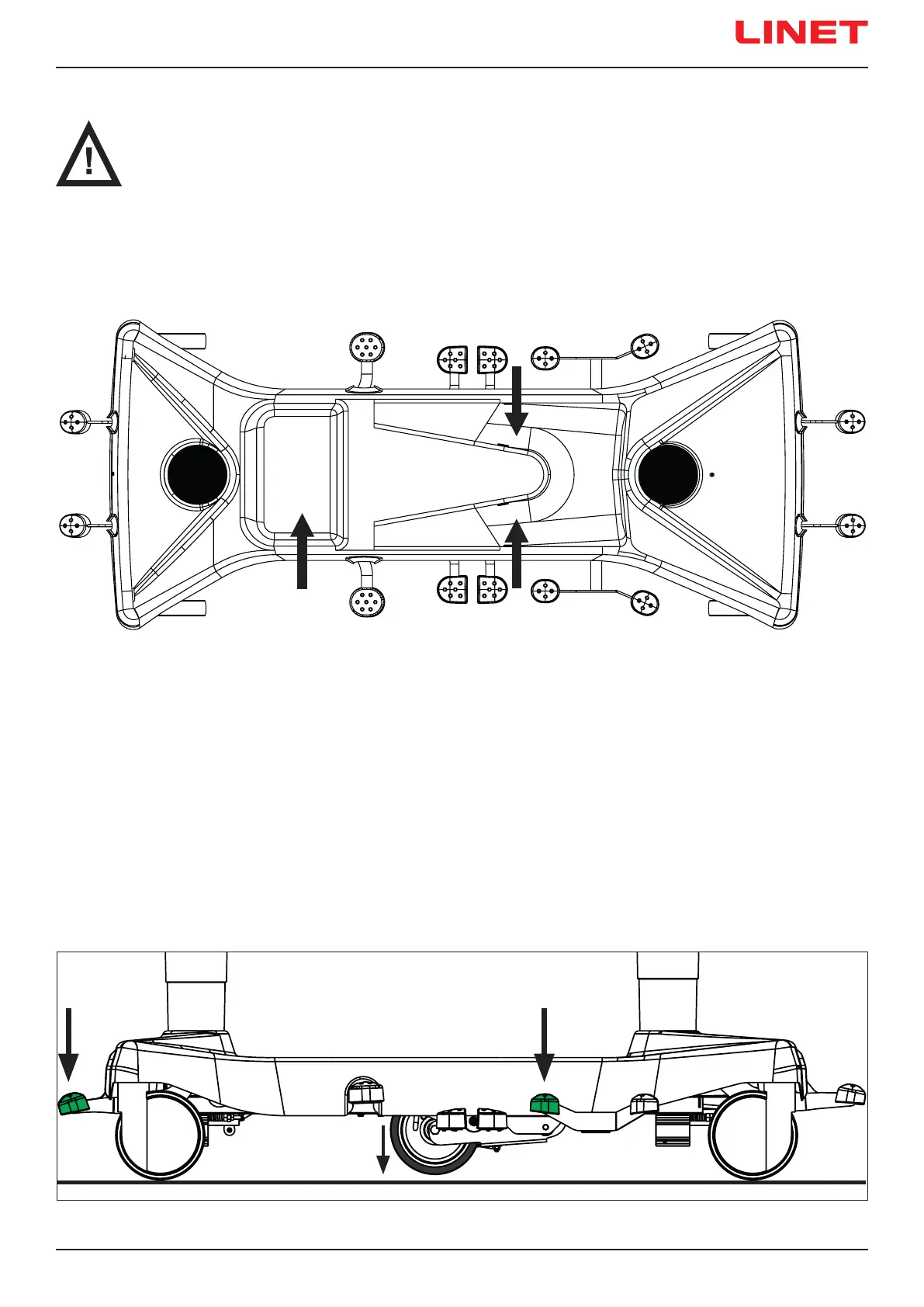

There are 2 types of storage spaces of the undercarriage cover. Longitudinal storage spaces (1) are intended for oxygen bottle
(with capacity 10 litres (type E only), 5 litres or less). Suitable oxygen bottle can be xed with quick-release strap. Rectangular
storage space (2) is intended for objects with maximum height of 25 cm.
Fig. Activation of Fifth castor
11.5 FlexiDrive (Sprung Retractable Fifth Castor)
During middle position of pedals Sprung Retractable Fifth Castor is around 12 mm above oor.
When bed is braked Sprung Retractable Fifth castor is around 65 mm above oor.
To activate the Fifth castor:
► Press green Drive pedal to the lower position.
To retract the Fifth castor:
► Leave all Brake pedals and Drive pedals unpressed in their middle position.
Fig. Storage spaces (Undercarriage Cover)
12
1
