13.7 Oxygen Bottle Holder
WARNING!
► Ensure the Oxygen Bottle Holder is correctly tted in correct position.
► It is necessary to place Oxygen Bottle Holder (with or without O2 bottle) before transport to secure transport
position.
► Be aware of people or objects in close proximity when driving or manipulating the bed equipped with Oxygen
Bottle Holder.
► Secure the oxygen bottles against falling or involuntary movement with rubber strap.
► Place the Oxygen Bottle Holder on the bed by following instructions.
► Ensure the oxygen bottle valve will not get damaged by careless or incorrect manipulation or placement.
Oxygen Bottle Holder is intended for transporting oxygen bottles with a weight of up to 15 kg and a volume of 5 litres.
Oxygen Bottle Holder with adapter is located at head end on the left.

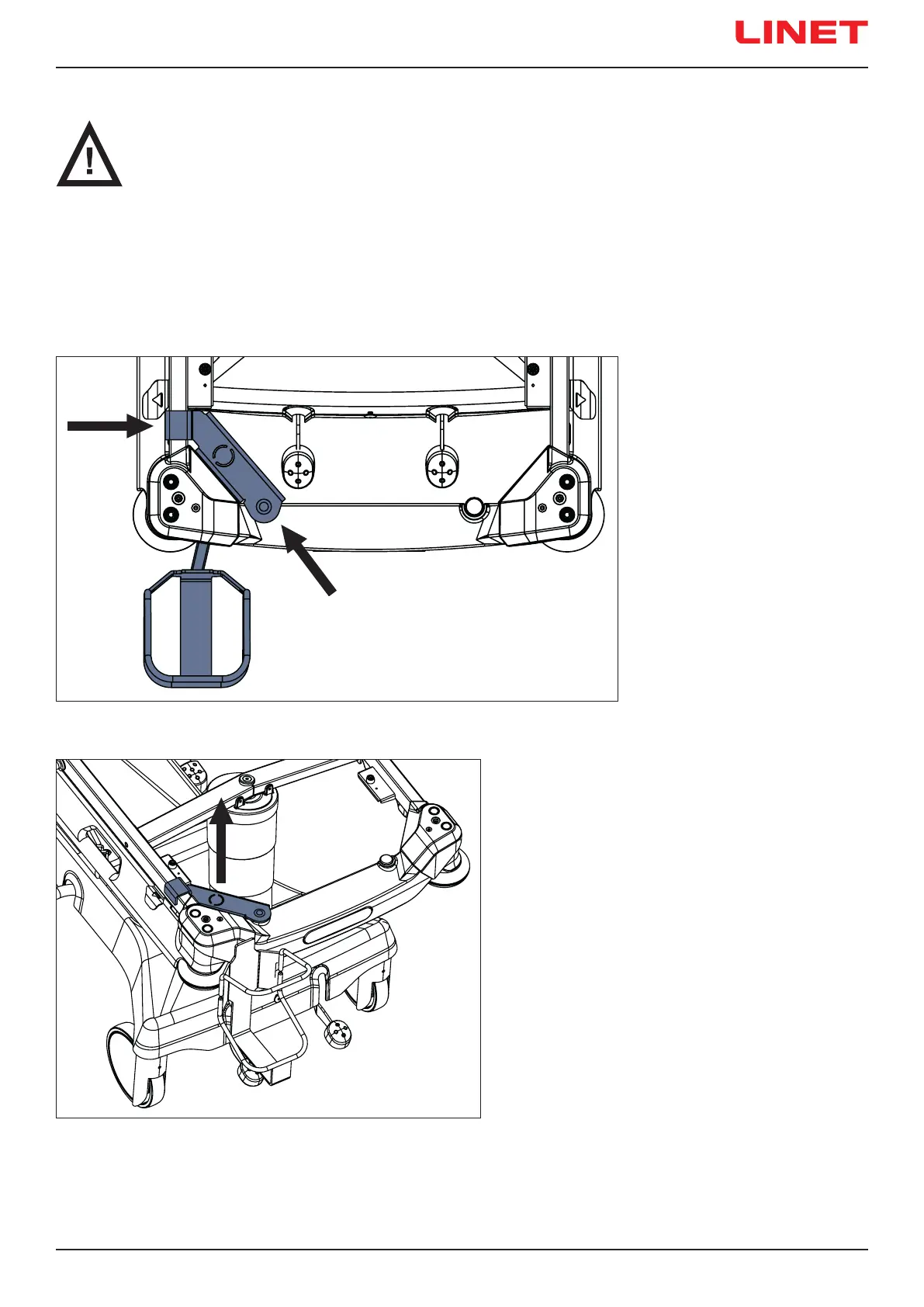

Fig. Placement of Oxygen Bottle Holder (head end)
Fig. Removal of Oxygen Bottle Holder
To place the Oxygen Bottle Hol-
der:
► Lift the Backrest.
► Place Oxygen Bottle Holder with
adapter to designated positions
on the frame of Mattress Support
Platform.
To remove the Oxygen Bottle Holder:
► Lift the Backrest.
► Lift the part of Oxygen Bottle Holder which is attached
to the frame of Mattress Support Platform.
► Lift the rest of Oxygen Bottle Holder through the frame
of Mattress Support Platform.
To adjust position of the Oxygen Bottle Holder:
► Move Oxygen Bottle Holder to intended position.
