Mattress Support Platform Covers are x-ray translucent. The Sprint 100 with 2-part Mattress Support Platform can be equipped with
an X-Ray Cassette Holder which can be inserted under the Backrest or under the Foot section. The Sprint 100 with 4-part Mattress
Support Platform can be equipped with an X-Ray Cassette Holder which can be inserted just under the Backrest. This accessory
allows taking x-ray images of the patient´s body parts without moving the patient manually. This procedure is above all suitable for
patients who cannot be moved due to critical conditions (e. g. internal bleeding) or unstable patients. There are two types of the X-
-Ray Cassette Holder which are compatible with Sprint 100 (Adjustable X-Ray Cassette Holder and Fixed X-Ray Cassette Holder).
The Adjustable X-Ray Cassette Holder and the Fixed X-Ray Cassette Holder are compatible with Sprint 100 with 2-part Mattress
Support Platform and with Sprint 100 with 4-part Mattress Support Platform.

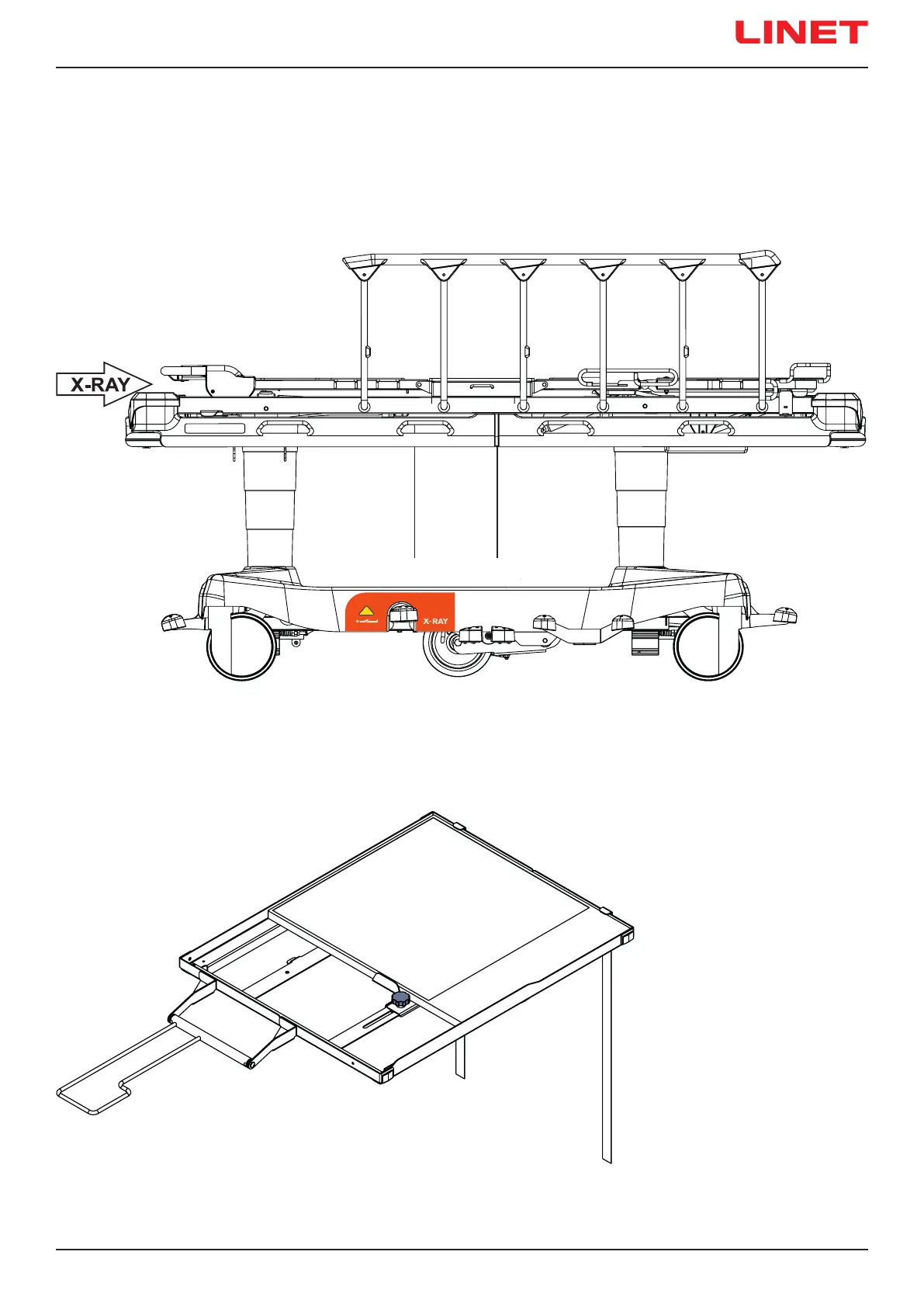

Fig. Adjustable X-Ray Cassette Holder
Fig. Sprint 100 with 4-part Mattress Support Platform (equipped with X-Ray Cassette Holder)
Adjustable X-Ray Cassette
Holder
This X-Ray Cassette Holder can
be adjusted for the x-ray ca-
ssettes with length from 30 cm to
47 cm.
To adjust this X-Ray Cassette
Holder for a length of suitable
x-ray cassette:
► adjust the Adjusting element
(2) by turning.
1. X-ray cassette
2. Adjusting element
-
-Ray Cassette Holder ends
1
1
2 3
3
2
3. Label indicating the bed is intended for X-Ray Examination
