Linksys SLM224G2

Chapter 5
Advanced Configuration
12
24-Port 10/100 + 2-Port 10/100/1000 Gigabit Advanced Smart Switch with 2 Combo SFPs
Sec The seconds is entered here.
Use Browser Time This option allows you to set time by
using the local host’s time settings.
Time Zone
Time Zone Set the time zone by selecting it from the
drop-down menu.
Enable Daylight Saving Enable daylight saving time by
checking the check box. Then set USA, Europe, or Custom
daylight saving time by clicking the appropriate option.
SNTP Server
Use SNTP Server This option allows you to set time
based on SNTP server.
IP Address Set the IP address of the SNTP server.
Polling Interval The value entered here determines the
interval between each time the Switch contacts the SNTP
server for an update.
Last Connection Status Displays the connection status
with the SNTP server.
Click Save Settings to save the changes.
Port Management
Port functionality can be controlled using the Port
Management settings. Speeds, duplex, and grouping can
be defined.
Port Management > Port Settings
You can manually configure the speed, duplex mode, and
flow control used on specific ports, or use autonegotiation
to detect the connection settings used by the attached
device. Use the full-duplex mode on ports whenever
possible to double the throughput of switch connections.
Flow control should also be enabled to control network
traffic during periods of congestion and prevent the loss
of packets when port buffer thresholds are exceeded. The
Switch supports flow control based on the IEEE 802.3x
standard.
The Port Settings screen displays the current connection
status, including the link status, speed duplex mode, and
flow control.
•

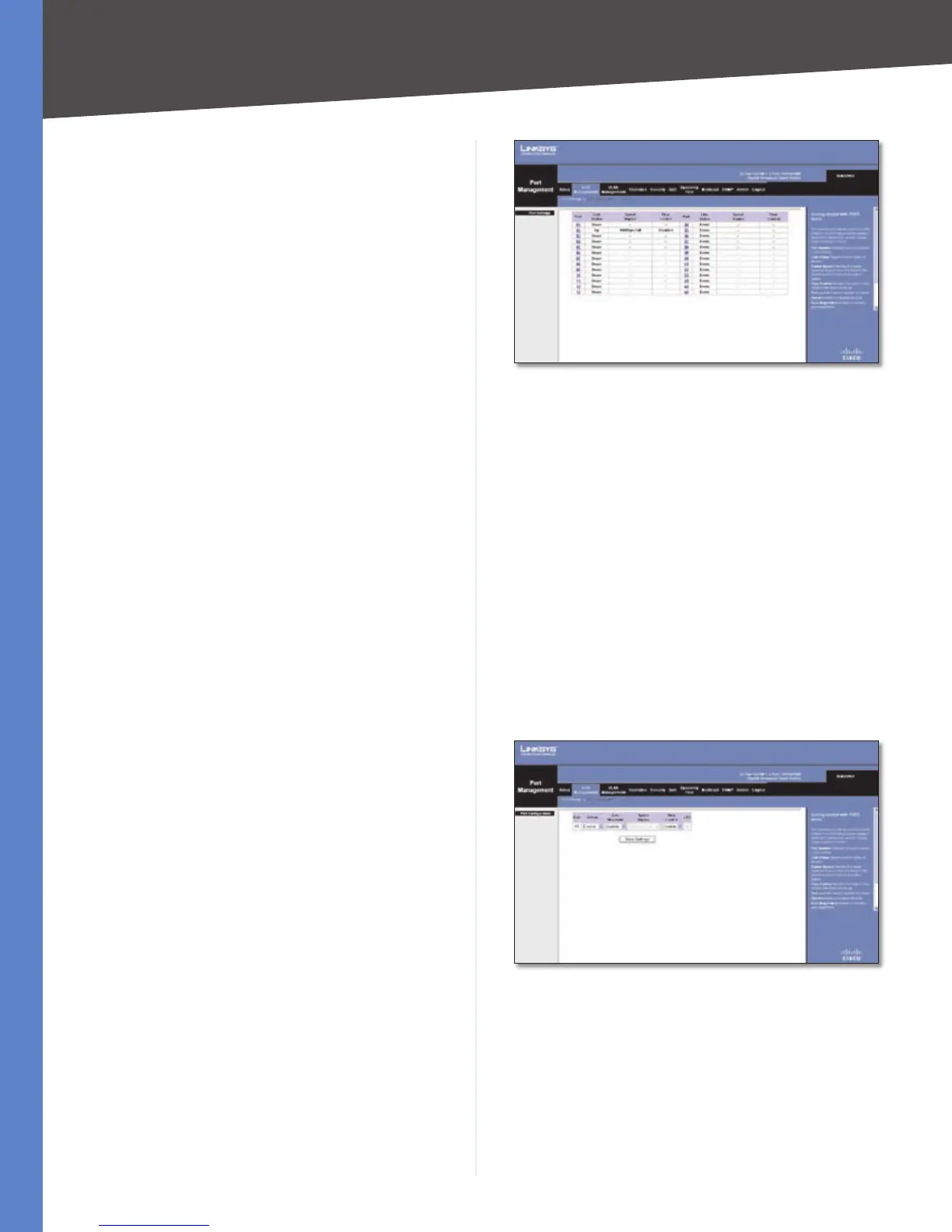

Port Management > Port Settings
Port Displays the port number. Click the appropriate port
number to configure the desired port.
Link Status Displays the link status of the port.
Speed Duplex Displays the current speed and duplex
mode of the port.
Flow Control Indicates the type of flow control currently
in use.
Click on the port number to open the Port Configuration
screen for the desired port.
Port Configuration
The Port Configuration screen allows you to enable/disable
an interface, set and interface capability advertisements,
or manually force the speed, duplex mode, and flow
control.
Port Management > Port Settings > Port Configuration
Medium This option is only available on the Gigabit ports
(G1 and G2). It allows you to select the type of medium
connected to the port.
Admin This option allows you to enable or disable the
specific port.
Autonegotiate Enables or disables autonegotiation.
When autonegotiation is enabled, you do not need to
specify the capabilities that will be advertised. When
