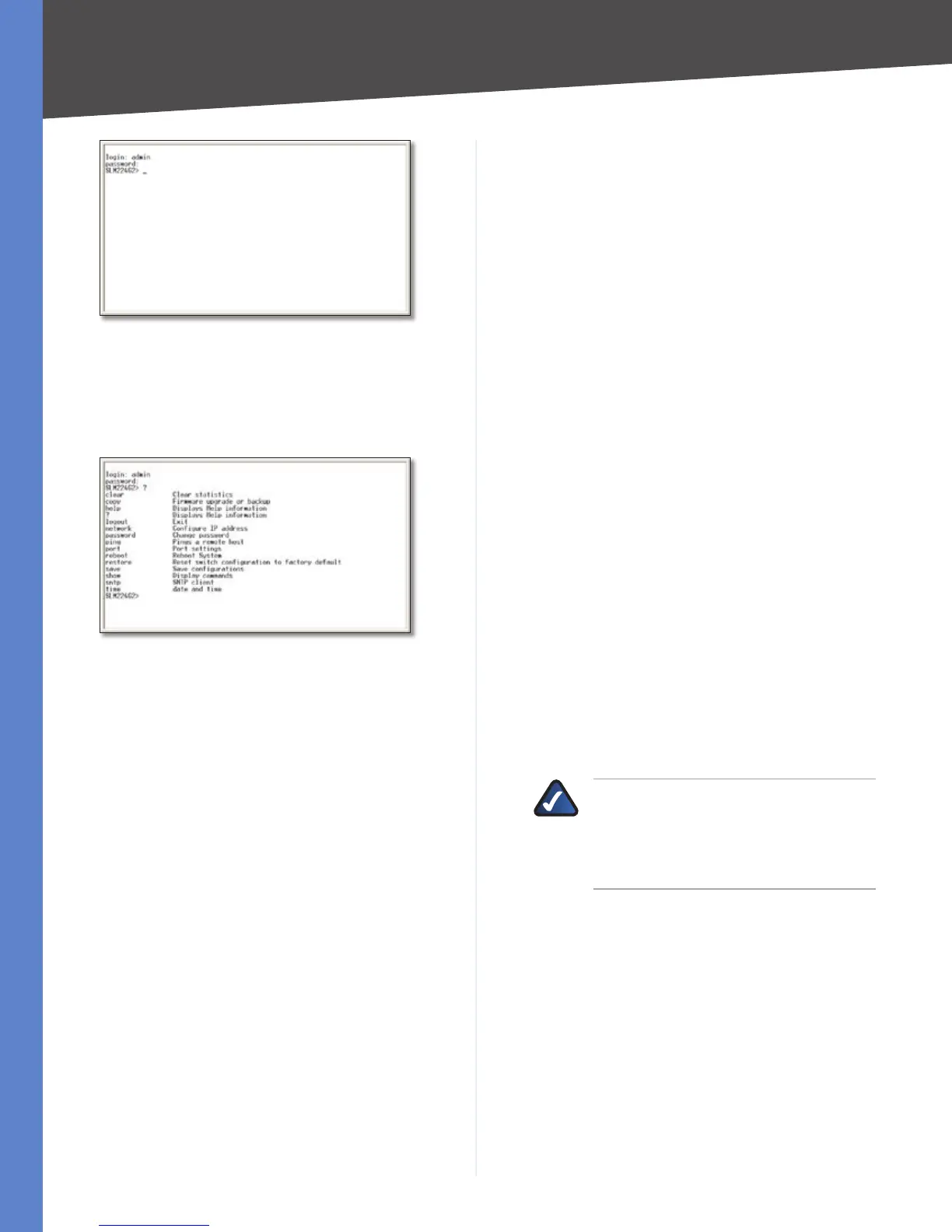

Console Command Prompt
Configuring the Switch through the Console
Interface
Enter help or ? to get the list of command options.
Console Command Options
Clear Clears all port statistics.
Syntax: clear port statistics [<port#> | all]
Copy Upgrade or backup the firmware and configuration
file.
To upgrade the firmware:
Syntax: copy [tftp://<ipaddr>/<srcfile>] flash
To backup the firmware:
Syntax: copy firmware [tftp://<ipaddr>/<dstfile>]
To upgrade the switch with an existing configuration
file:
Syntax: copy [tftp://<ipaddr>/<srcfile>] startup-
config
To back up the current configurations:
Syntax: copy running-config [tftp://<ipaddr>/
<dstfile>]
Help Displays Help information.
? Displays Help information.
Logout Exits the Telnet session.
Network The following commands configure the IP
configuration and management VLAN of the Switch:
Network Configure the static IP address information:
Syntax: network <ip_address> <subnet_mask>
<gateway>
DHCP Enable or disable DHCP client for the Switch’s
IP configuration:
Syntax: network dhcp [enable | disable]
Mgmt-VLAN Configure the Management VLAN:
Syntax: network mgmt-vlan <vid>
Password Change the admin password. You will be
prompted to enter the old password, a new password, and
to confirm the new password.
Ping Ping a remote host. Enter the Host IP Address of the
device you want to ping:
Syntax: ping <host>
Port Port Settings.
Admin Configure port admin mode:
Syntax: port admin [<port#> | all] [enable | disable]
Flowcontrol Configure port flow control:
Syntax: port flowcontrol [<port#> | all] [enable |
disable]
Mode Configure port speed/duplex:
Syntax: port mode [<port#> | all] [10hd | 10fd |
100hd | 100fd | 1000fd | auto]
Configure Gigaport medium and speed/duplex mode:
Syntax: port mode [g1|g2] [fiber|copper] [<100fd|1
000fd>|<10hd|10fd|100hd|100fd|auto>]
NOTE: When you select fiber, the options for
speed/duplex mode are 100fd or 1000fd.
When you select copper, the options for
speed/duplex mode are 10hd, 10fd, 100hd,
100fd, and autonegotiation.
Reboot Reboots the system.
Restore Reset the Switch configuration to the factory
default settings.
Syntax: restore system
Save Saves the configuration.
Show The following commands associated with show:
Port Displays the status of a specific port or all ports.
Syntax: show port [<port#> | all]
Network Displays the Switch’s MAC address, IP
address, netmask, gateway, and management VLAN.
Syntax: show network
