Rev:11.08.19 Page 152 CCD-0001573-08

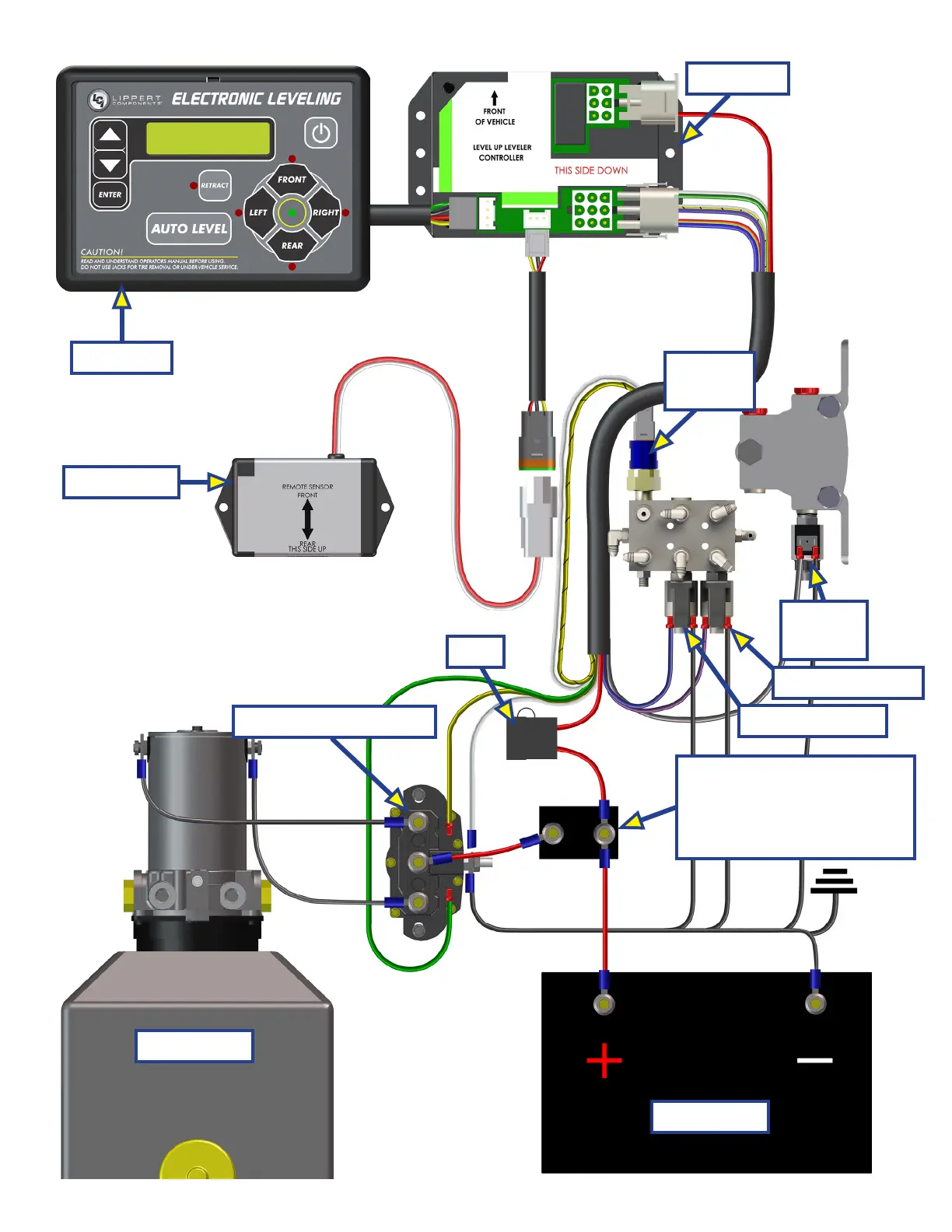

4-Point Wiring Diagram

Controller

Touchpad

Rear Sensor

Pressure

Switch

Dual Polarity Solenoid

Power Unit

Battery

Circuit Protection

requirement is 50-100 A as

needed by RVIA standards

and OEM requirements.

Fuse

Curb Side Valve

Road Side Valve

Landing

Gear
